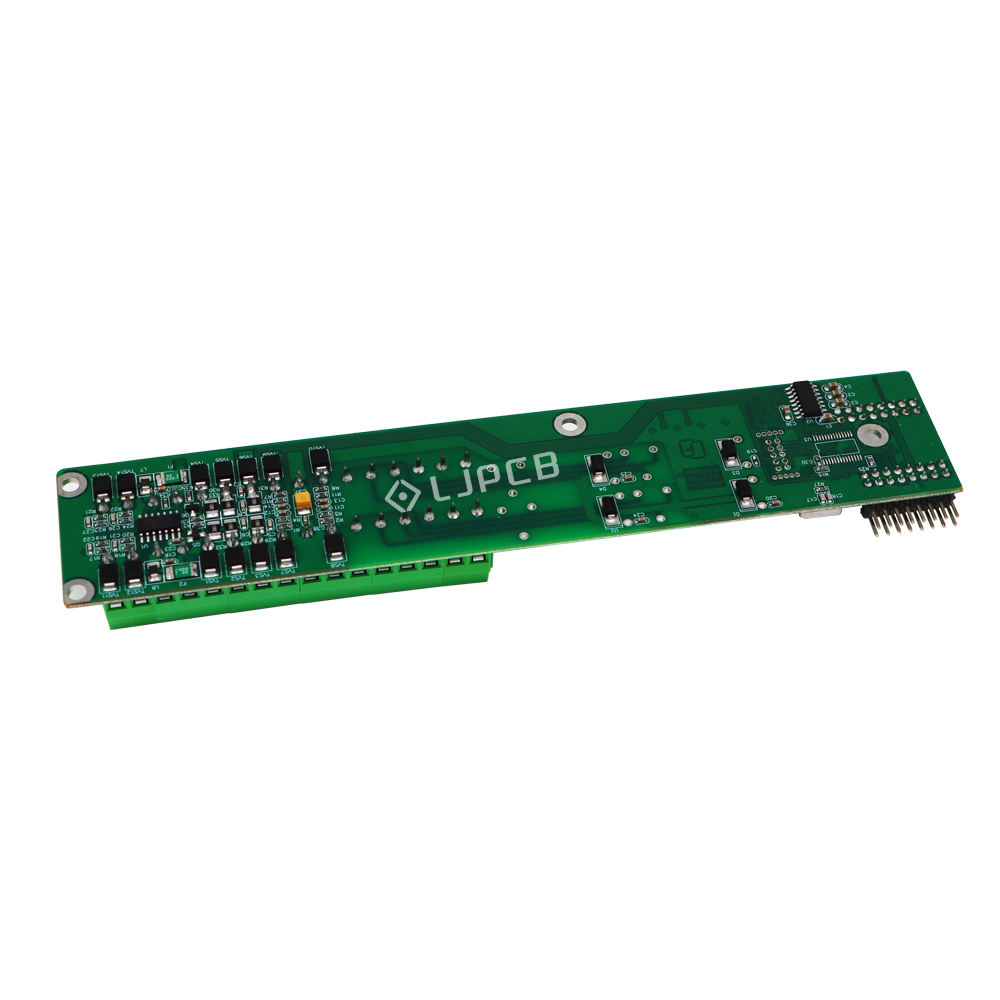

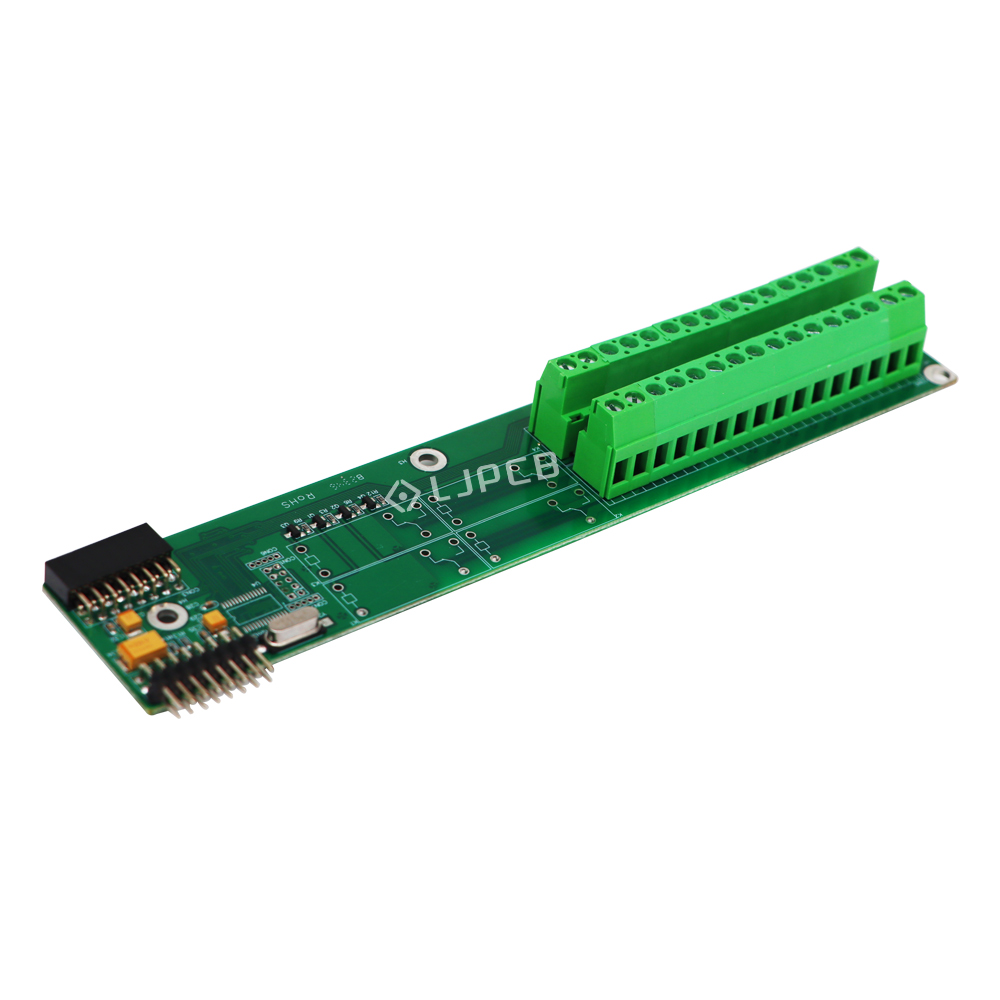

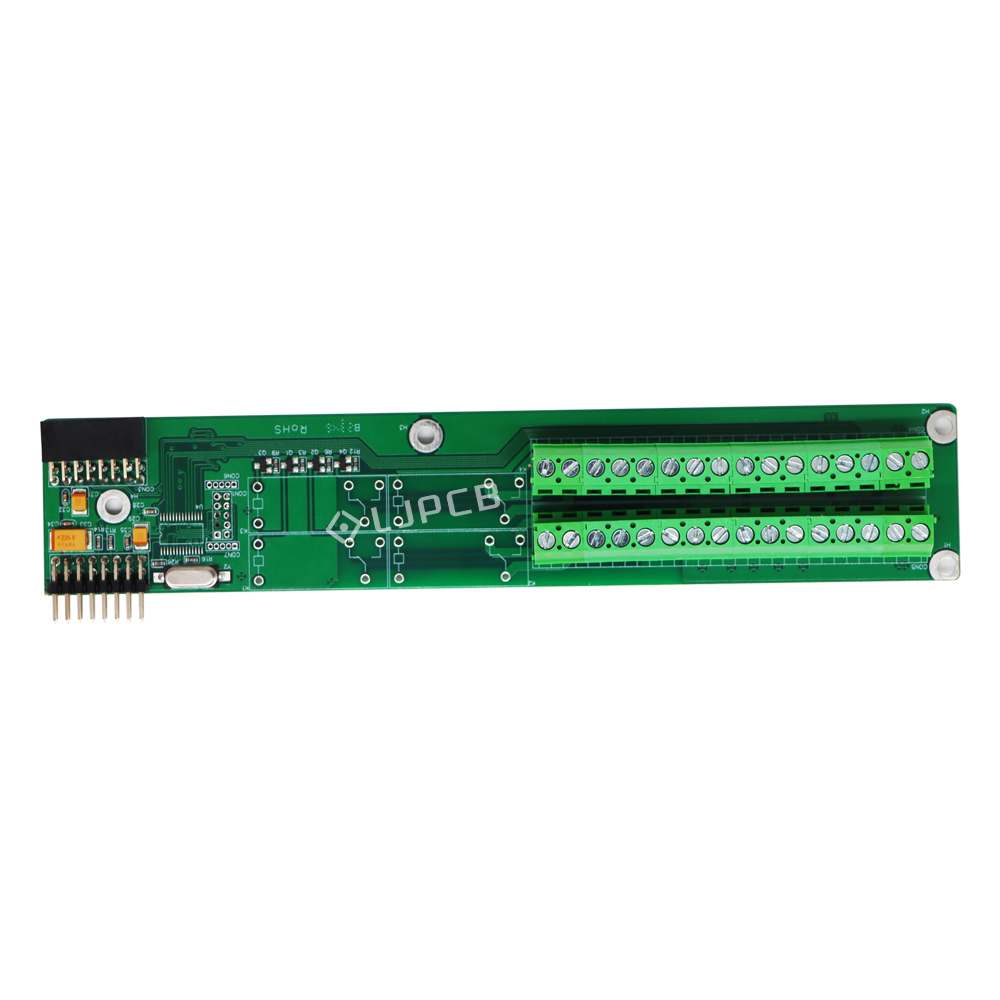

Description: This industrial I/O interface expansion board is designed to provide multiple input and output channels for industrial automation and equipment control systems. The board features multiple screw terminal blocks for field wiring and dedicated connectors for communication with the main controller or other functional modules. Its compact, elongated design allows flexible installation inside industrial control cabinets and equipment.The PCBA can be used for signal acquisition, actuator control, sensor interfacing, and multi-channel equipment I/O expansion, providing reliable electrical connections between the main control system and field devices. LJPCB provides one-stop PCB manufacturing and PCBA services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions for industrial automation and control equipment.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR4 TG130 | Test | Flying Probe Test |
| Routed OutLine/Punching | CNC+V Cut | Single Size | 189.94*36.88mm |
