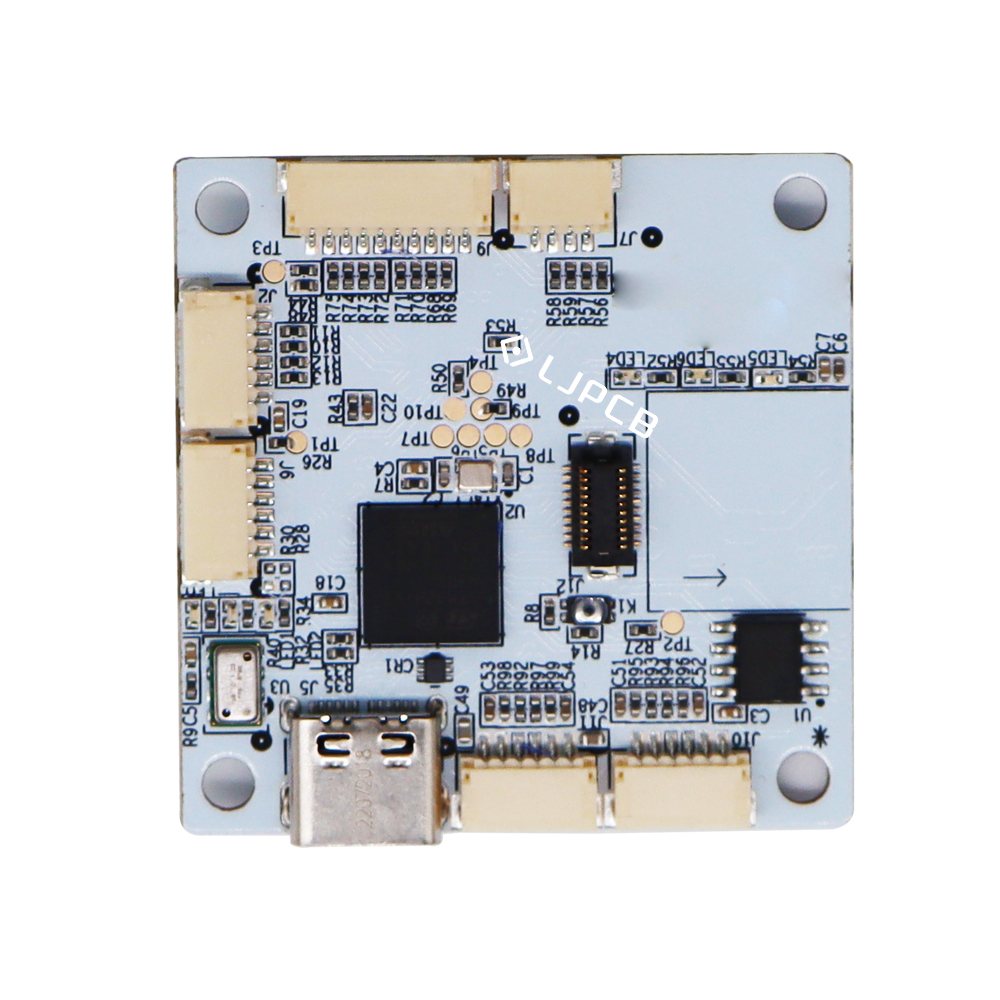

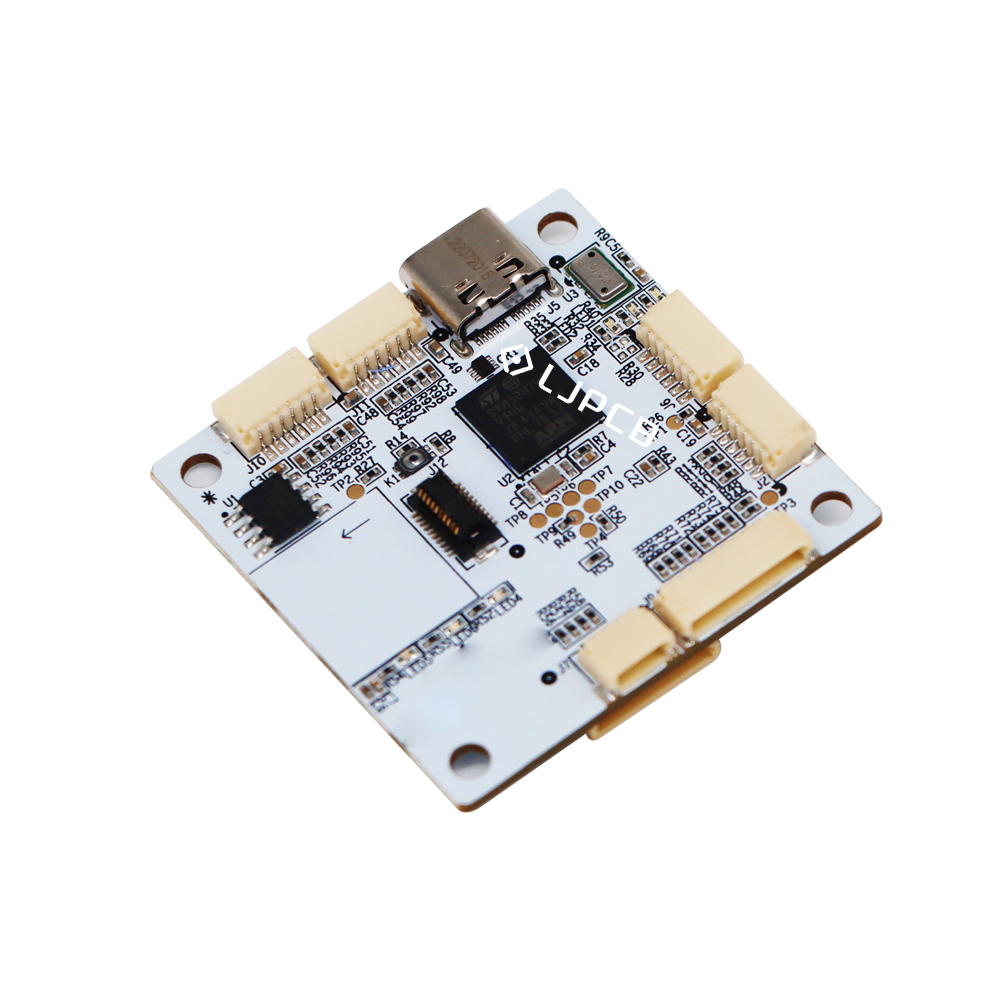

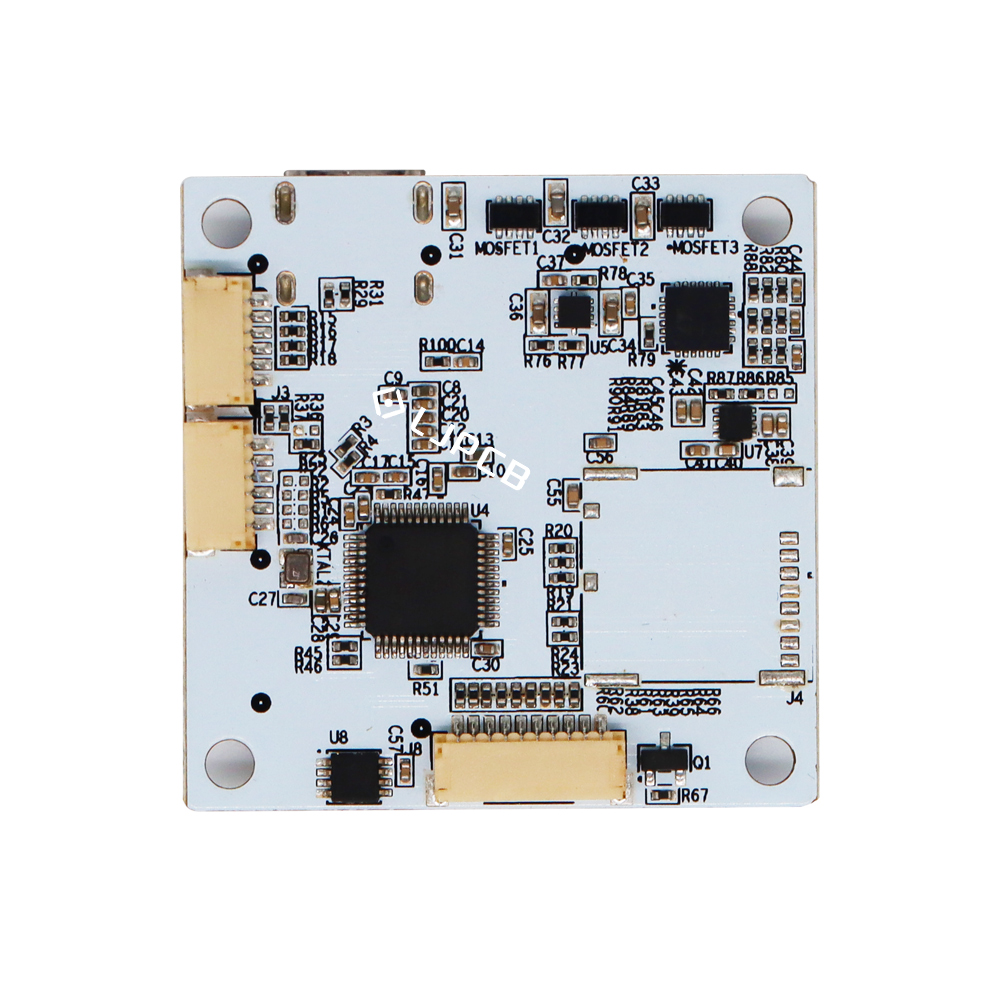

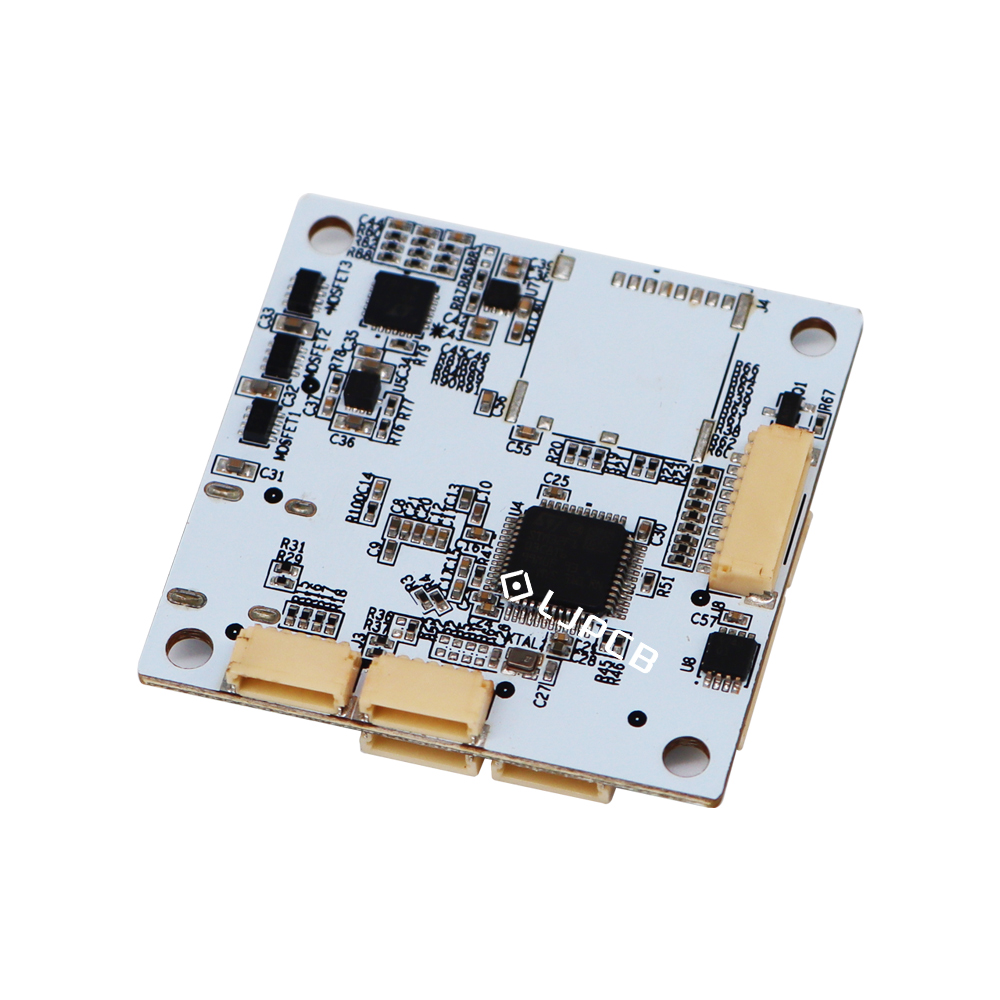

Description: This Intelligent Robot Motor Module Control Board is designed for precise motor control and intelligent motion management in robotic systems. It integrates a high-performance MCU, MOSFET power switching devices, motor drive circuits, power management, signal processing, and multiple interfaces for communication with motors, sensors, and the main control system. The compact design supports reliable operation within robotic joints, actuators, and other motion-control modules. LJPCB provides one-stop PCB manufacturing and PCB Assembly services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.

Layer	6L	Material Thickness	1.2mm
Process	ENIG 1u	Finished Copper Thickness	1oz
Solder Mask	White	Legend Mark	Black
Material	FR-4 TG130	Test	Flying Probe Test
Routed Outline/Punching	CNC	Size	40*40mm
