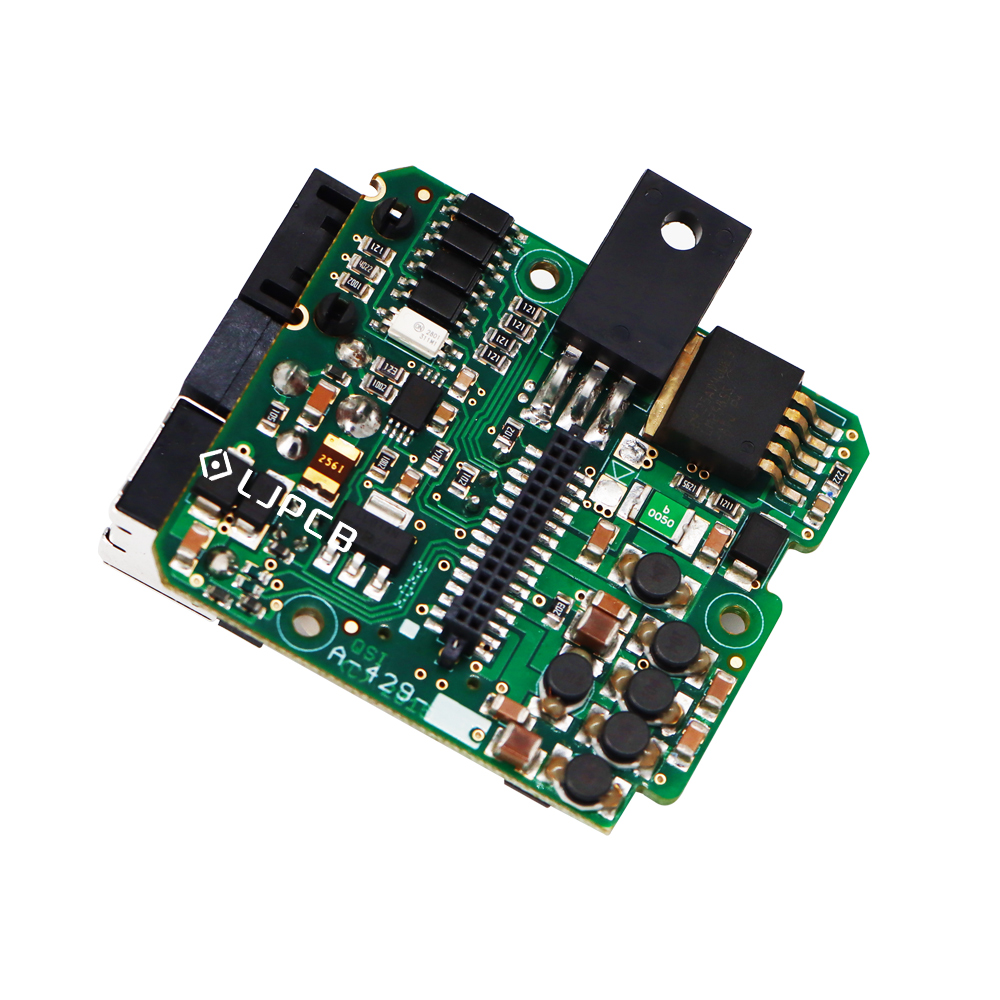

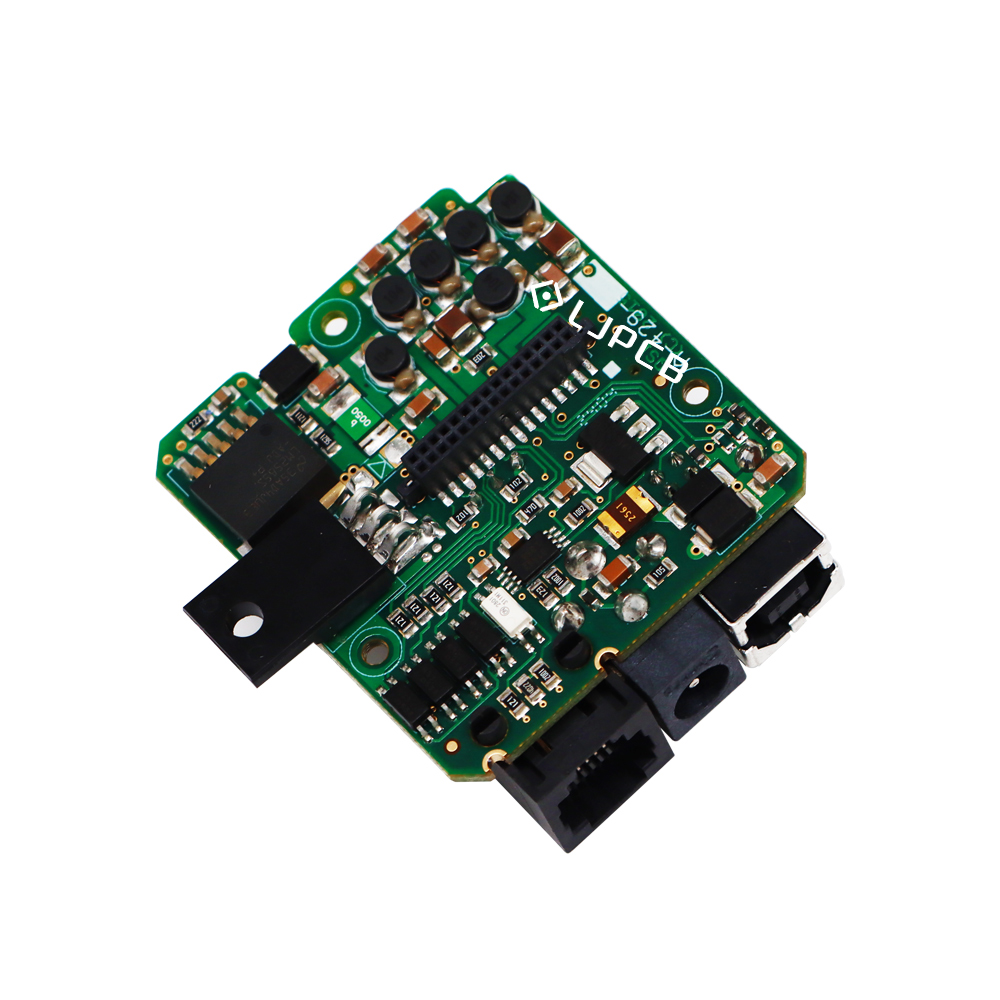

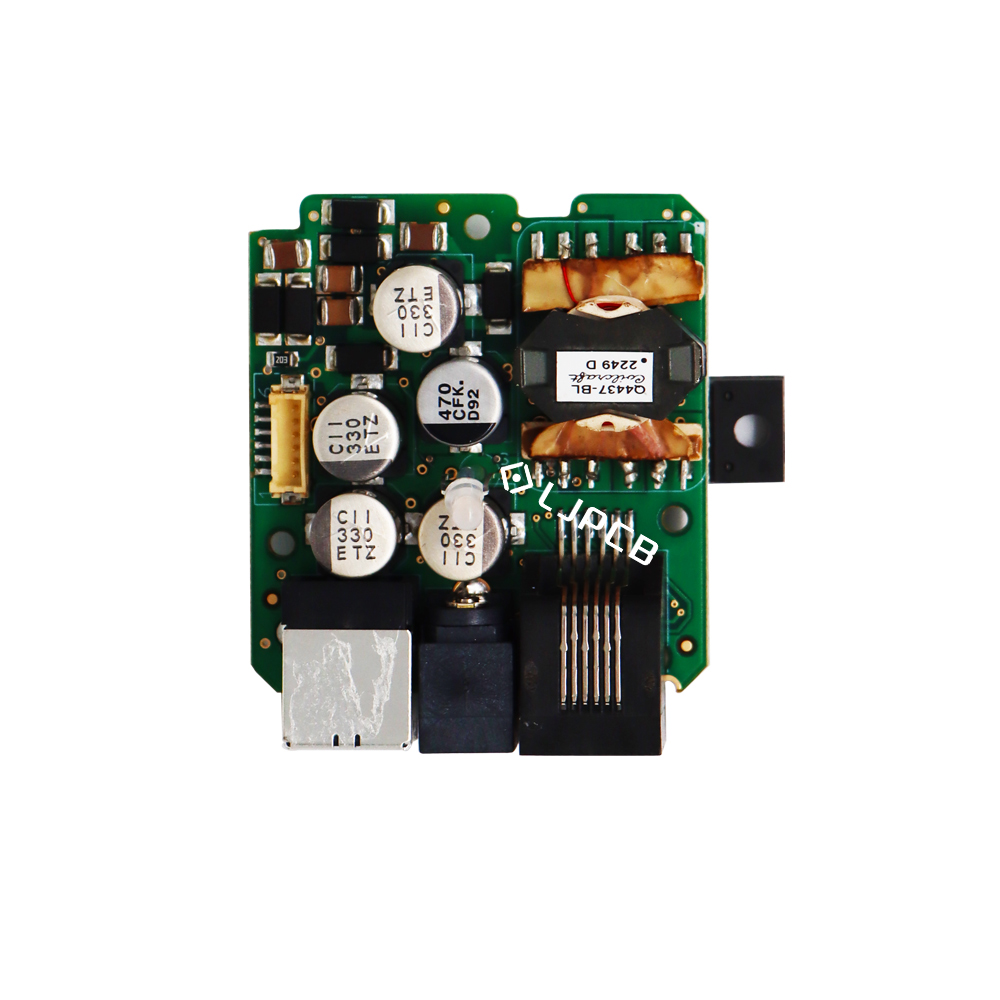

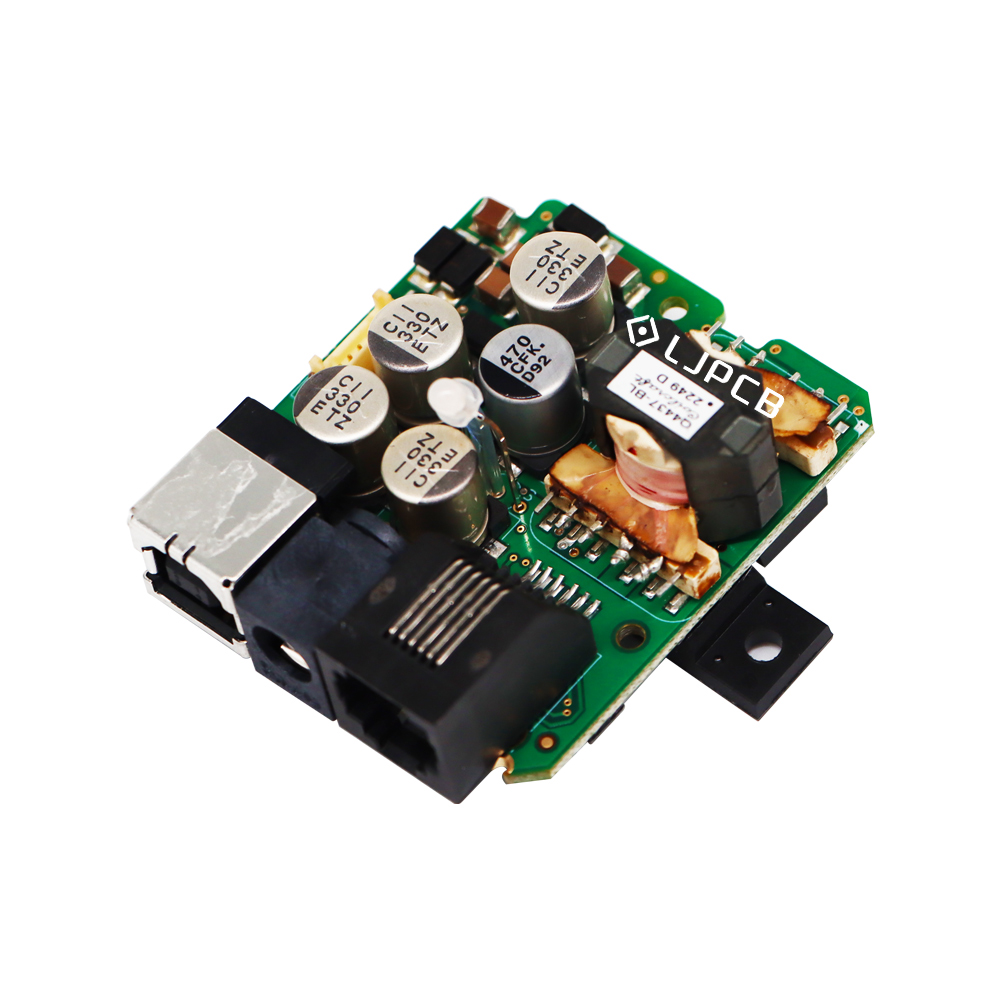

Description: This Multi-Output DC Power Conversion Board is designed to convert and regulate DC input power into multiple stable DC voltage outputs for different circuits within electronic equipment. The board integrates power conversion, voltage regulation, filtering, and protection circuits, with inductors, power semiconductor devices, transformers, and high-capacity capacitors supporting efficient and reliable power management. Multiple connectors provide convenient power distribution to downstream control boards, sensors, motors, and other electronic modules. LJPCB provides one-stop PCB manufacturing and PCB Assembly services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Process | ENIG 1u，Copper 25um，Half Vias(one side) | Finished Copper Thickness | 1/1/1/1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR-4 TG130 | Test | Flying Probe Test |
| Routed Outline/Punching | CNC+V-CUT | Size | 43.18*47mm |
