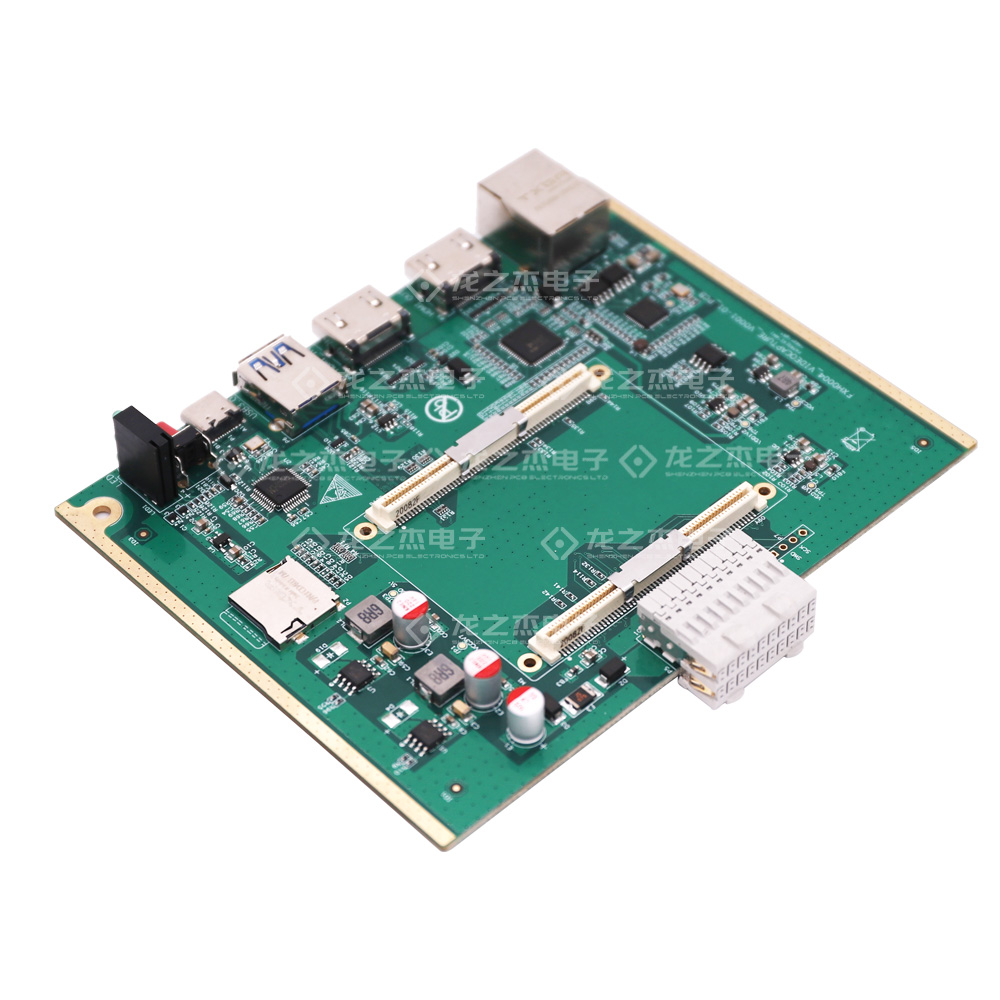

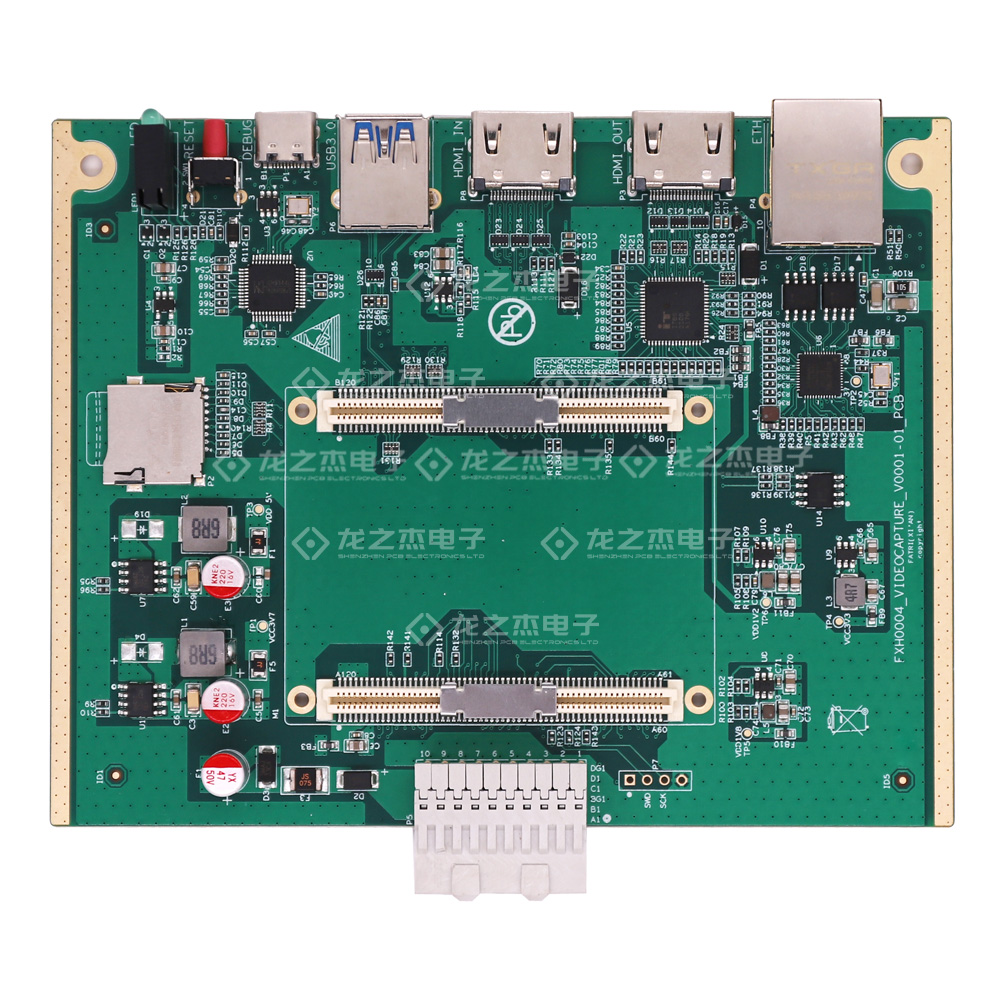

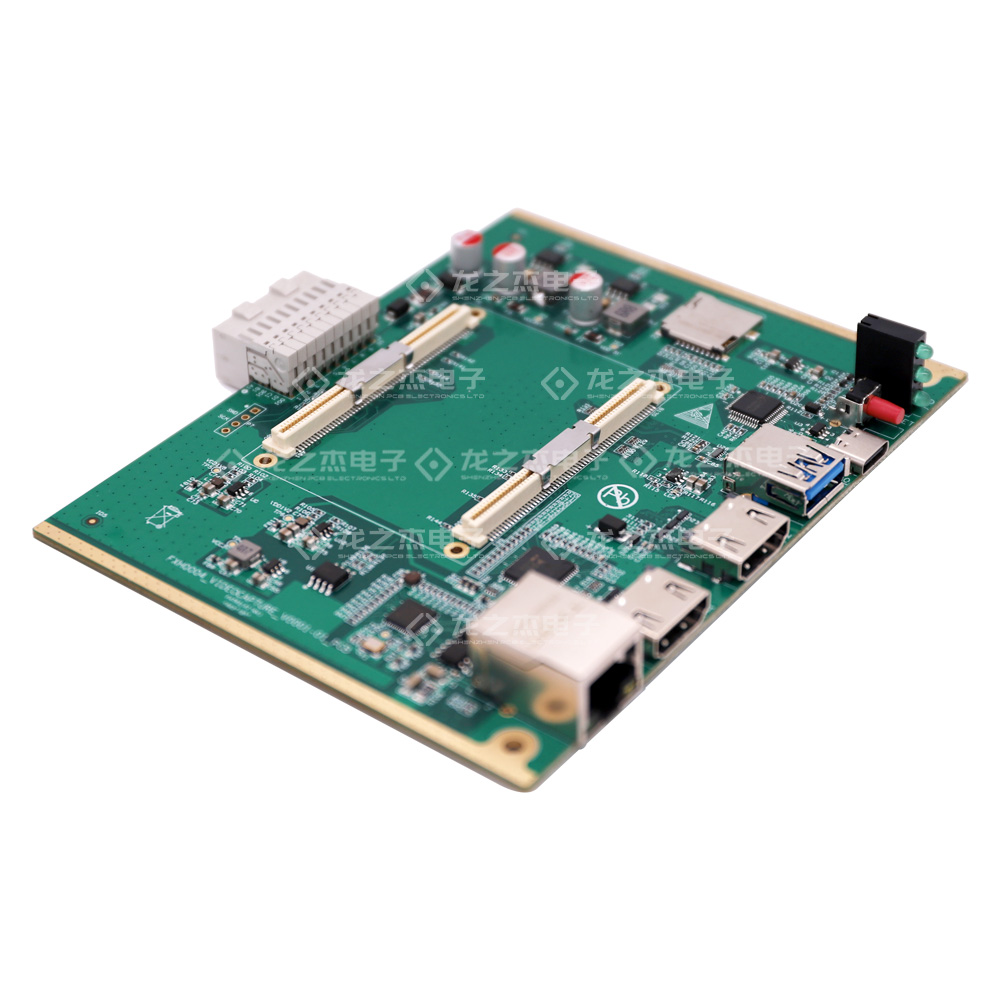

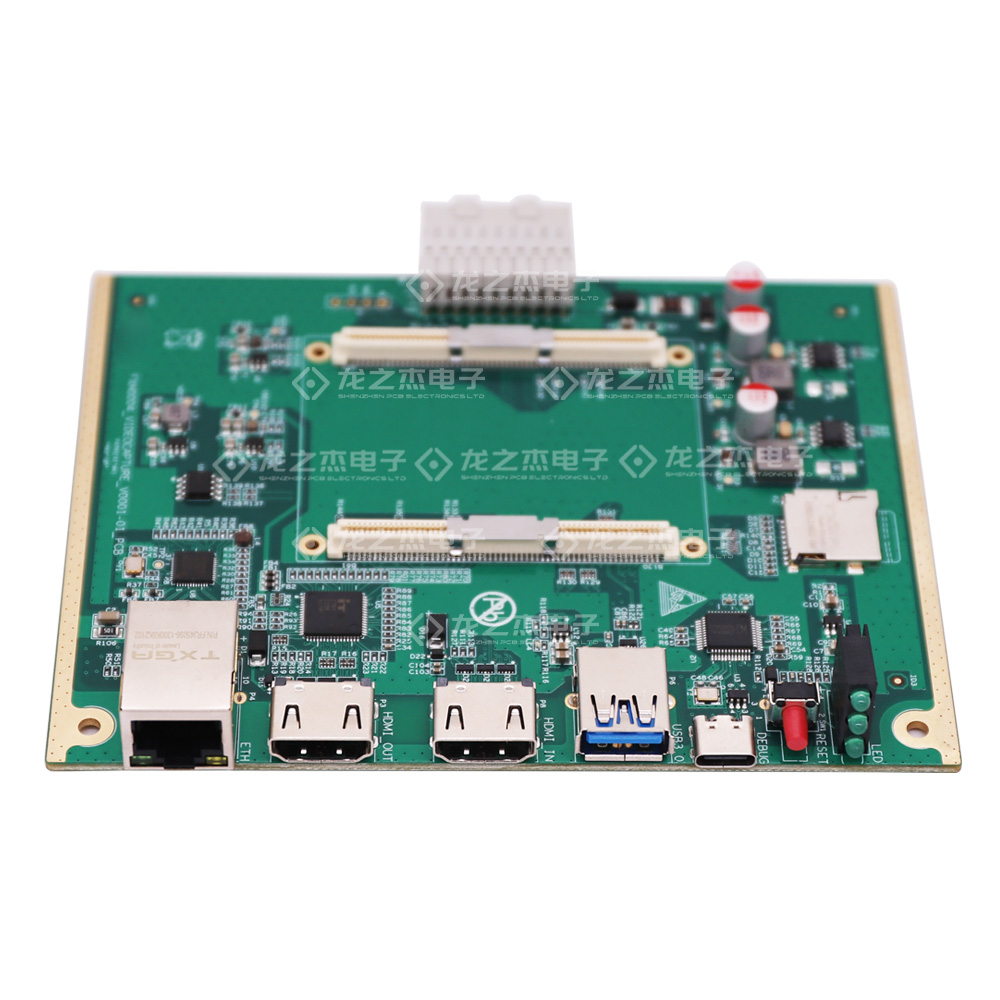

Description: This PCB is used as an industrial video capture board for machine vision and embedded imaging systems. It supports HDMI video input and output, USB 3.0 high-speed data transfer, Gigabit Ethernet communication, and high-speed board-to-board expansion interfaces. The board is designed for real-time video acquisition, image processing, and data transmission in industrial vision, AI edge computing, and intelligent inspection equipment. LJPCB provides one-stop turnkey PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for industrial imaging and embedded systems.

Layer	6L	Material	FR-4 TG150
Material Thickness	1.6mm	Finished Copper Thickness	1oz
Solder Mask Type/Color	2*Green	Legend Mark	2*White
Surface Finishing	ENIG	Unit Size	104.5*133mm
