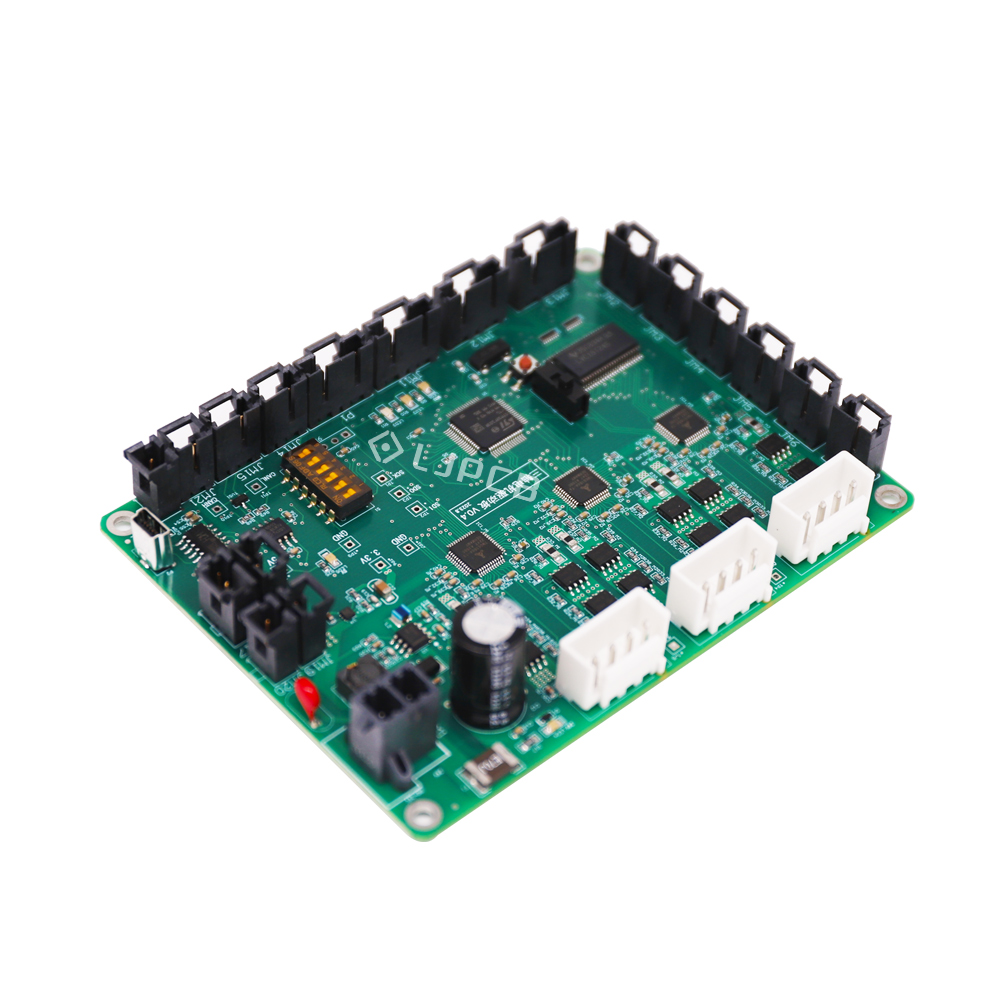

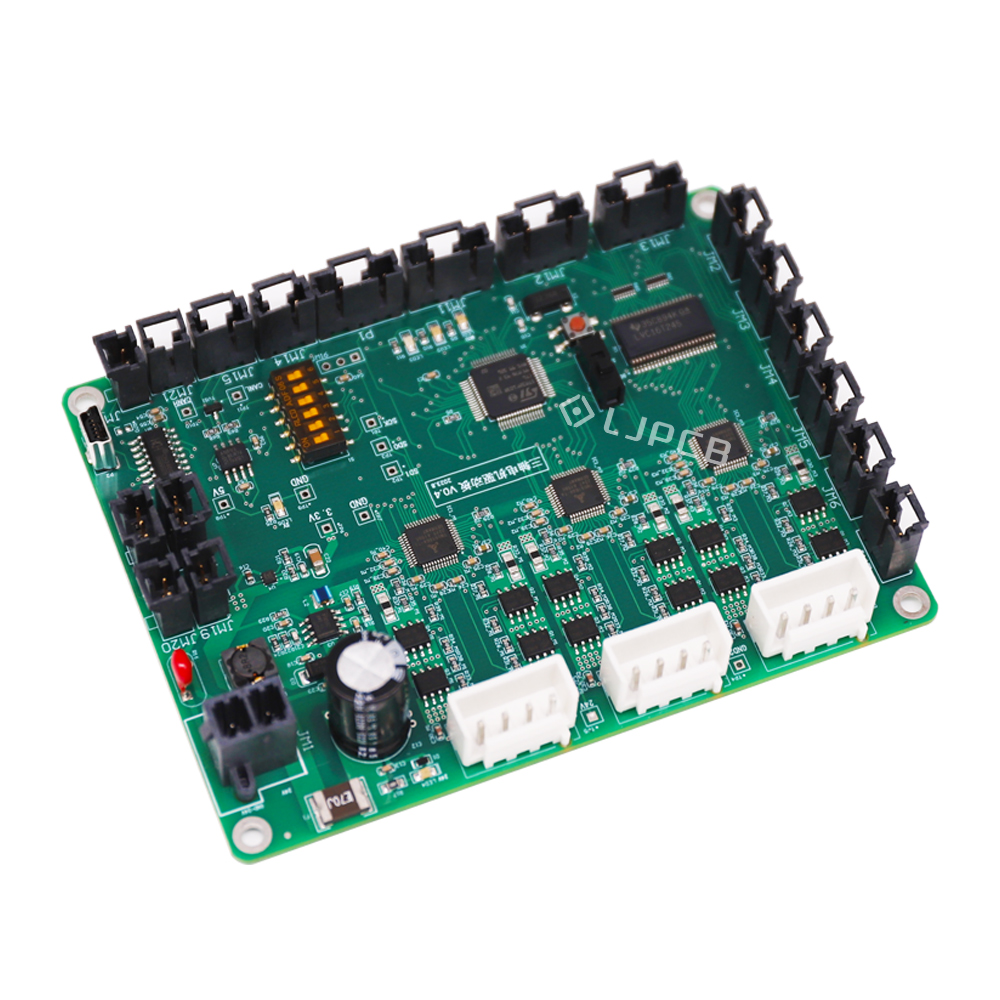

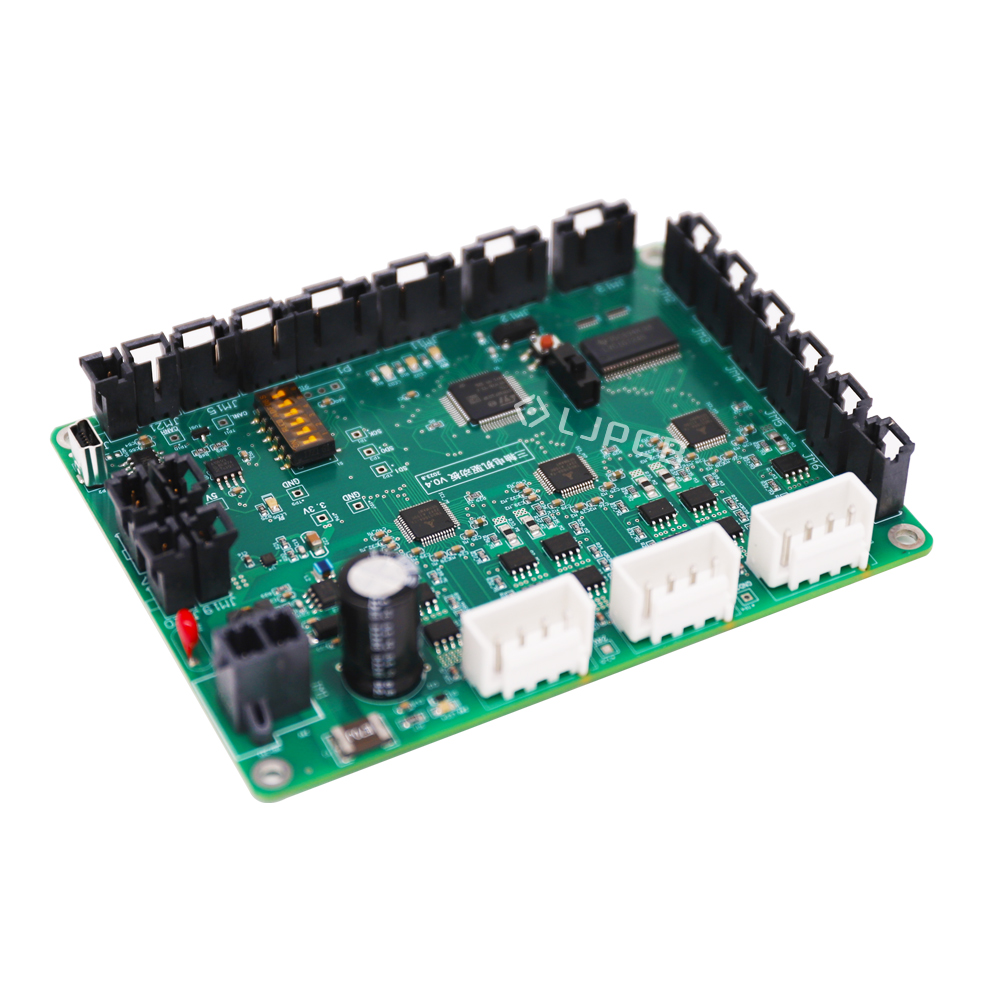

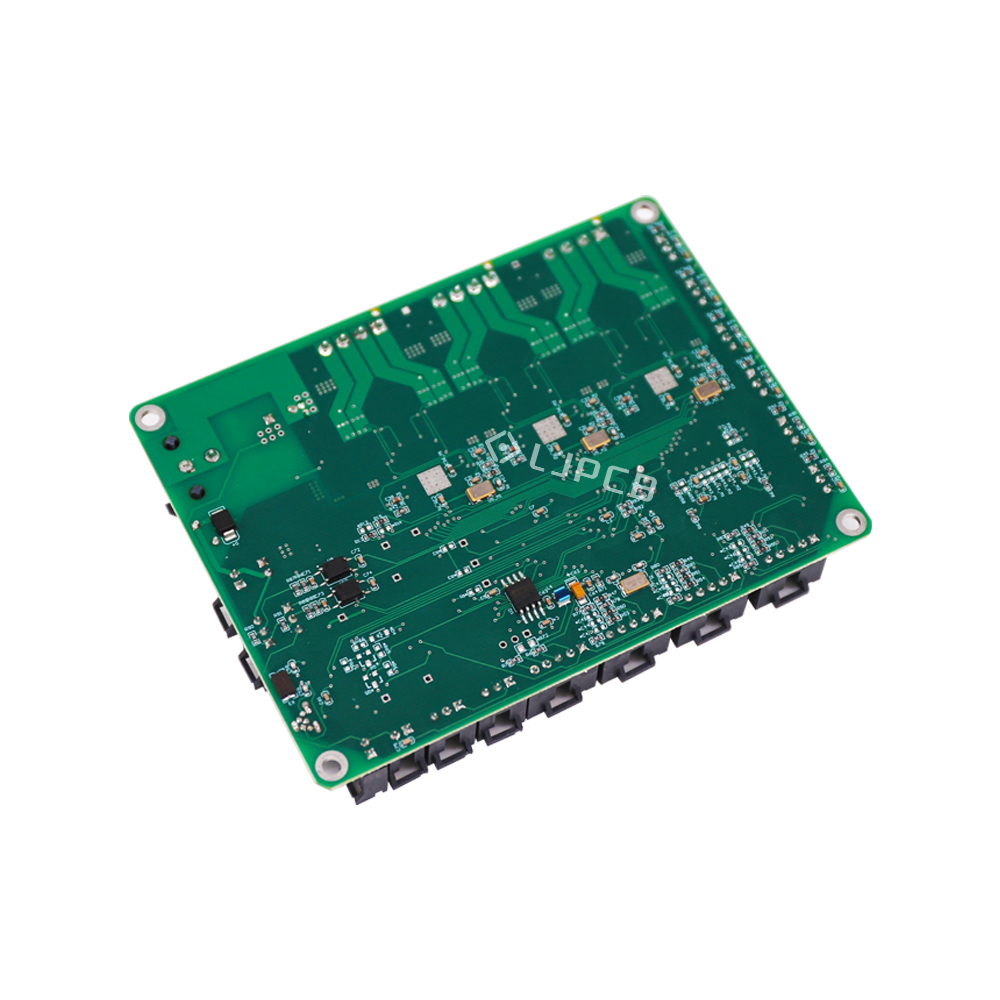

Description: This 3-axis motor driver control board is designed to provide independent control and drive functions for three motor axes. It integrates a microcontroller, motor driver circuits, signal processing circuits, power management, and multiple I/O interfaces for motor control, feedback, and communication. The board is suitable for motion control systems, industrial automation equipment, robotics, CNC machines, and other multi-axis motor applications. LJPCB provides one-stop PCB manufacturing and PCB Assembly services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1/1/1/1OZ |
| Solder Mask | Green | Legend Mark | White |
| Routed OutLine/Punching | CNC+v-cut | Test | Flying Probe Test |
