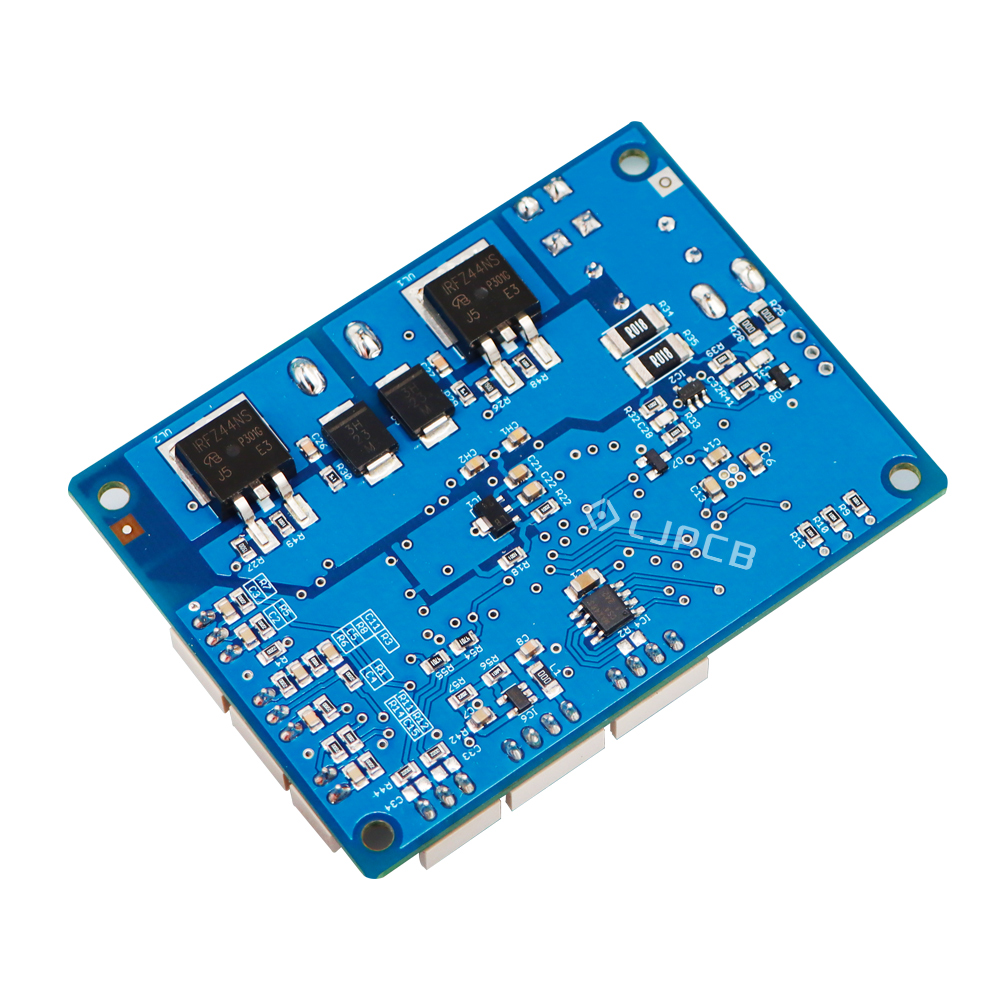

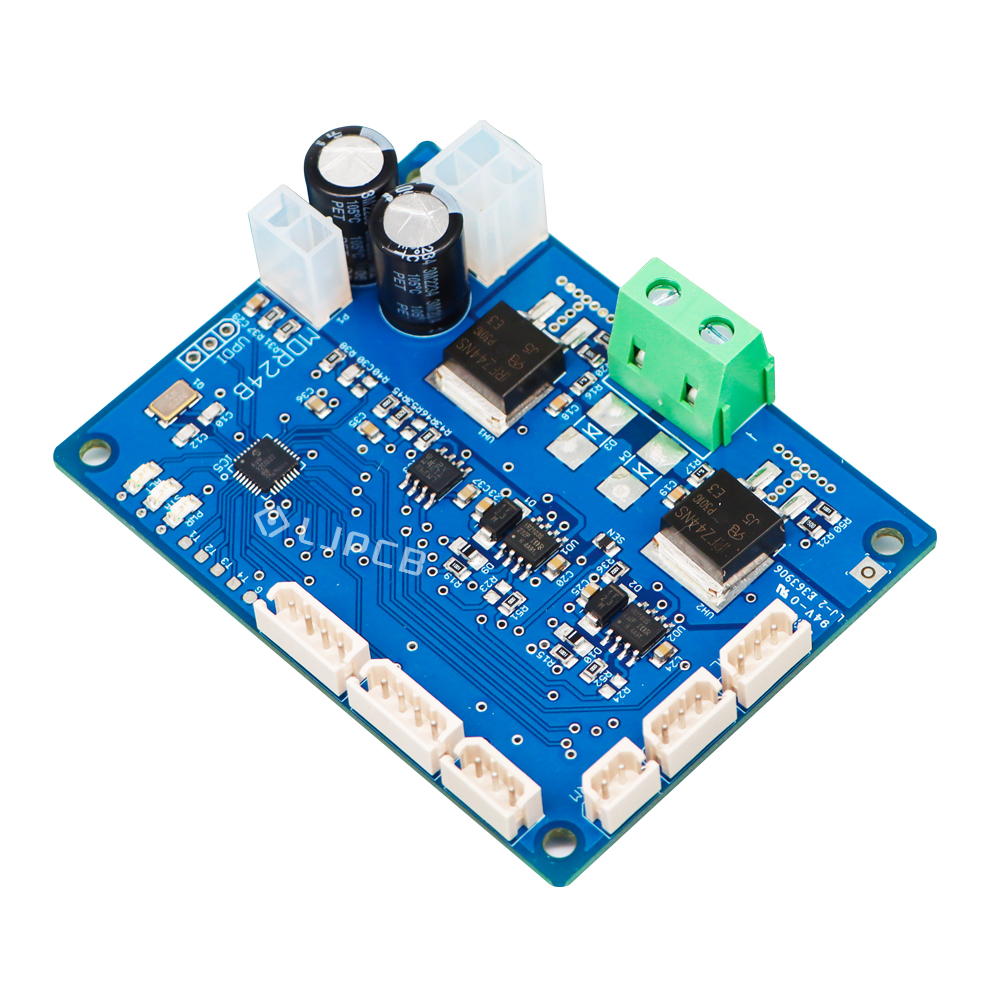

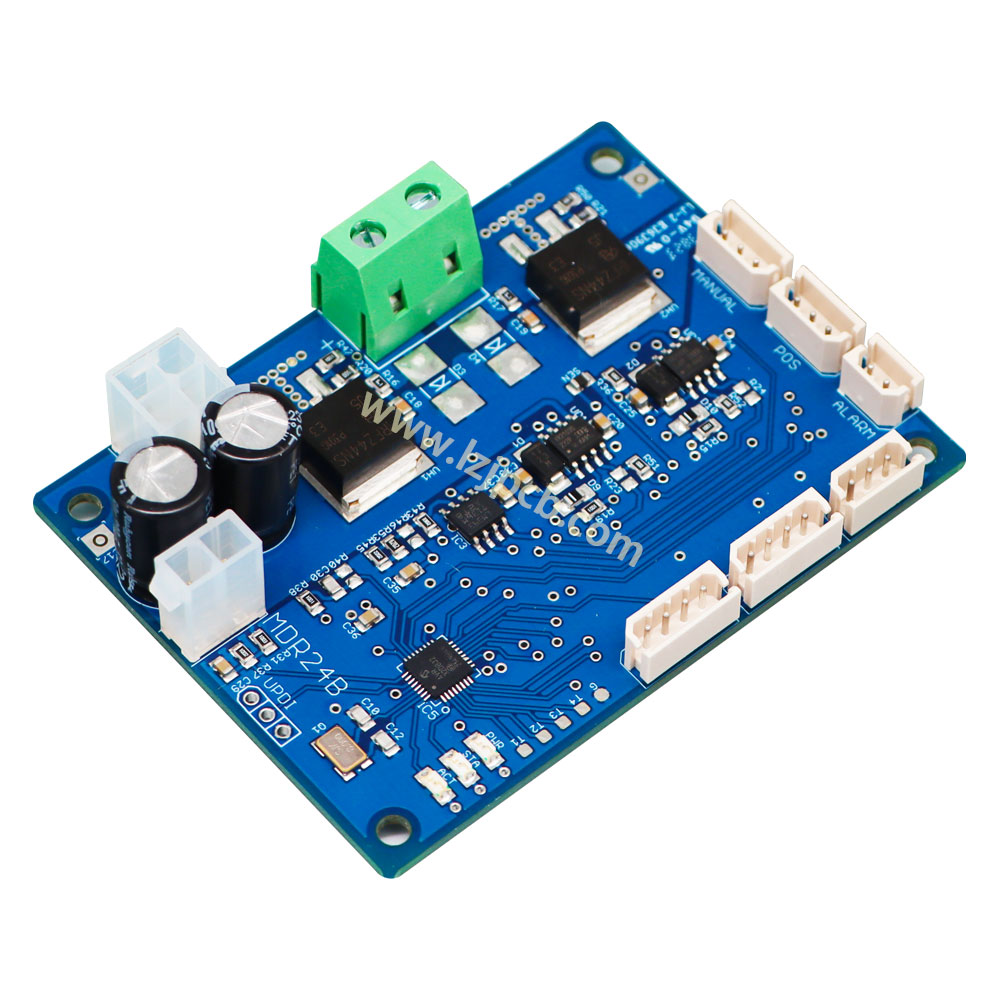

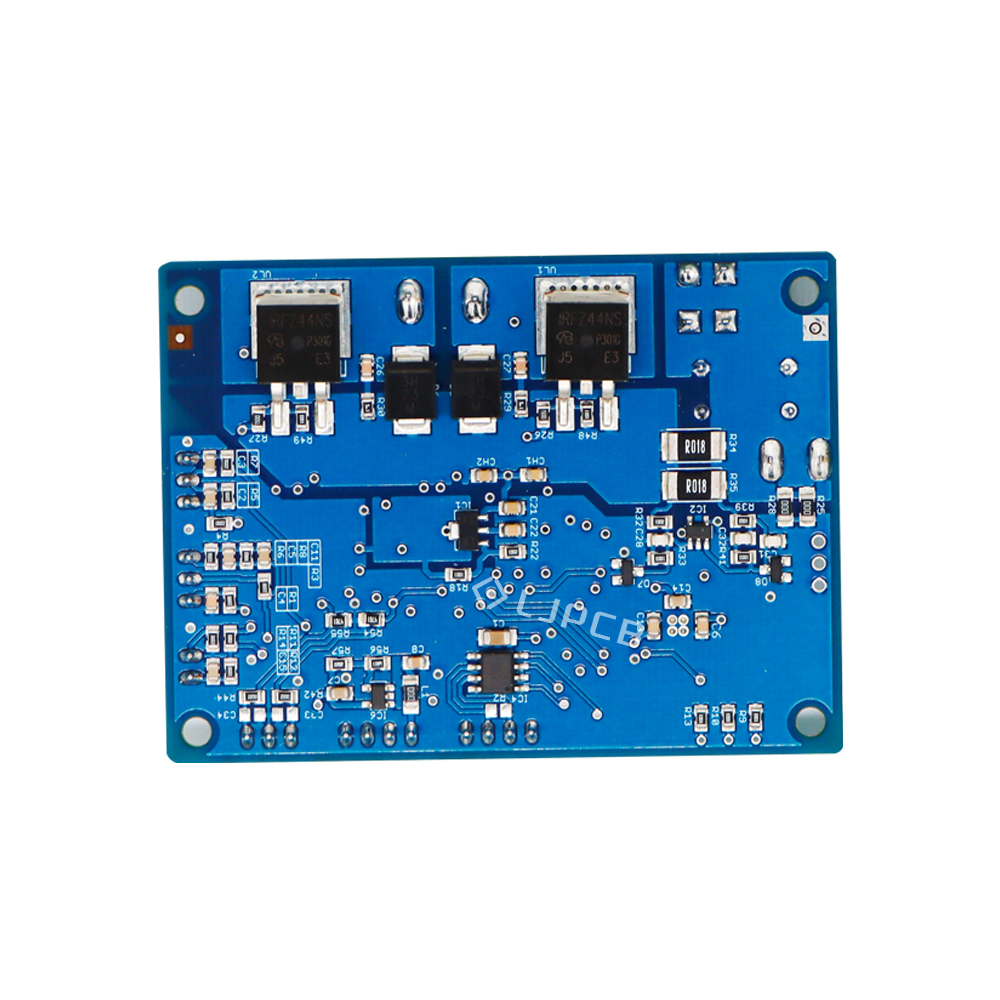

Description: This MDR Power Control Board is designed for power management and control applications in compact DIN rail-mounted systems. The board integrates power switching devices, a microcontroller, power management circuits, and multiple input/output interfaces to provide reliable control of connected electrical loads and devices. Its compact design and multiple terminal connections make it suitable for industrial automation, building control, smart electrical systems, and other DIN rail-mounted applications. LJPCB provides one-stop PCB manufacturing and PCBA services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
| Solder Mask | Blue | Legend Mark | White |
| Material | FR4-TG130 | Test | Flying-Probe Test |
