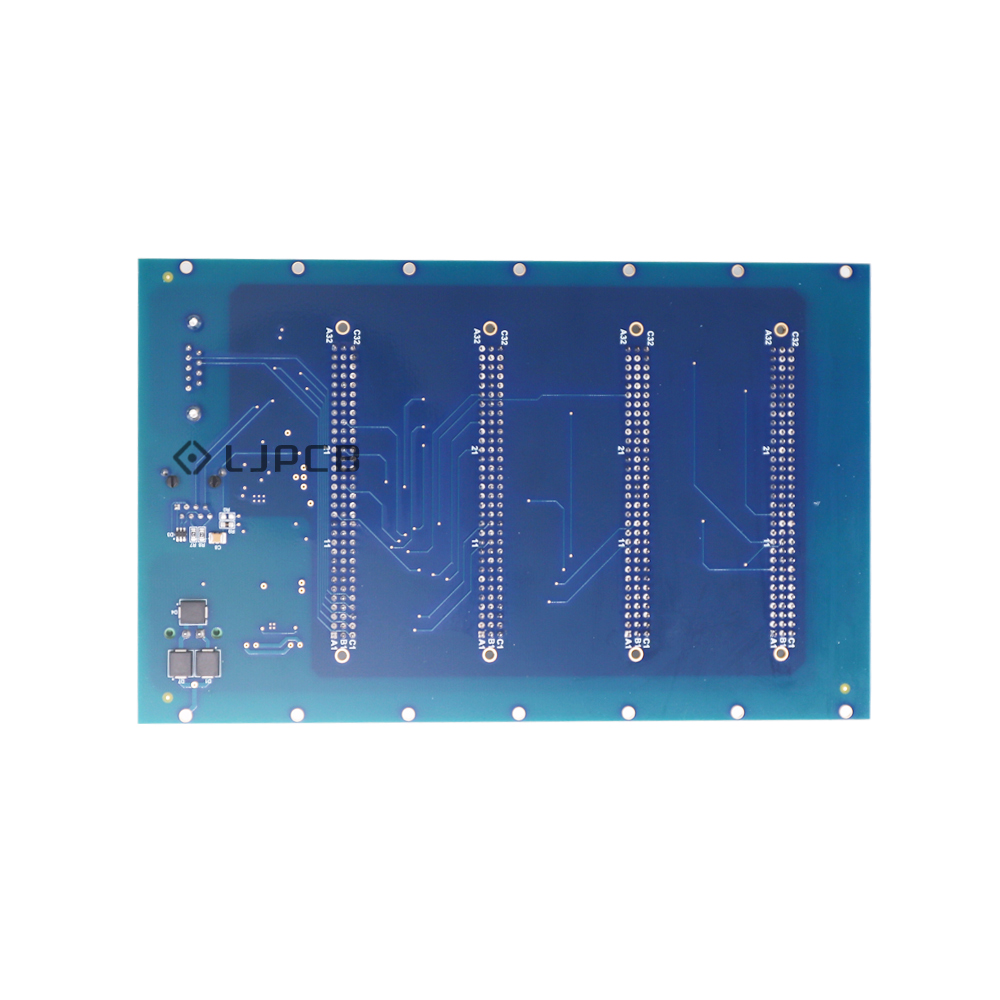

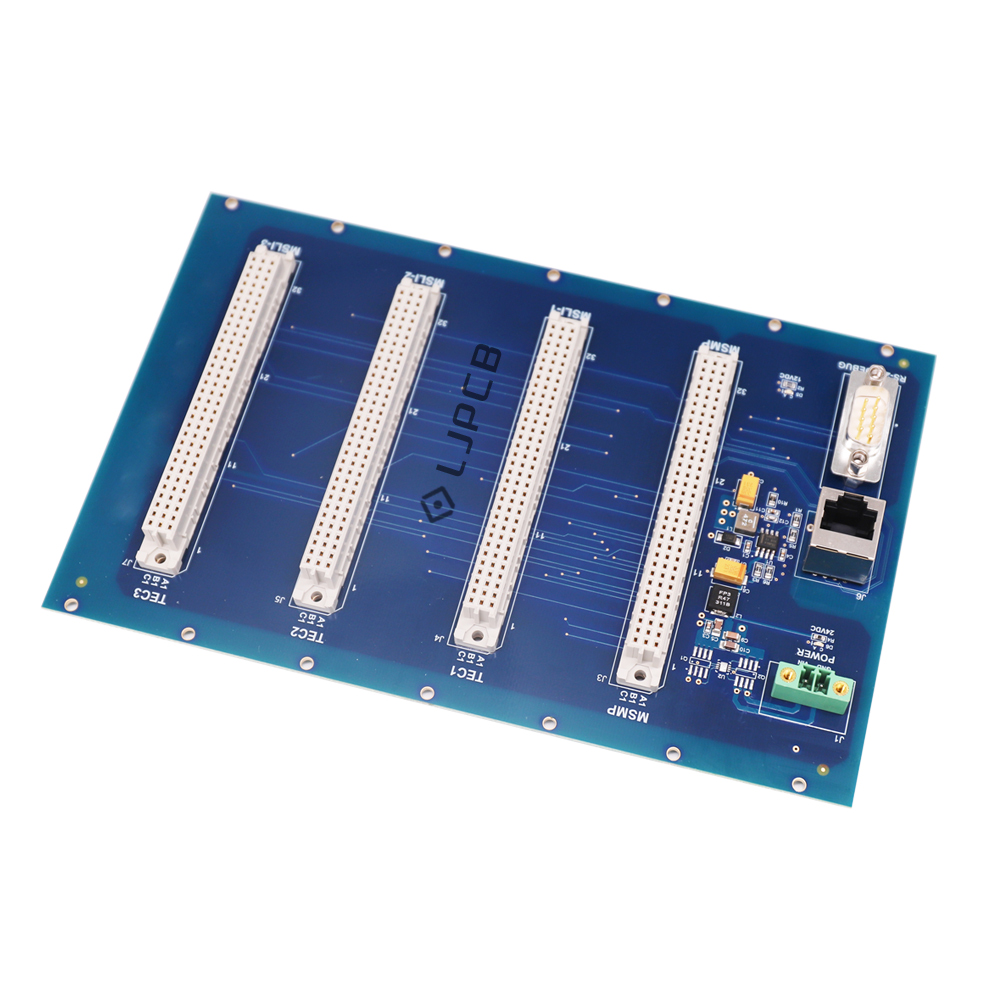

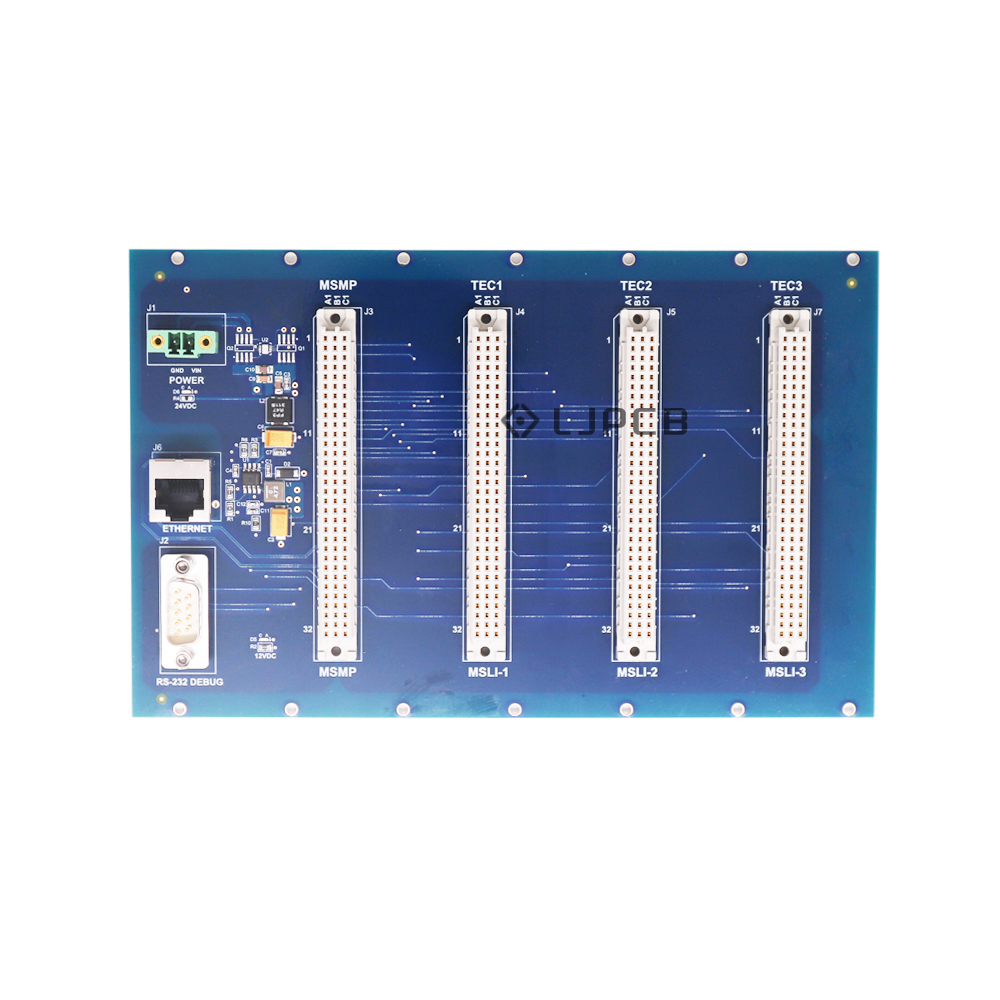

Description:This PCB is used as a backplane for industrial detector systems. It is designed to provide high-speed signal routing, power distribution, and reliable communication between the main controller and multiple functional modules. The backplane integrates high-density connectors and stable interconnection circuits to ensure dependable system operation in industrial detection applications. LJPCB provides one-stop turnkey
PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for industrial equipment and electronic systems.
| Layer | 4L | Material Thickness | 1.6mm |
|---|
| Surface Finishing | ENIG 1U" | Finsihed Copper Thickness | 2/1/1/2oz |
|---|
| Solder Mask | Blue | Legend Mark | White |
|---|
| Routed OutLine/Punching | CNC+v-cut | Test | Test-Flying Probe |
|---|
| Unit Size | 203.2*127.58mm | Panel Size | 203.2*137.58mm |
|---|
