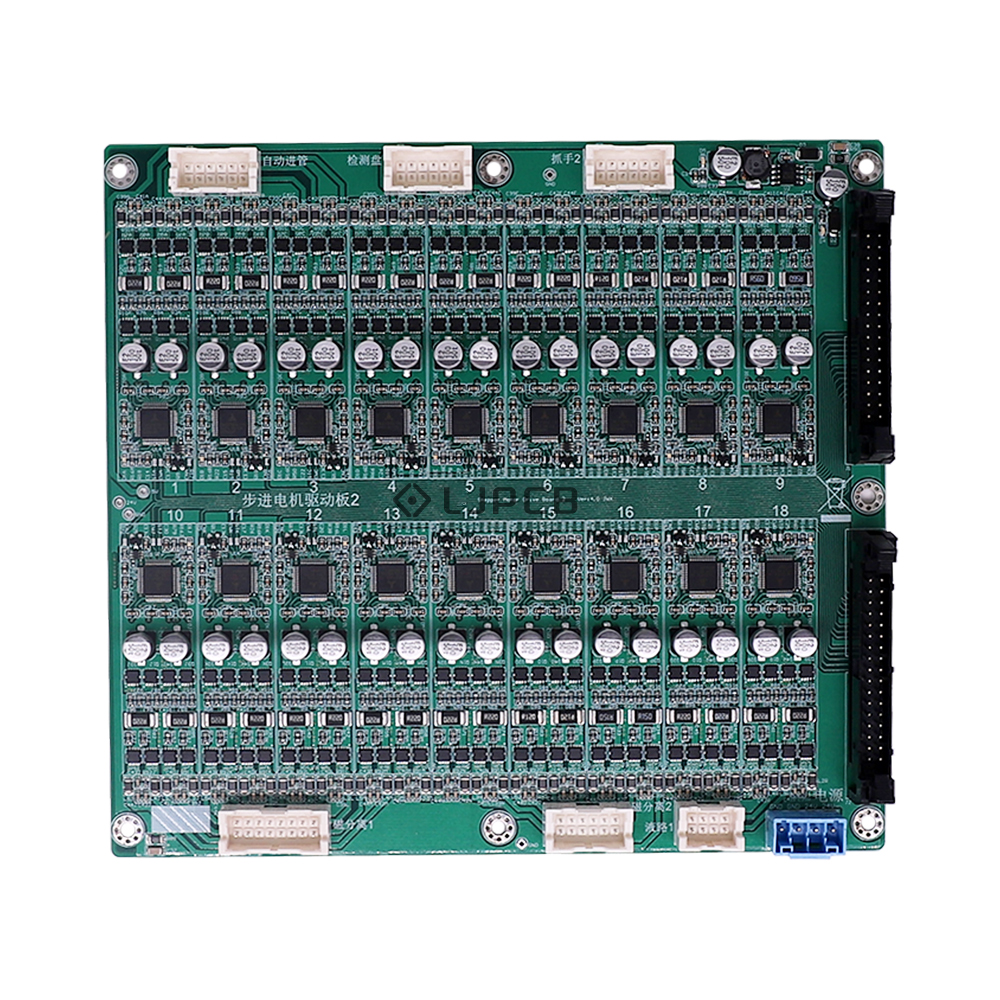

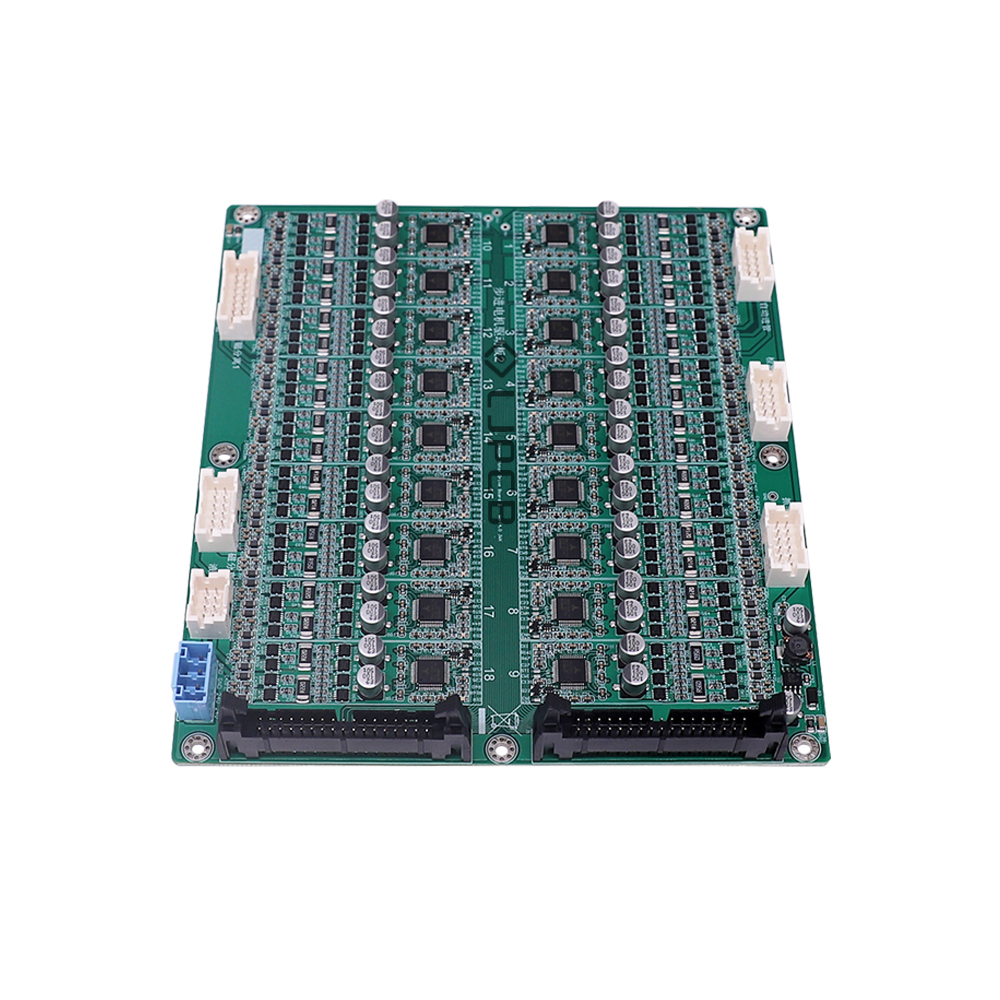

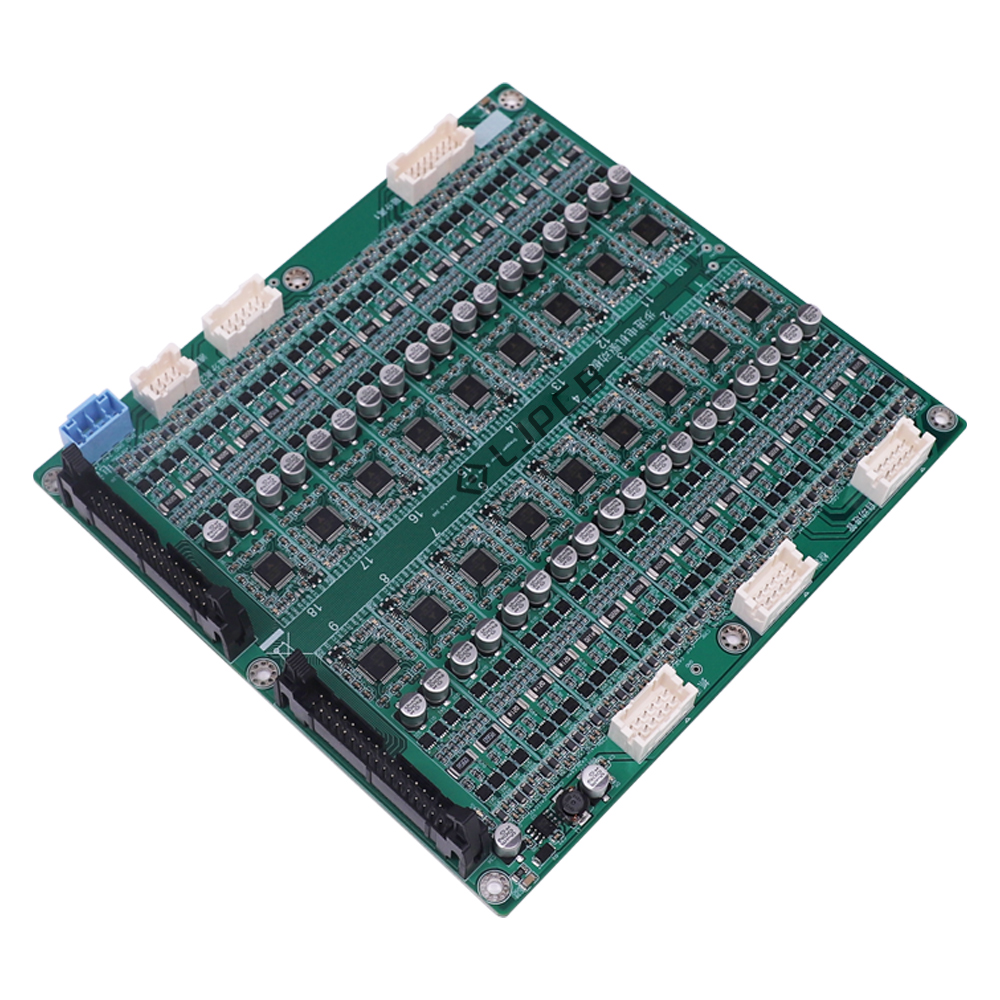

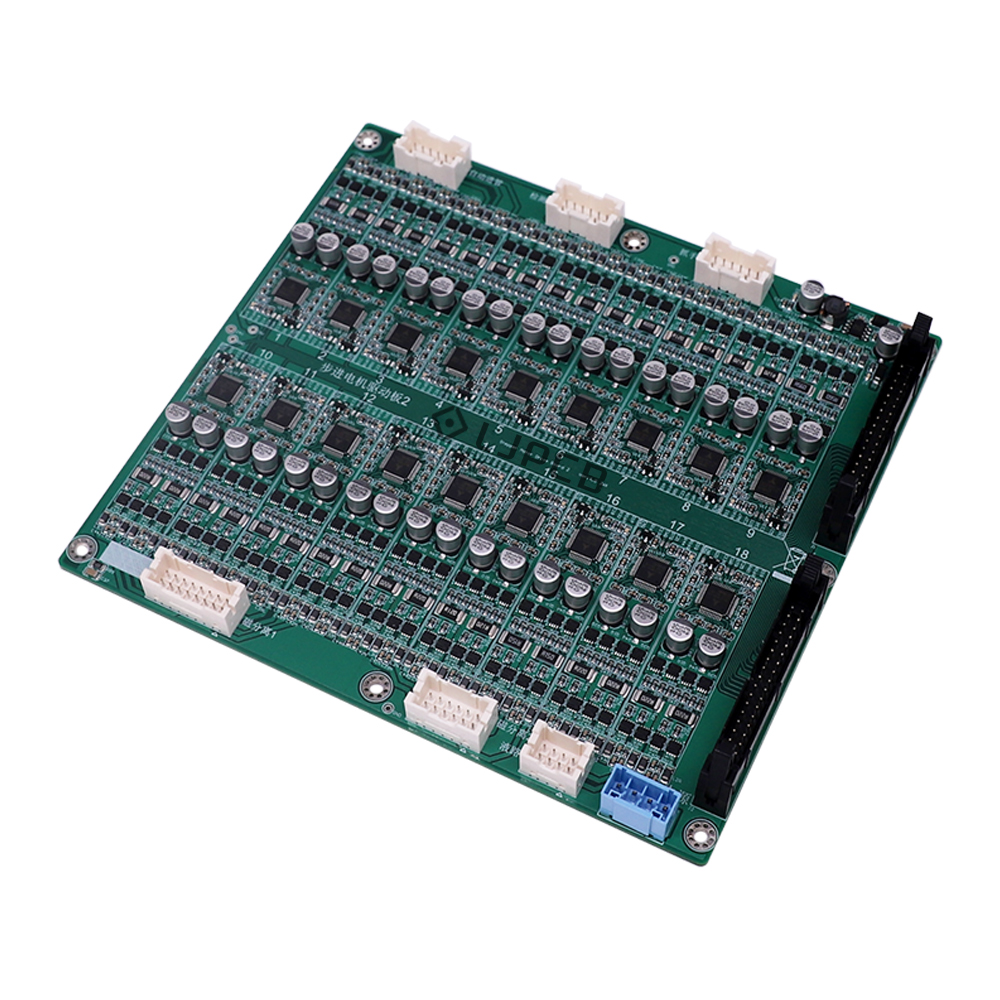

Description: This PCB is used as a stepper motor driver board for precision motion control applications. It is designed to control the operation of stepper motors, providing accurate positioning, speed regulation, and stable motor driving performance. The board integrates motor driver circuits, power management, signal processing, and communication interfaces to ensure reliable operation in industrial automation equipment and motion control systems. LJPCB provides one-stop turnkey
PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for industrial control and automation equipment.
| Layer | 4L | Material Thickness | 2.0mm |
|---|
| Surfcae Finishing | LF HASL | Finished Copper Thickness | 2oz |
|---|
| Solder Mask Type/Color | Green | Legend Mark | White |
|---|
| Routed OutLine/Punching | CNC+V-CUT | Test | Test Flying Probe |
|---|
