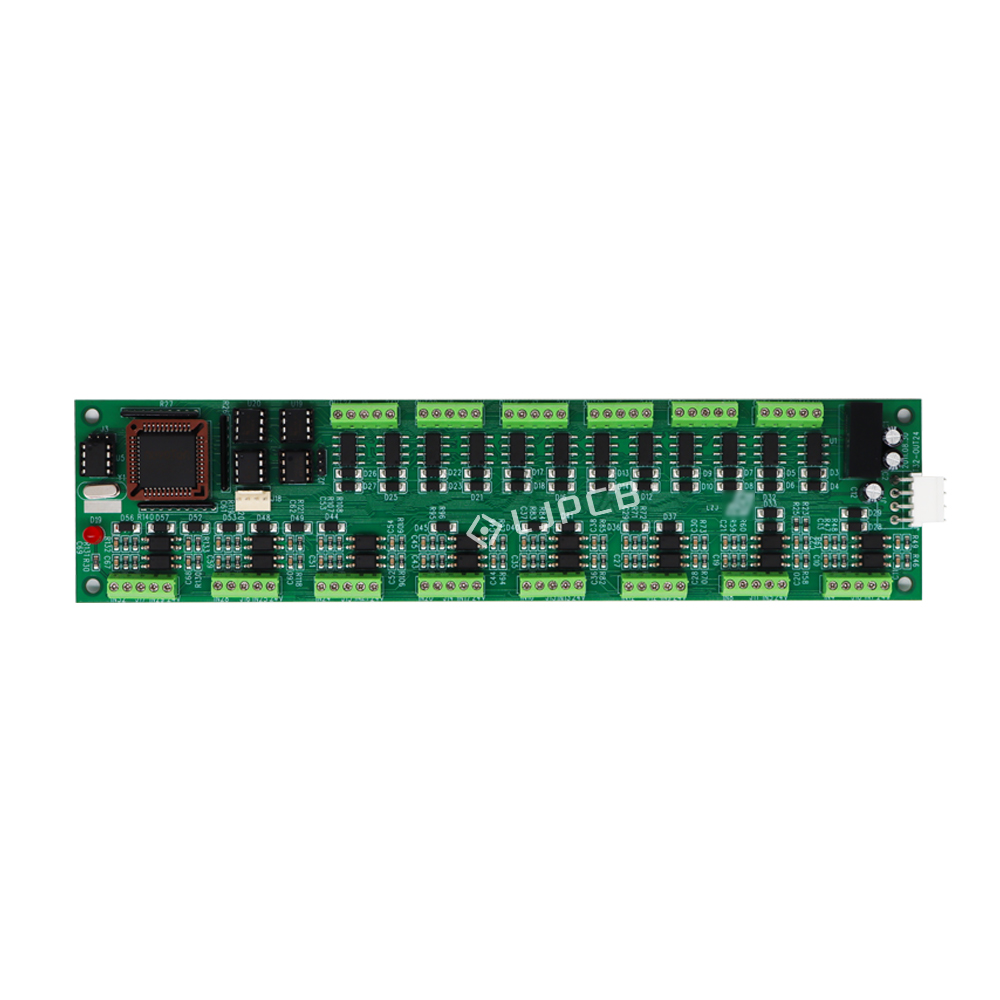

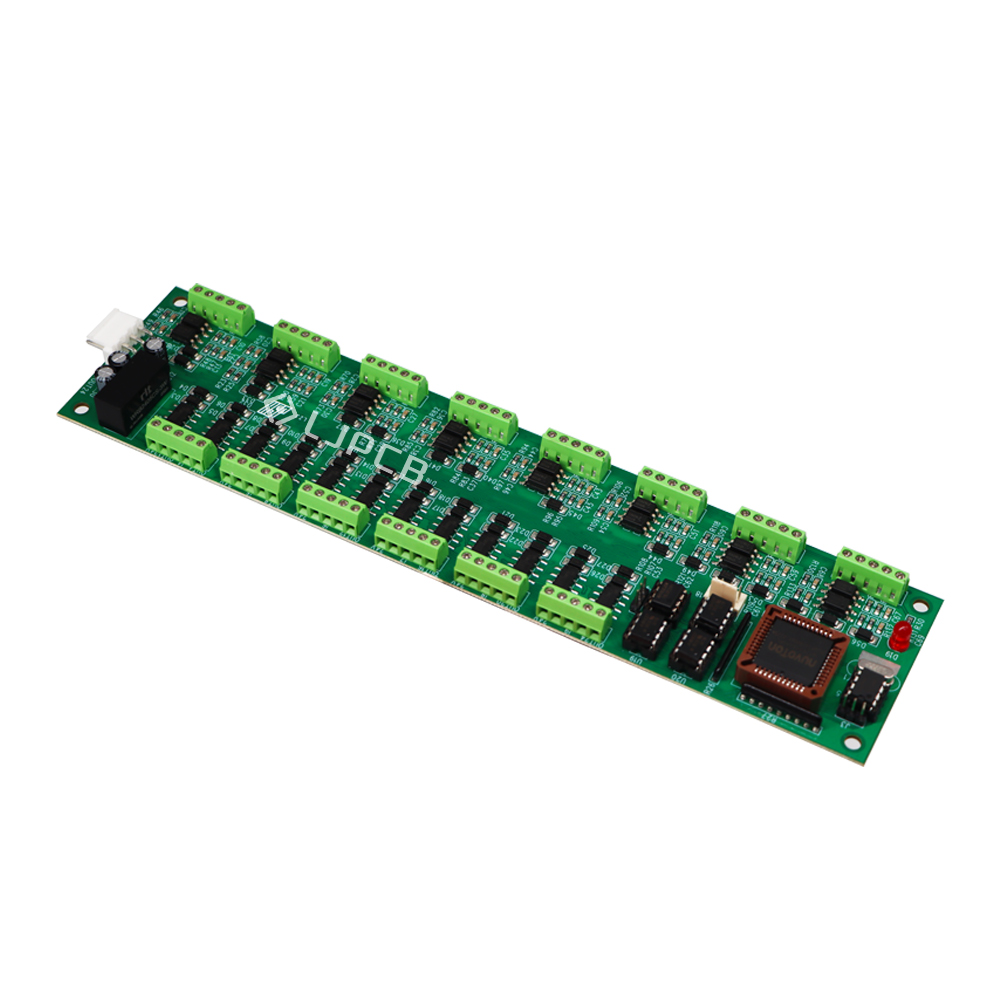

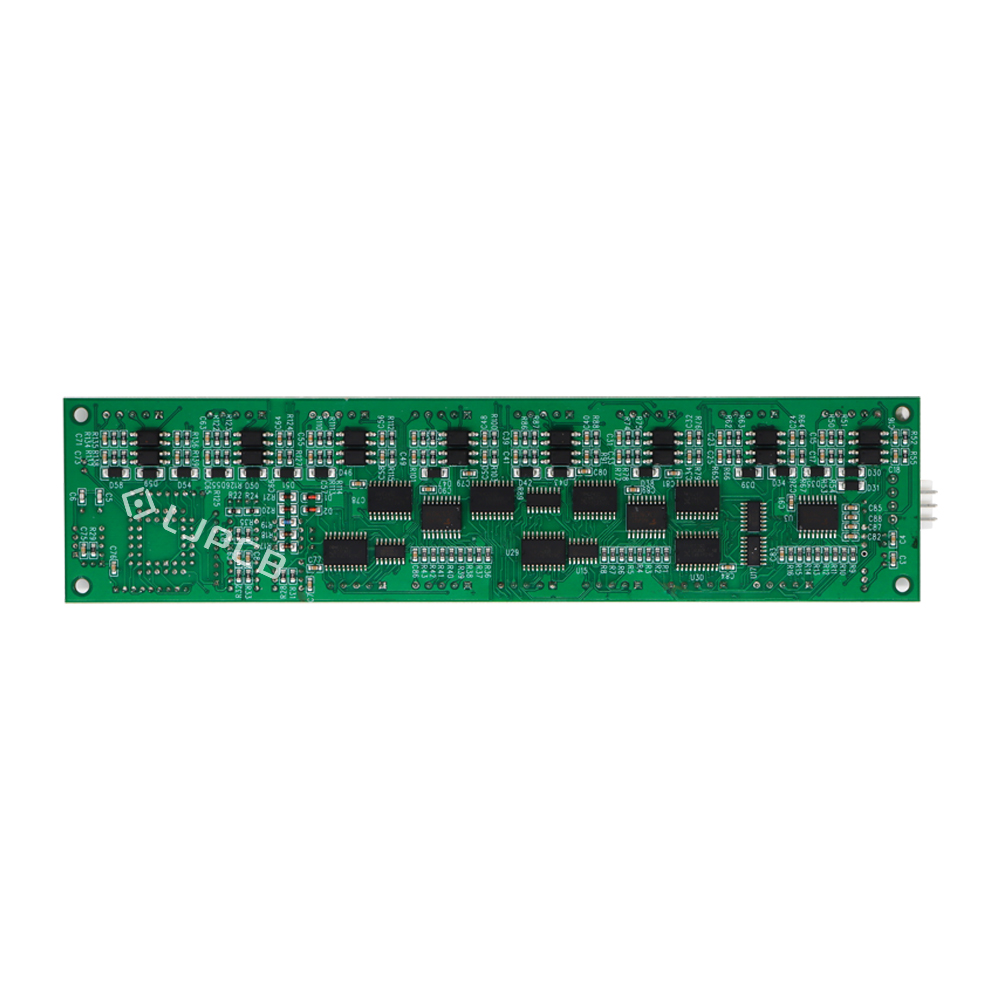

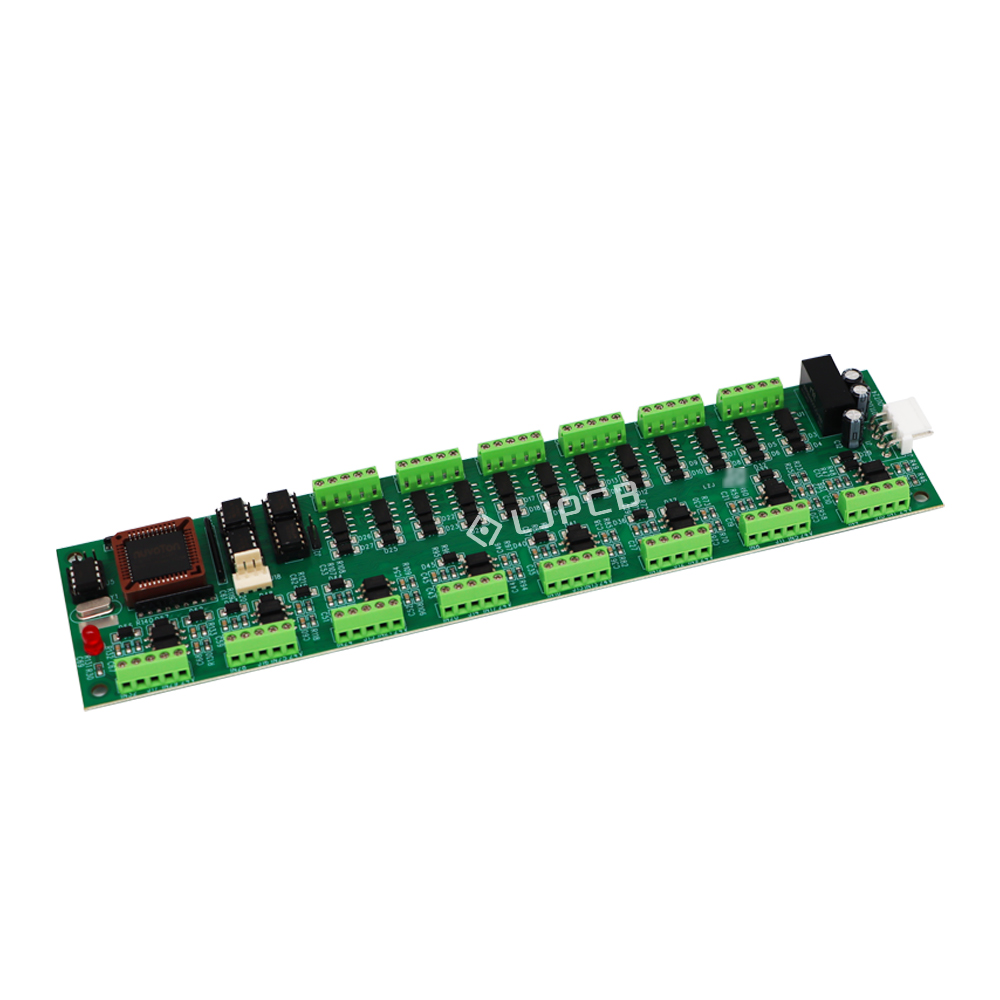

Description: his Lithium Battery Formation & Capacity Testing IO Control Board is designed for multi-channel control and signal management in lithium battery formation, capacity testing, and automated battery testing equipment. The board integrates a microcontroller and multiple independent driver circuits to provide reliable switching and control of numerous external channels, supporting communication between the equipment control system and peripheral actuators, relays, sensors, and other functional modules. Its high-density multi-channel architecture helps simplify system wiring while enabling stable and efficient control in automated production and testing environments. The board is suitable for lithium battery manufacturing lines, formation and capacity testing systems, battery inspection equipment, and other industrial automation applications. LJPCB provides PCB fabrication and PCBA manufacturing services, including component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.

Layer	2L	Material Thickness	1.6mm
Surface Finishing	LF HASL	Finished Copper Thickness	1oz
Solder Mask	Green	Legend Mark	Black
Material	FR-4	Test	Flying Probe Test
Size	250*60mm	板材	FR4
