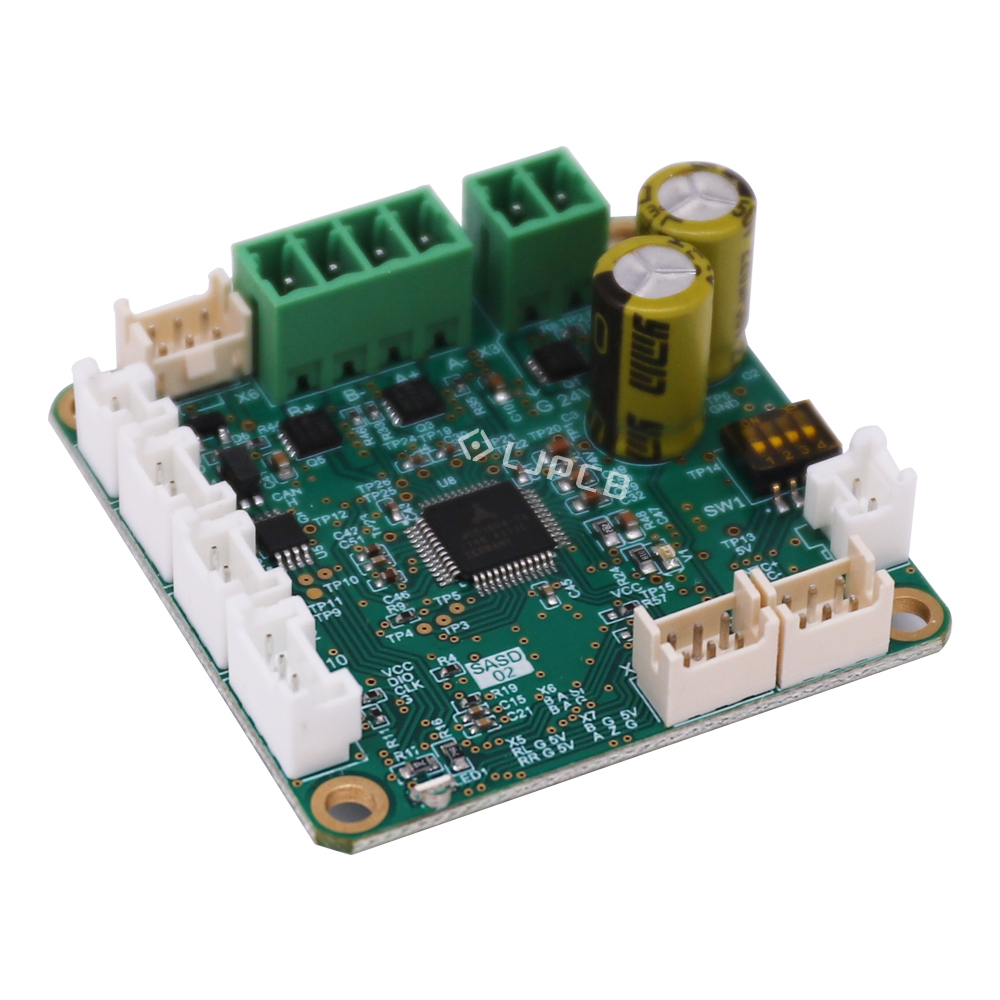

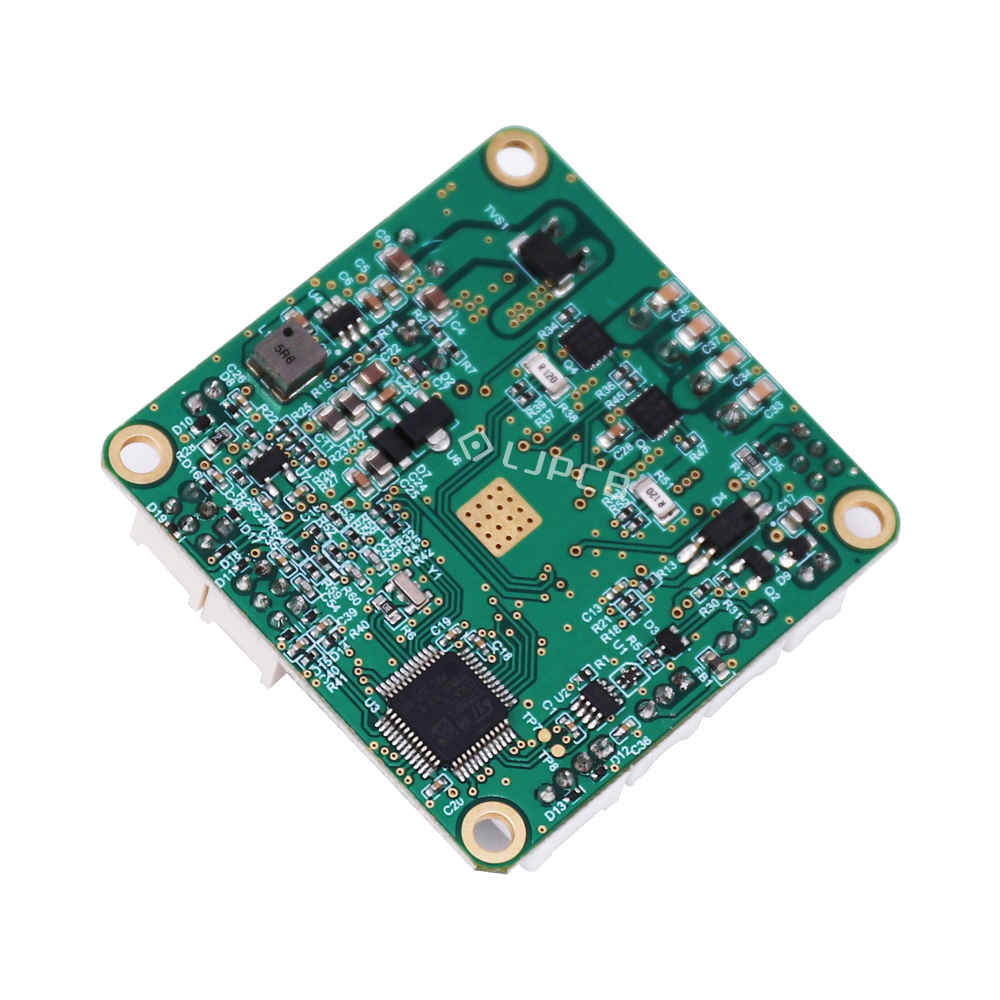

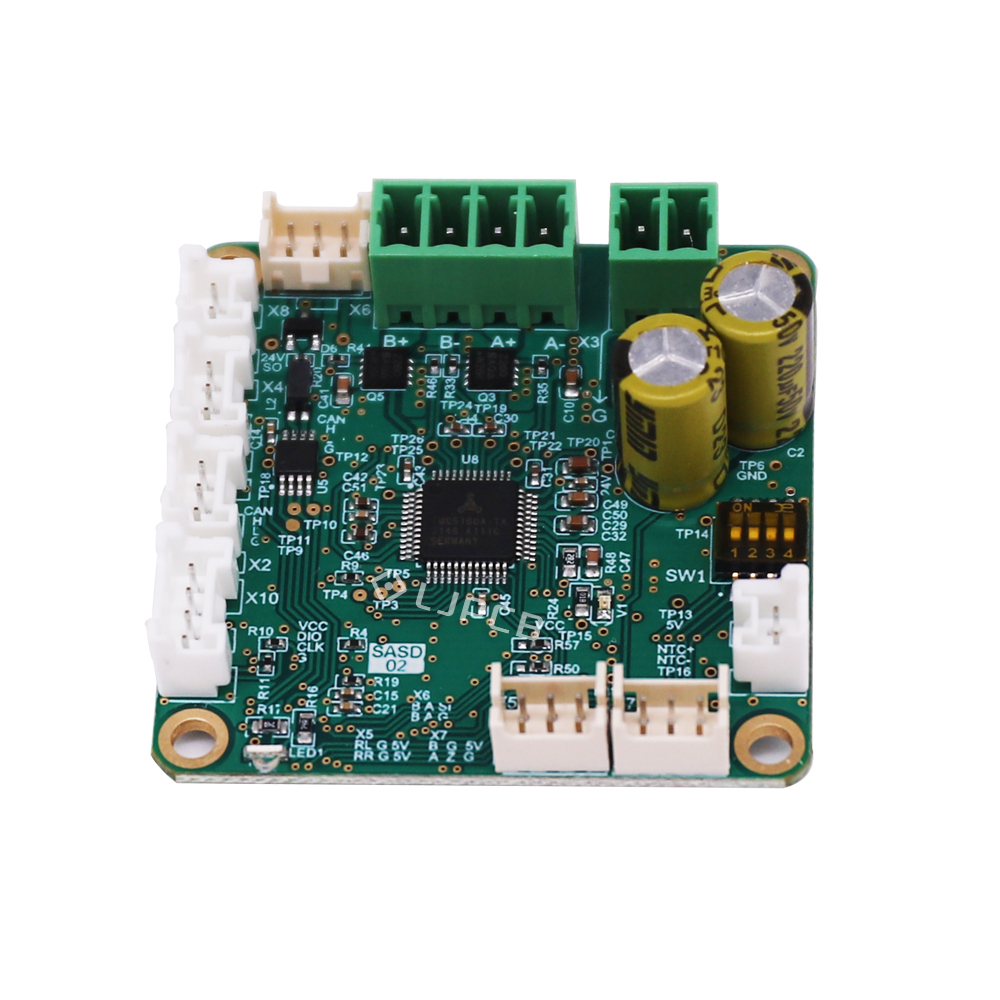

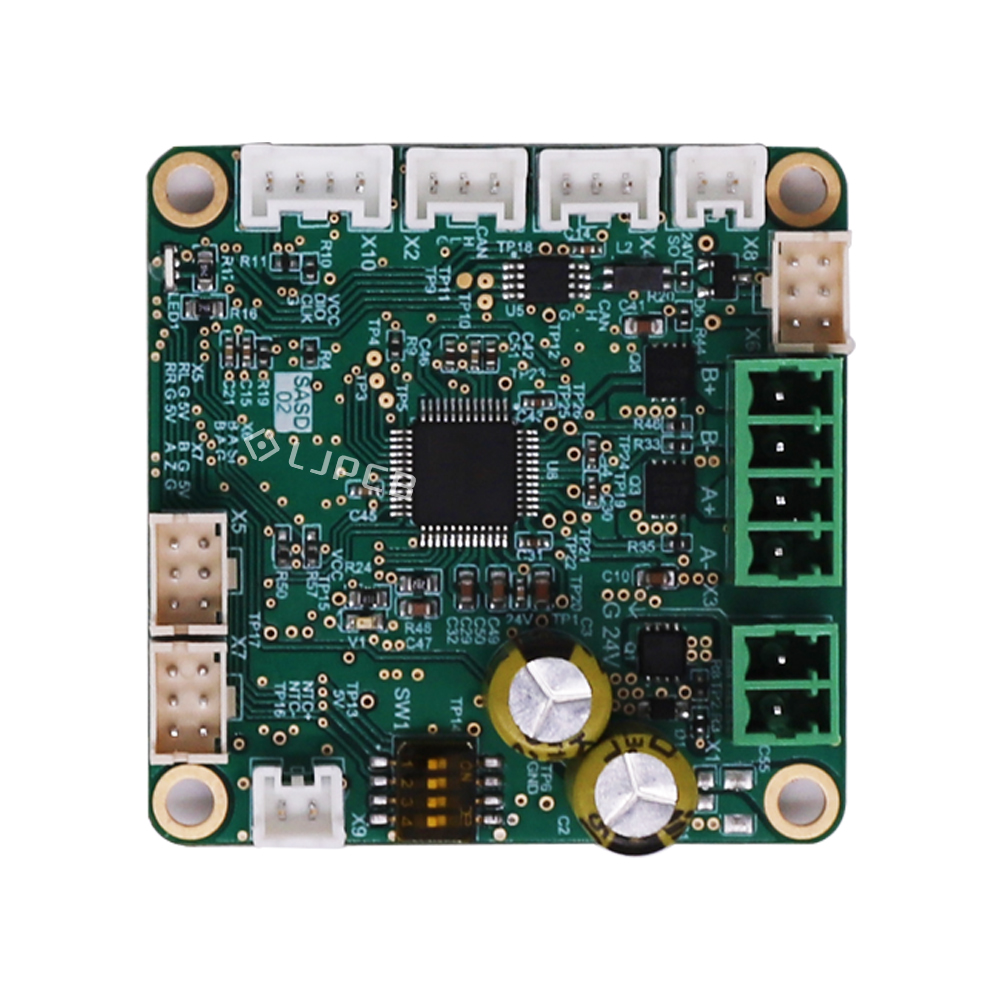

Description: This single-axis stepper motor driver board is designed to control and drive one stepper motor in motion control applications. It integrates a microcontroller, stepper motor driver circuitry, power management, CAN communication, and multiple control and feedback interfaces. The board supports precise motor positioning and speed control and is suitable for industrial automation, motion control equipment, robotics, and other electromechanical systems.LJPCB provides one-stop PCB manufacturing and PCB Assembly services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | ENIG | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR4-TG130 | Test | Flying-Probe Test |
| Routed OutLine/Punching | CNC+V Cut | Quality Control | IPC-600G class II and IPC-6013B class II |
