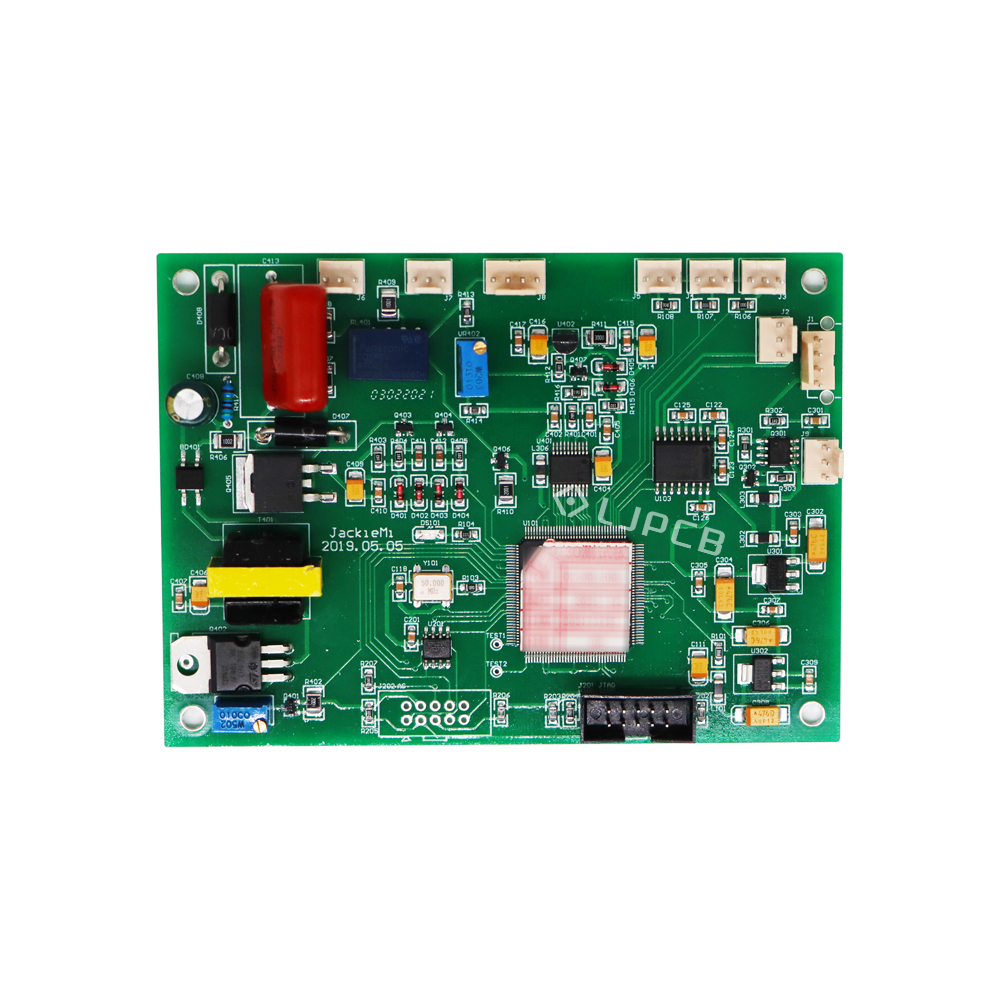

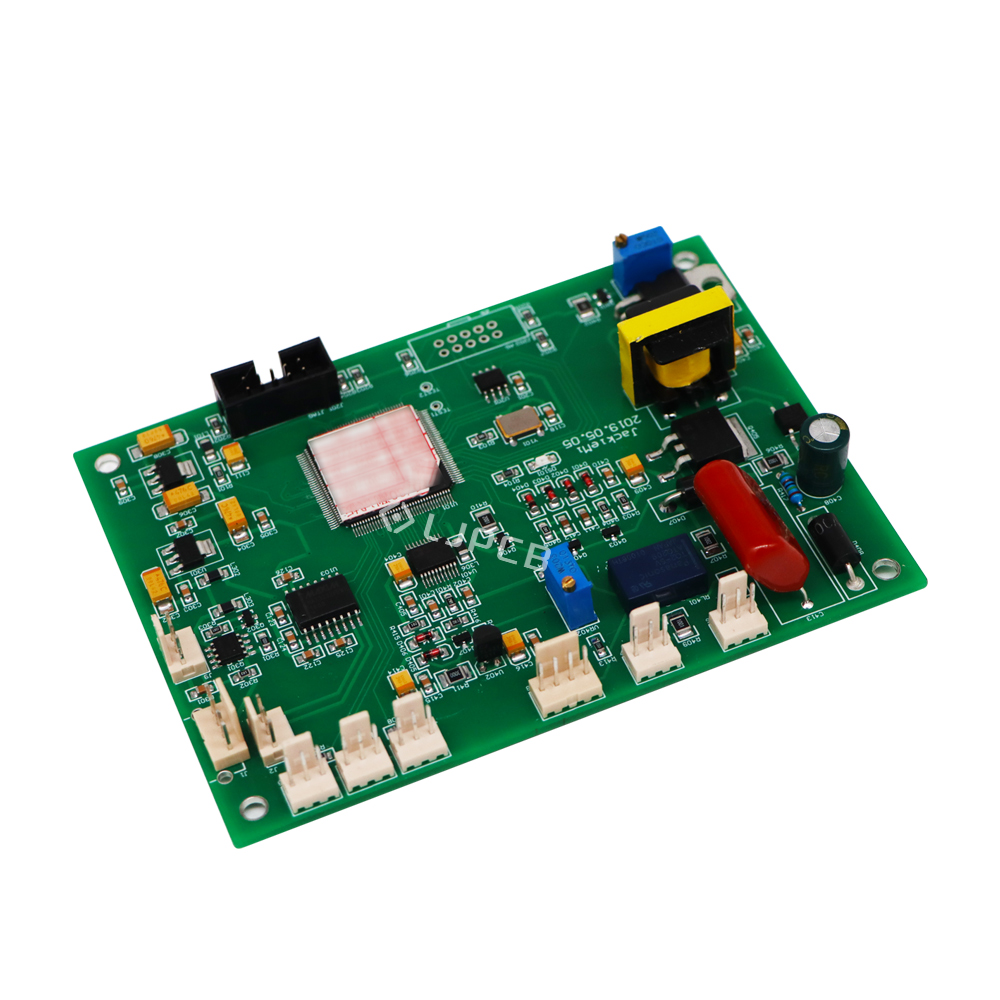

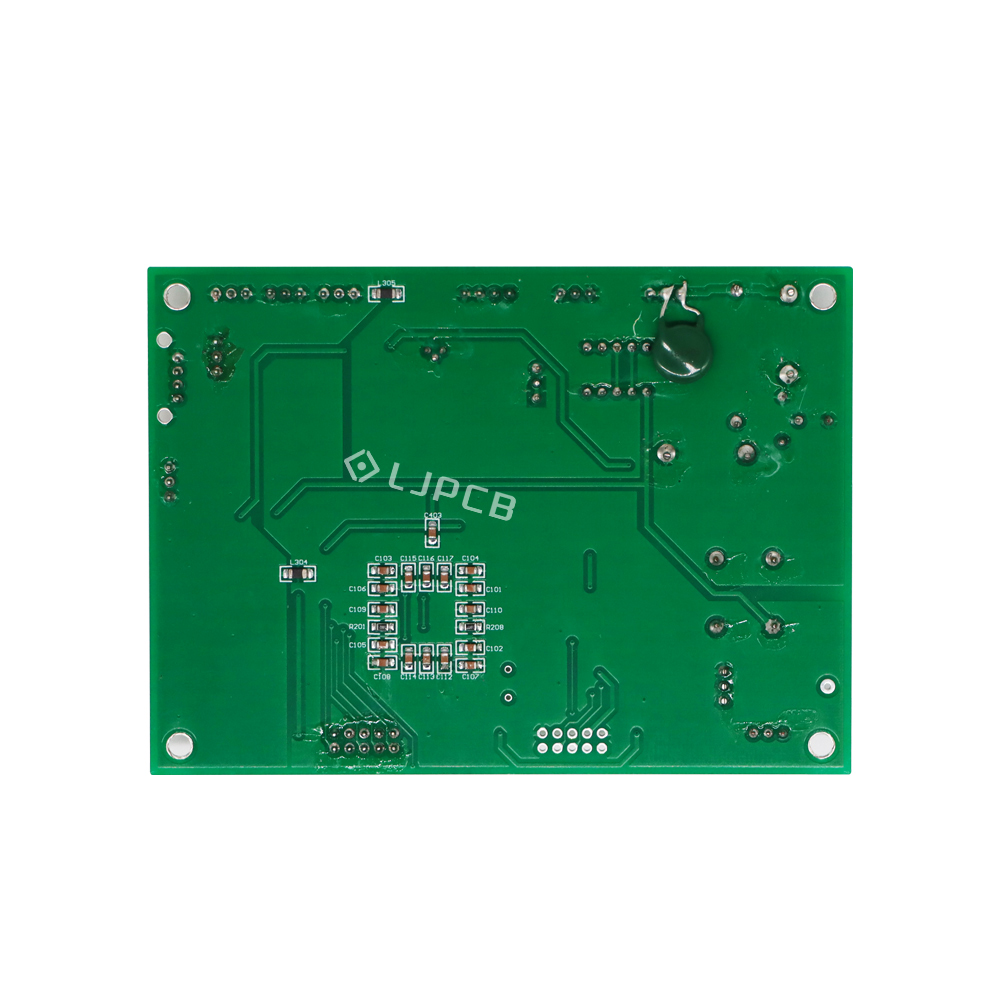

Description: This Industrial Sewing Machine Control Board is designed to provide reliable control and management functions for industrial sewing machines. It integrates a microcontroller, power management circuits, motor and actuator control circuits, signal processing, and multiple I/O interfaces for communication with motors, sensors, foot pedals, control panels, and other machine components. The board supports precise machine operation and stable system control, making it suitable for industrial sewing equipment and automated textile machinery. LJPCB provides one-stop PCB manufacturing and PCBA services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | ENIG 1u" | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR-4 | Test | Flying Probe Test |
