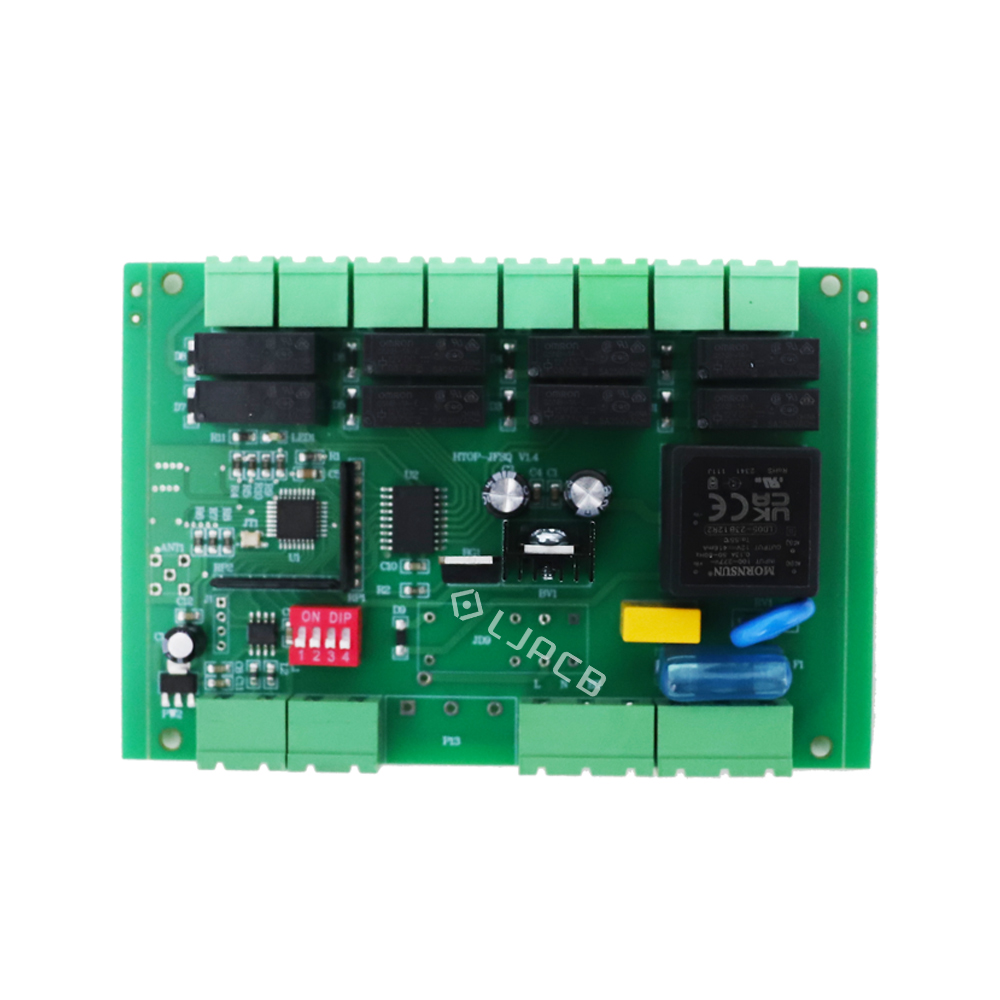

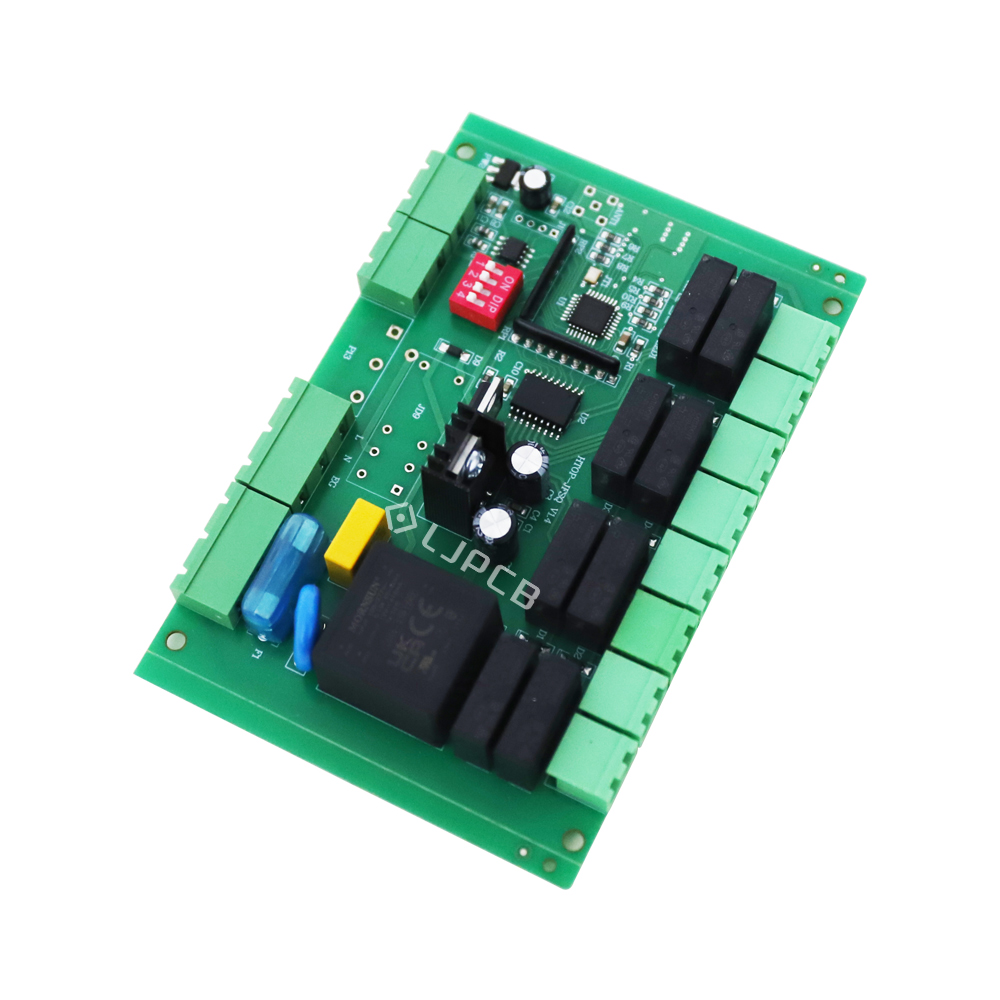

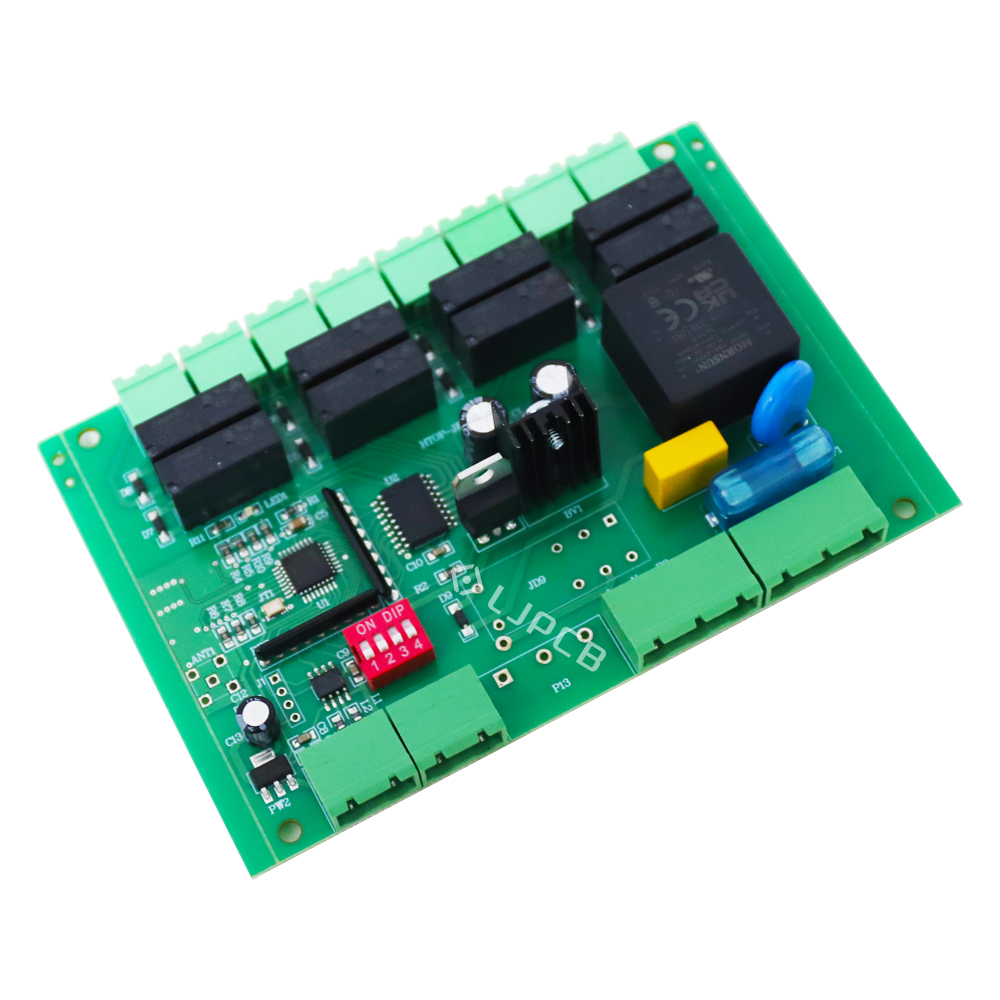

Description: This control board is designed for underfloor heating manifold systems, providing multi-zone control of thermal actuators and heating valves. It integrates an MCU, multiple relays, power protection circuits, and terminal interfaces to manage individual heating loops and coordinate connected thermostats, actuators, pumps, or boilers. LJPCB provides one-stop PCB manufacturing and PCBA services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.
| Layer | 2L | Material Thickness | 1.2mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Routed OutLIne/Punching | V-cut | Test | E-test |
