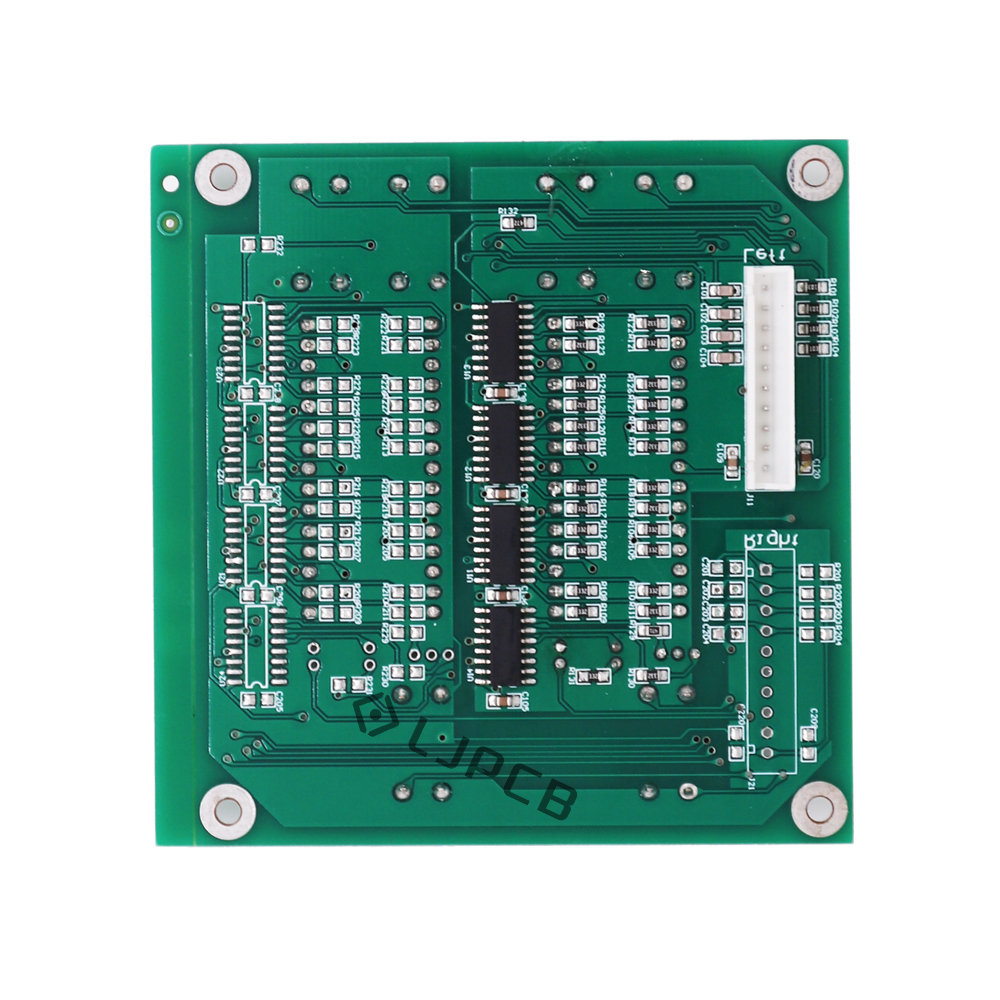

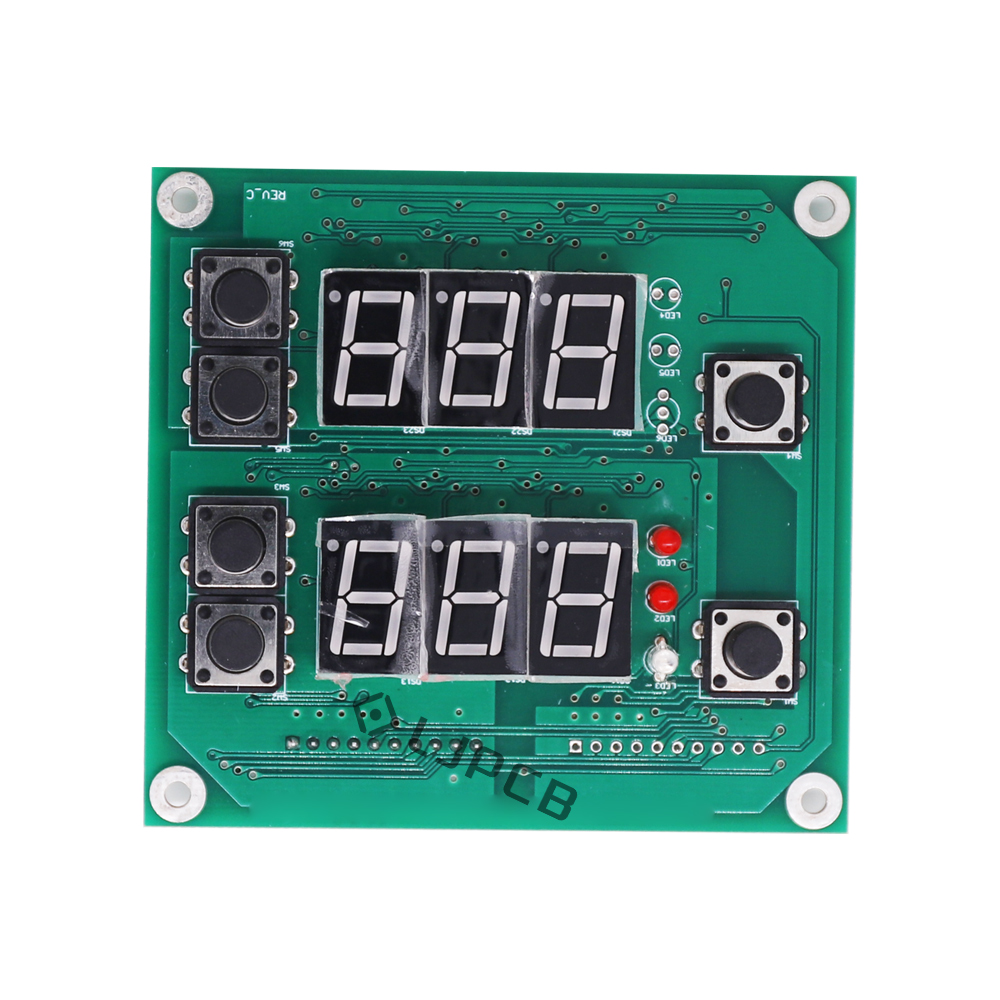

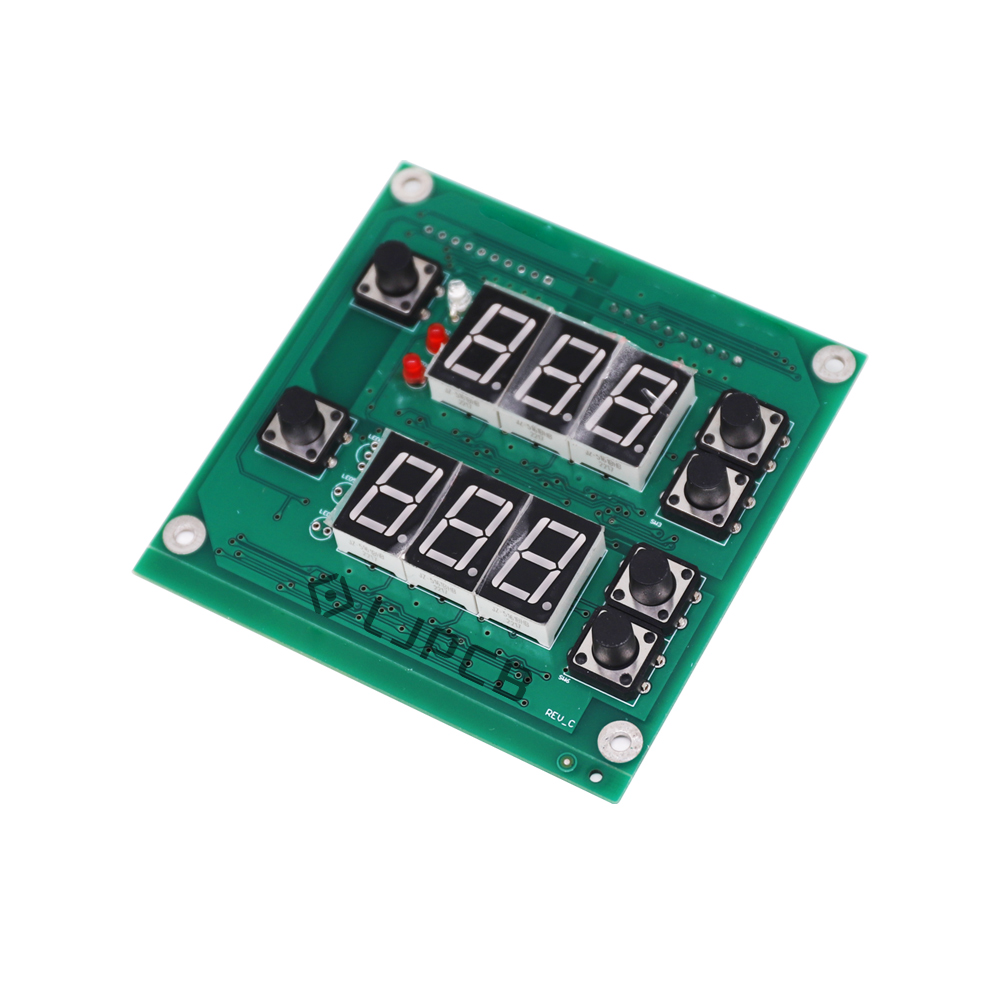

Description: This PCB assembly is designed for temperature control equipment. It integrates LED digital displays, button interfaces, and display driver circuits to provide temperature monitoring, parameter adjustment, and user operation functions. LJPCB provides
one-stop PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey electronics manufacturing solutions.
| Layer | 4L | Material Thickness | 1.6mm |
|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1/1/1/1oz |
|---|
| Solder Mask | Green | Legend Mark | White |
|---|
| Routed OutLine/Punching | CNC+V-Cut | Test | Flying Probe Test |
|---|
| Via | Plug in Vias | | |
|---|
