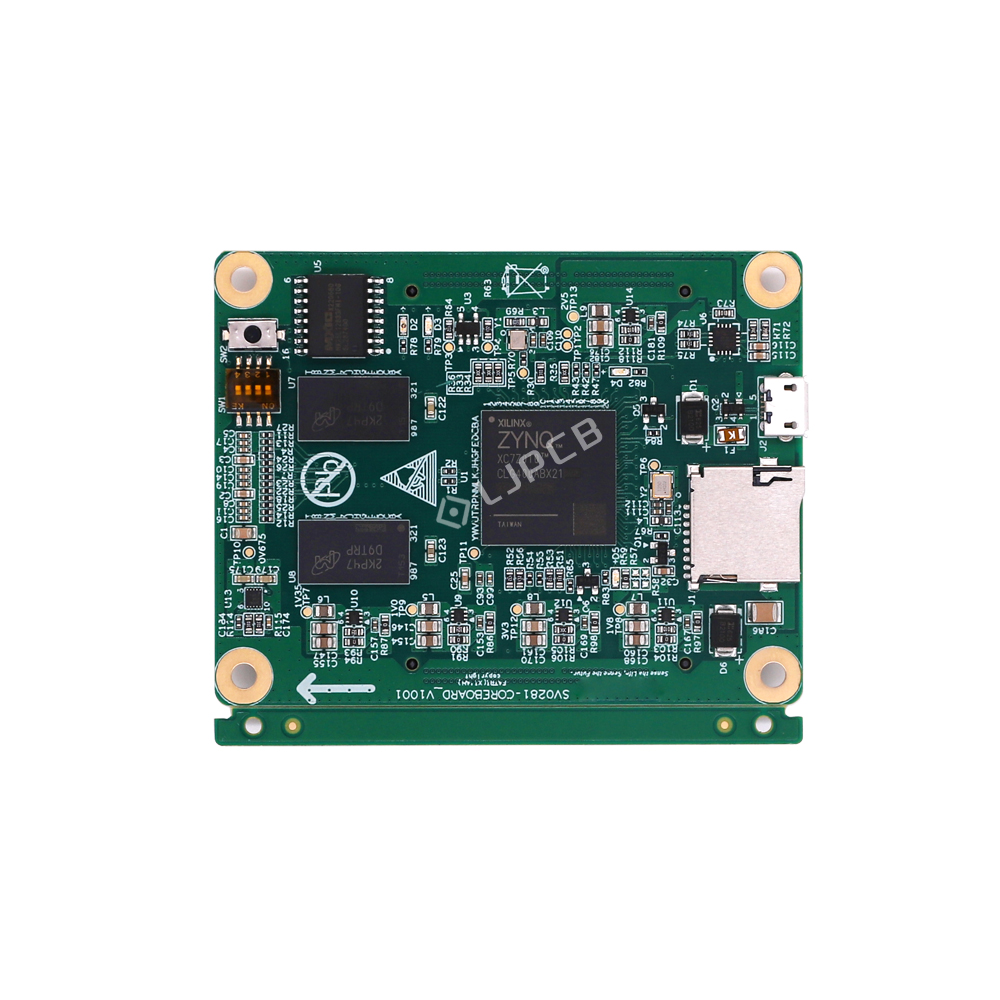

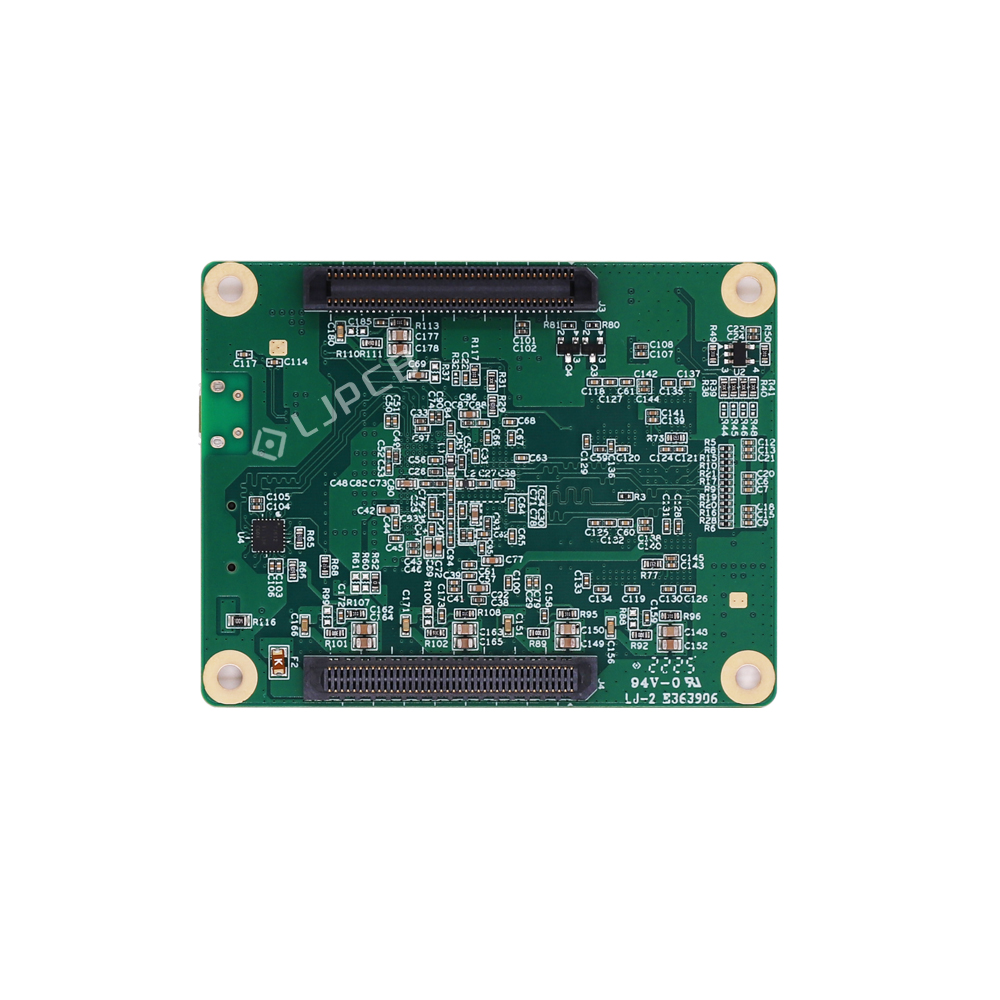

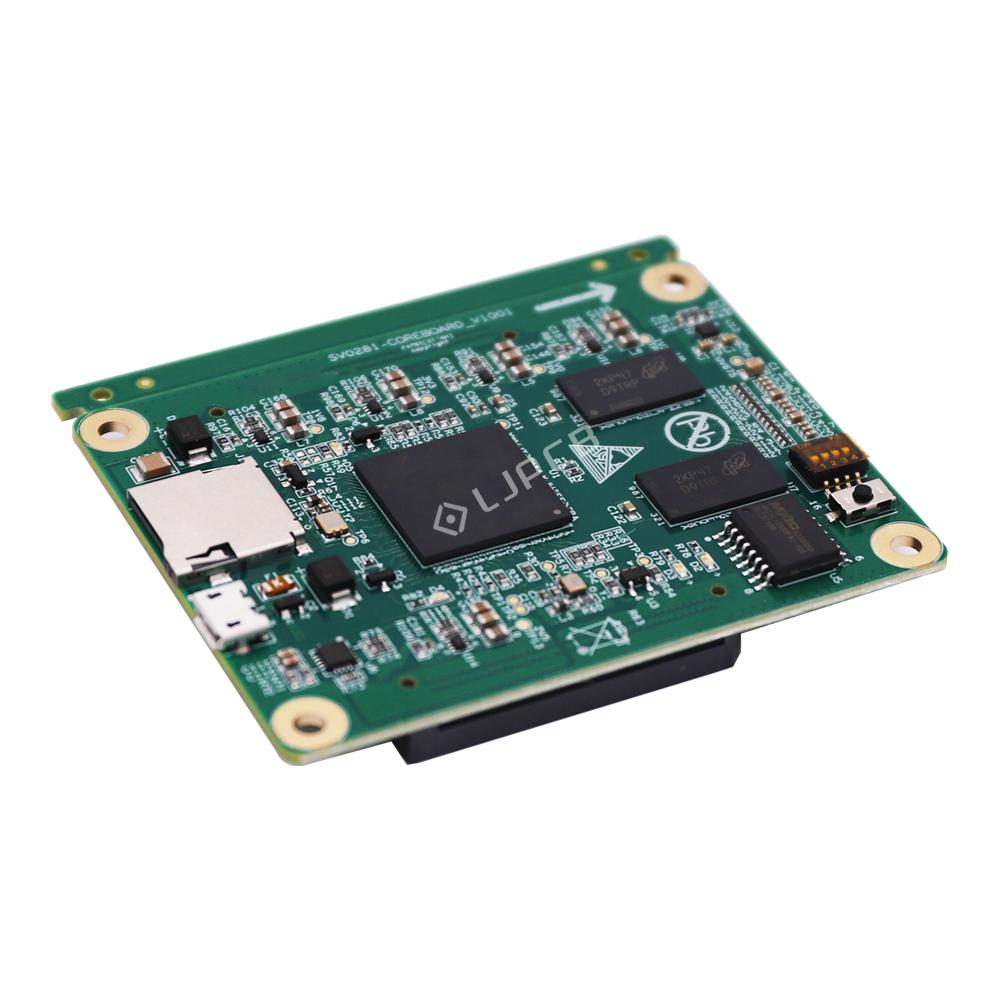

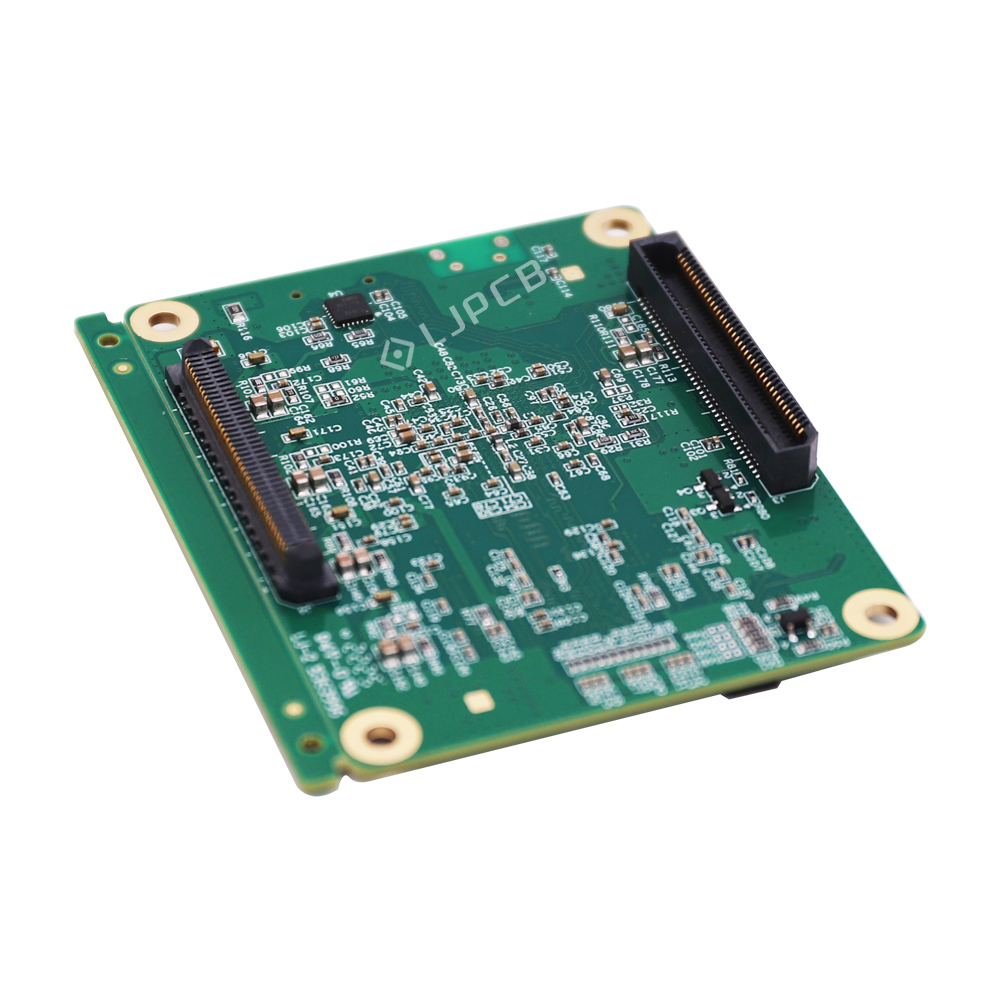

Description: This PCB is an embedded core board based on the AMD/Xilinx Zynq XC7Z010 SoC. It serves as the control and digital signal processing (DSP) core for portable multi-channel data acquisition systems, delivering high-performance processing, real-time control, and high-speed data communication. LJPCB provides one-stop turnkey PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for industrial control equipment and embedded systems.
| Layer | 10L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | ENIG | Finished Copper Thickness | L2/L3/L8/L9: 0.5 Other Inner: 1oz, Outer: 1.6mil |
| Solder Mask | Green | Legend Mark | White |
| Unit Size | 58*75mm | Test | Test-Flying Probe |
