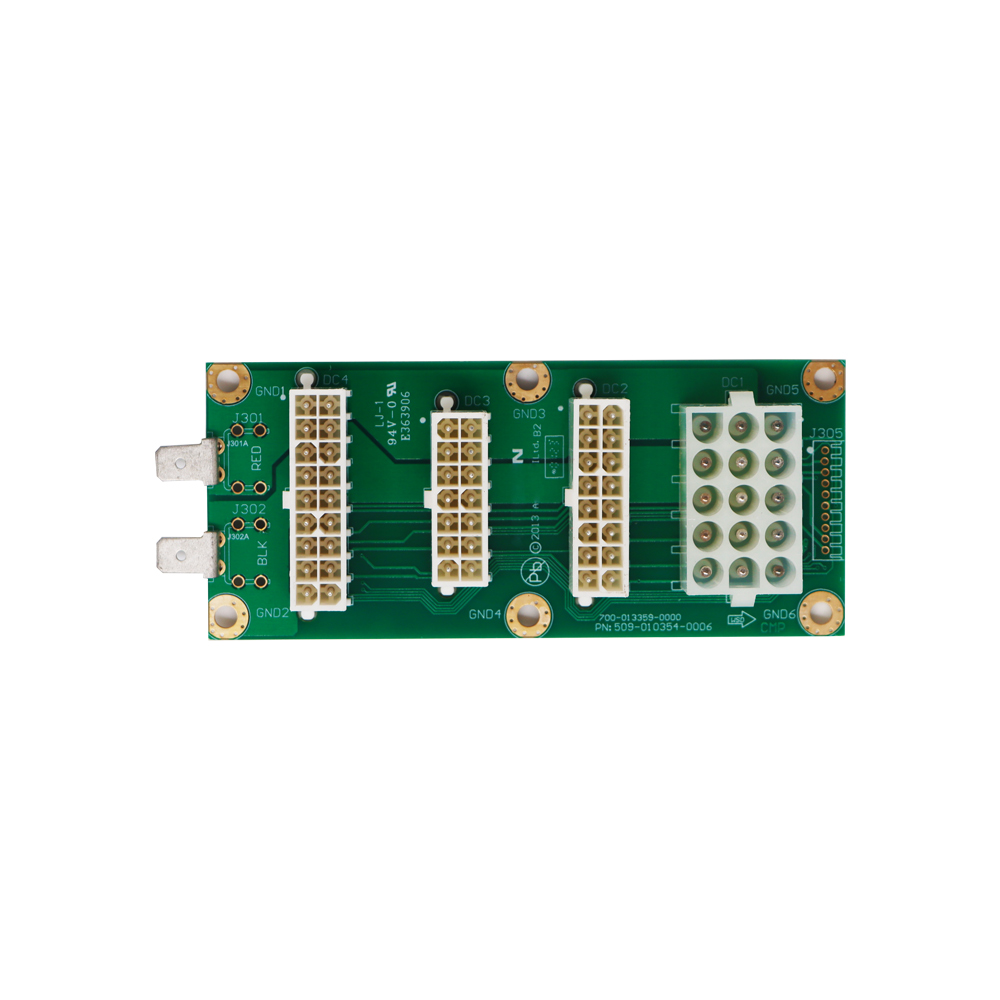

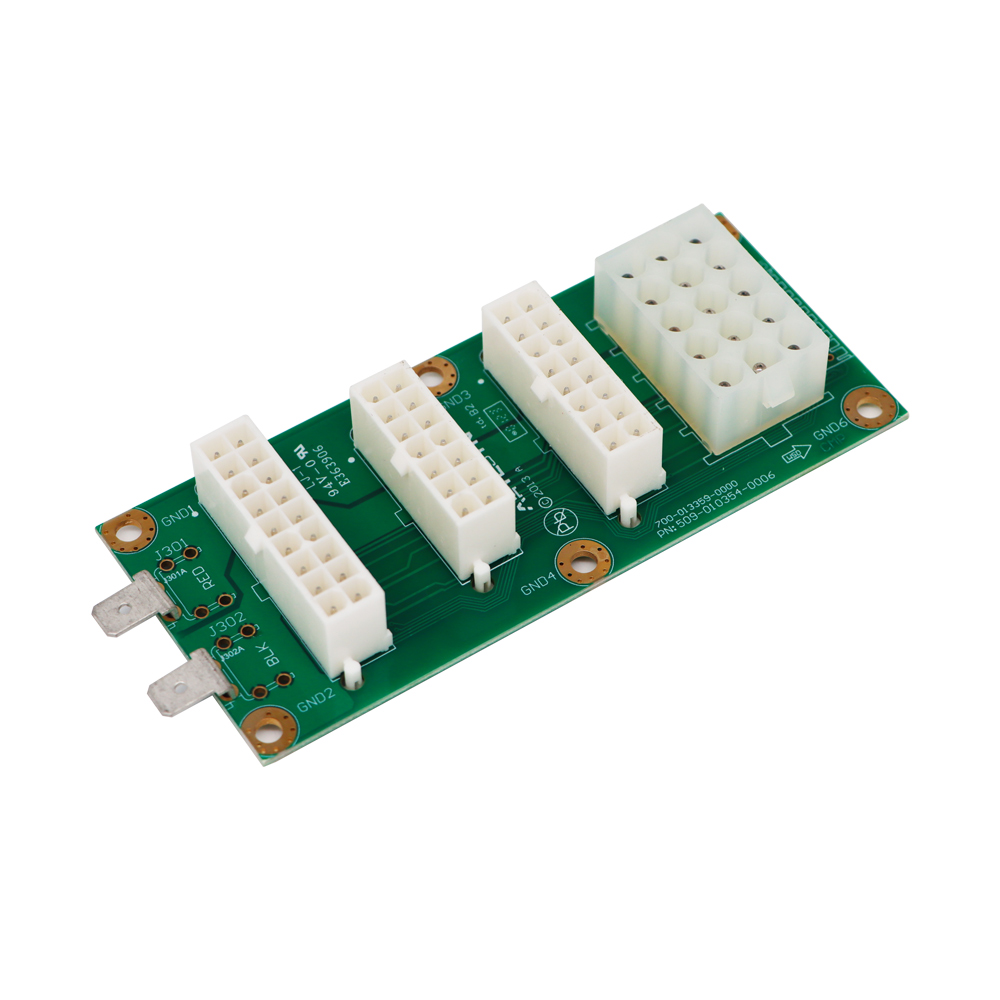

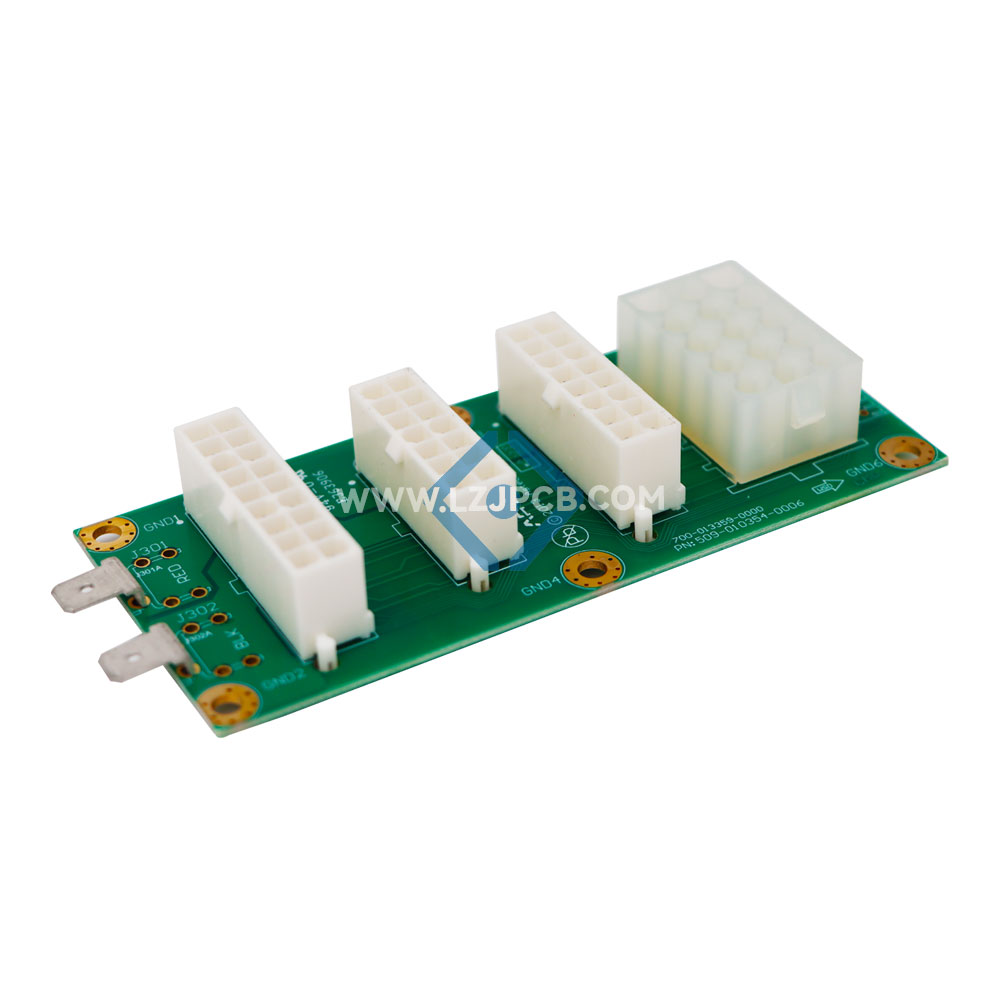

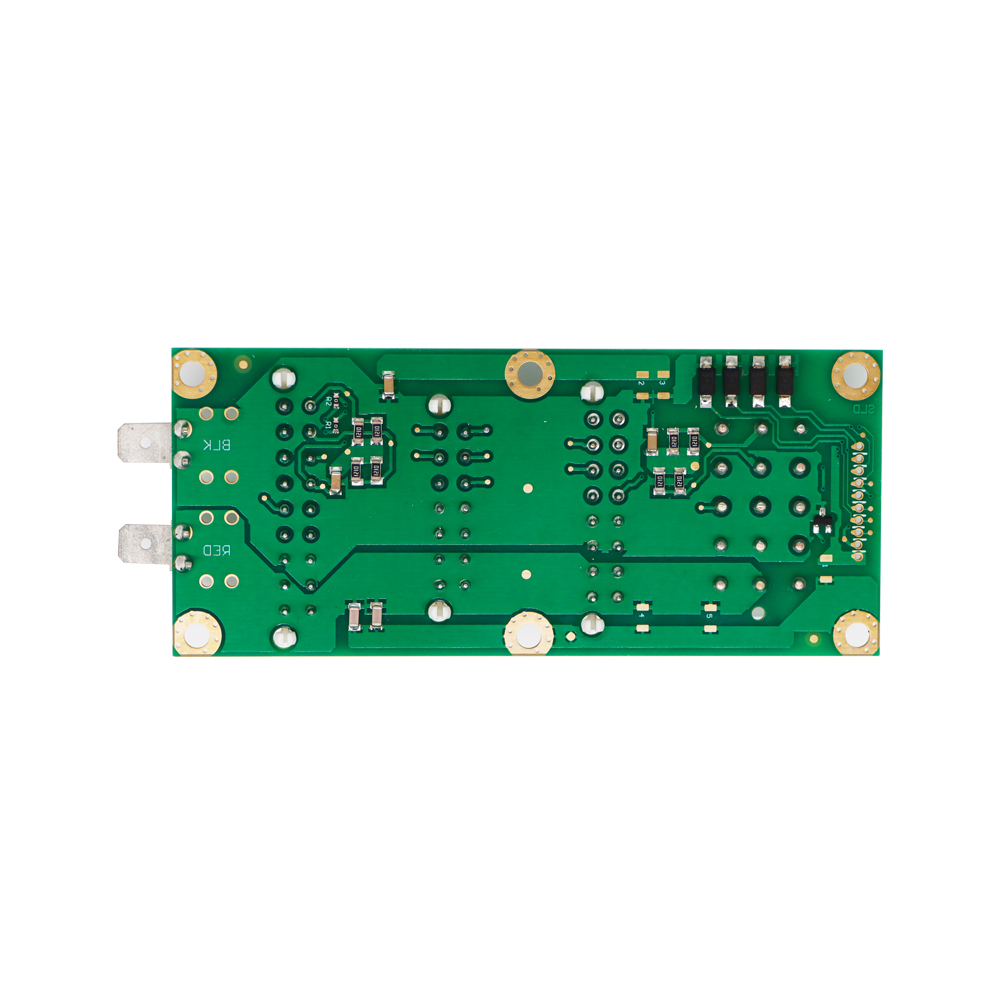

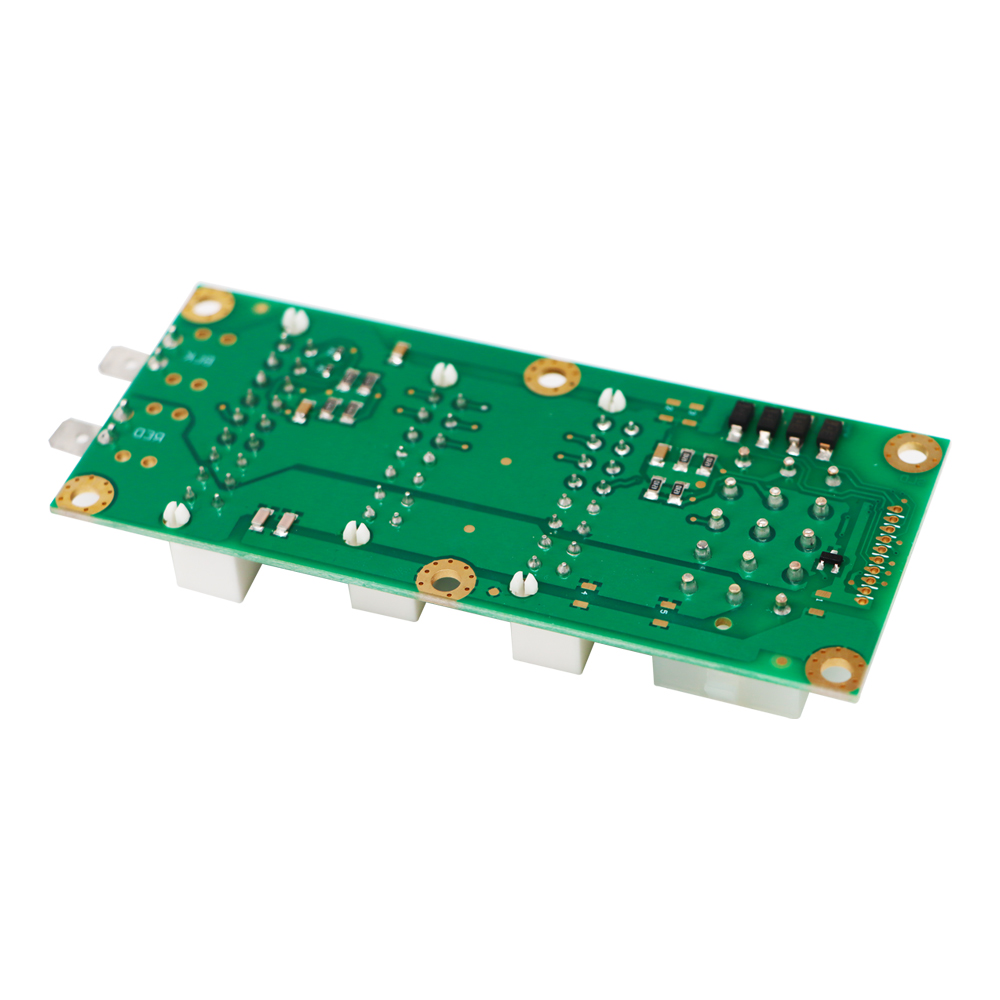

Description: This DC Power Distribution Board PCBA is designed for reliable power routing and multi-channel DC power distribution in electronic and industrial equipment. The board integrates high-current input terminals, multiple DC output connectors, wide copper traces, and protection components to support stable power transmission and efficient current distribution. It is suitable for power interface, power distribution, and centralized DC supply applications in control systems, automation equipment, test systems, and other electronic devices.LJPCB provides professional PCB assembly manufacturing services for power distribution and control boards, including SMT assembly, through-hole assembly, component sourcing, functional testing, and customized PCBA solutions.
| Material | 2L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | ENIG 1u" | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR-4 | Test | Flying Probe Test |
| Routed OutLine/Punching | CNC |
