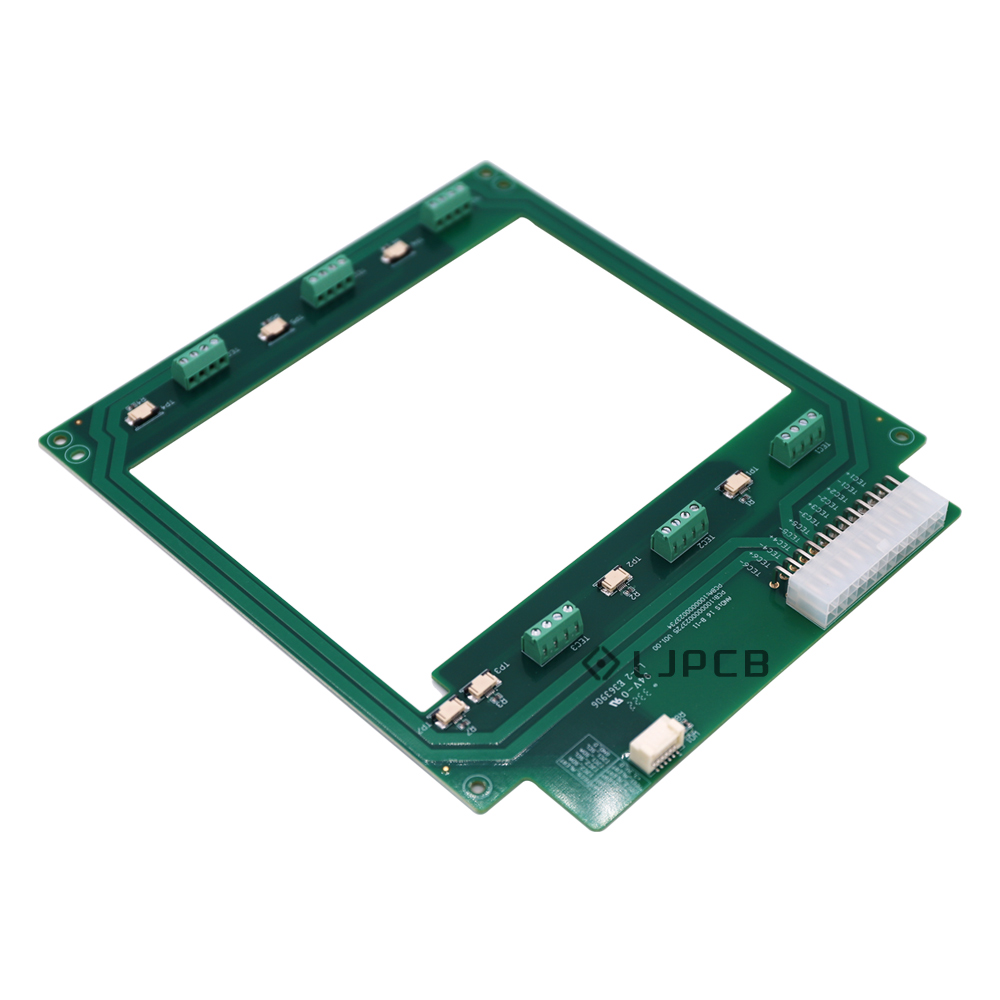

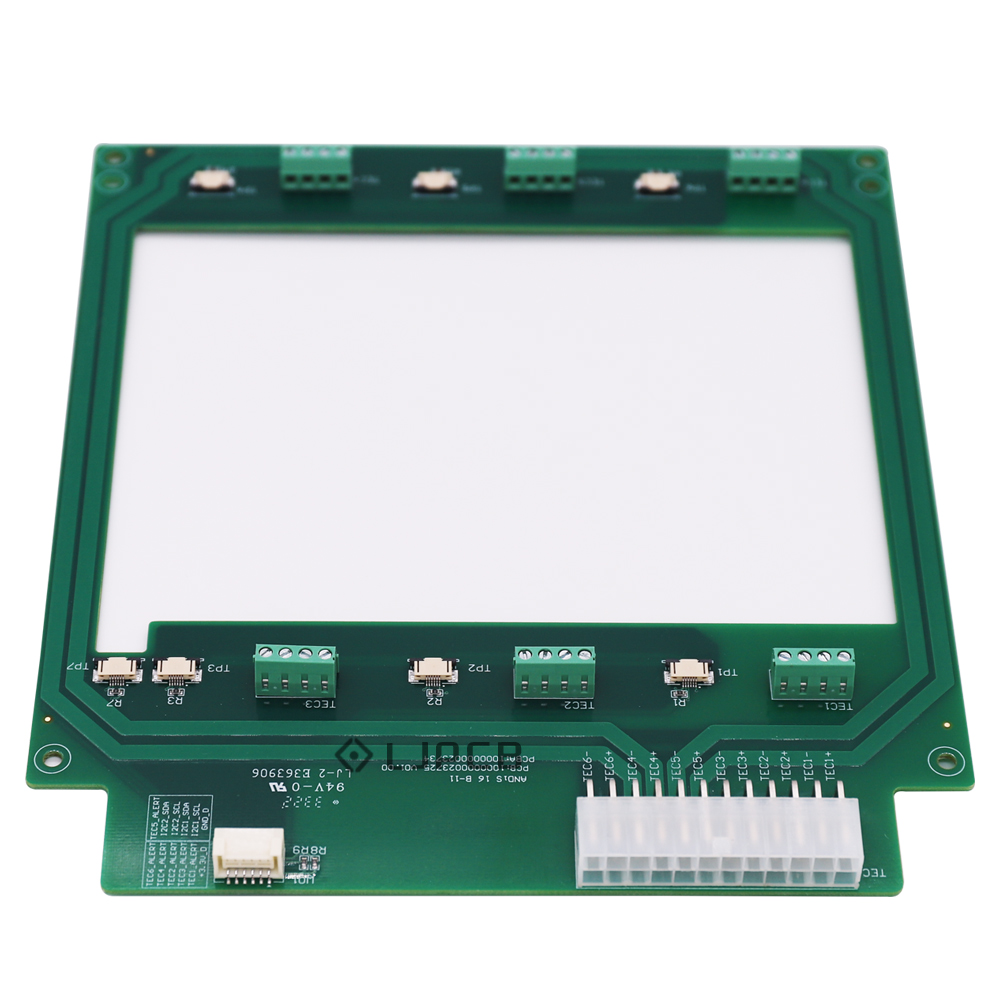

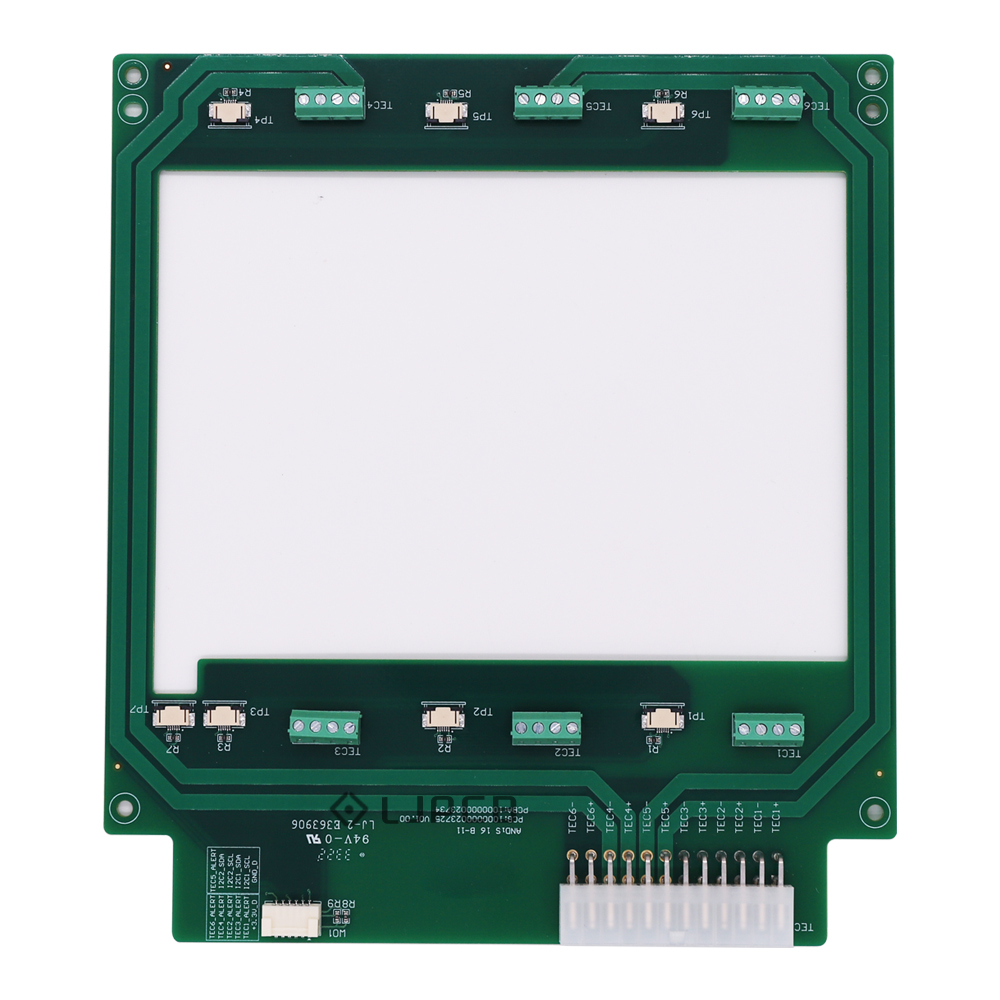

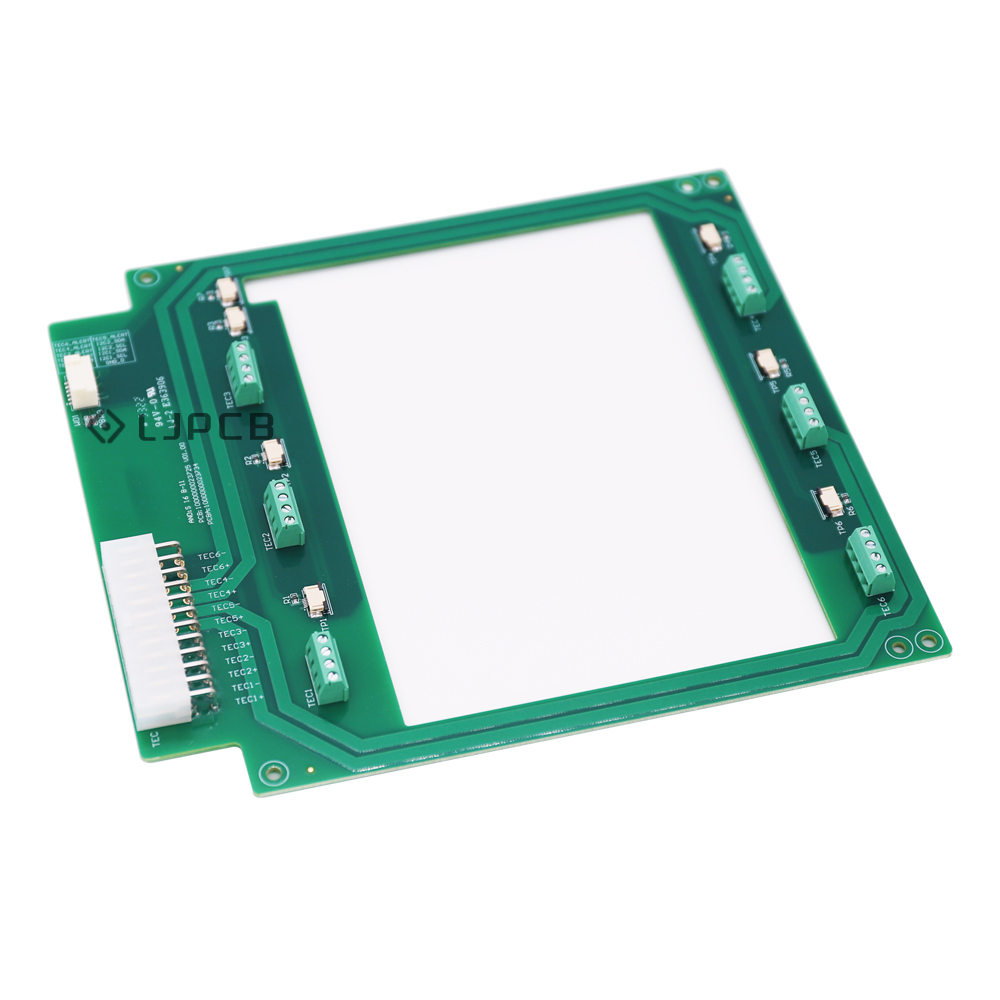

Description: This PCB is used as an interface board for PCR thermal cycling modules, providing power connections, temperature control signal interfaces, and communication links between the PCR module and the main control system. LJPCB provides professional PCB manufacturing and PCB assembly services for medical and diagnostic equipment.
| Layer | 4L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | ENIG 1U" | Finished Copper Thickness | 2oz |
| Solder Mask | Green | Legend Mark | White |
| Hole Copper | 25UM | Test | Flying Probe |
