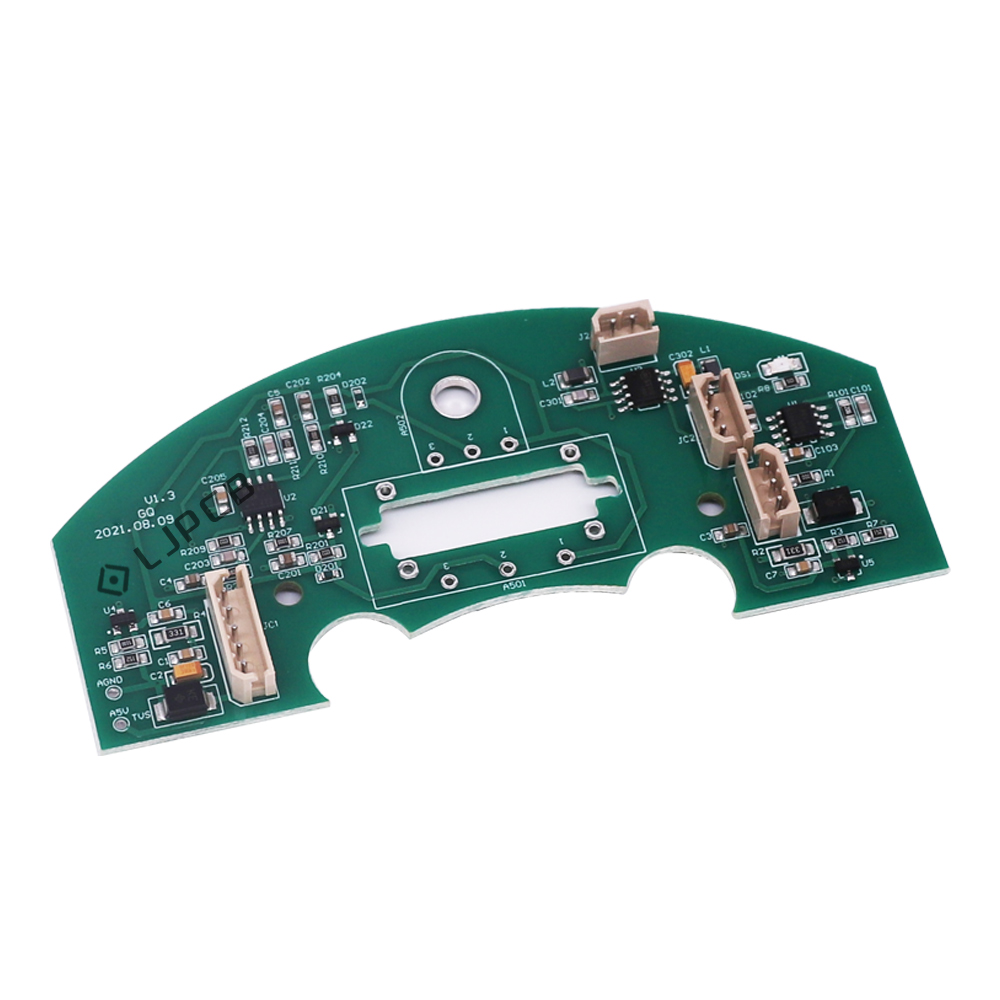

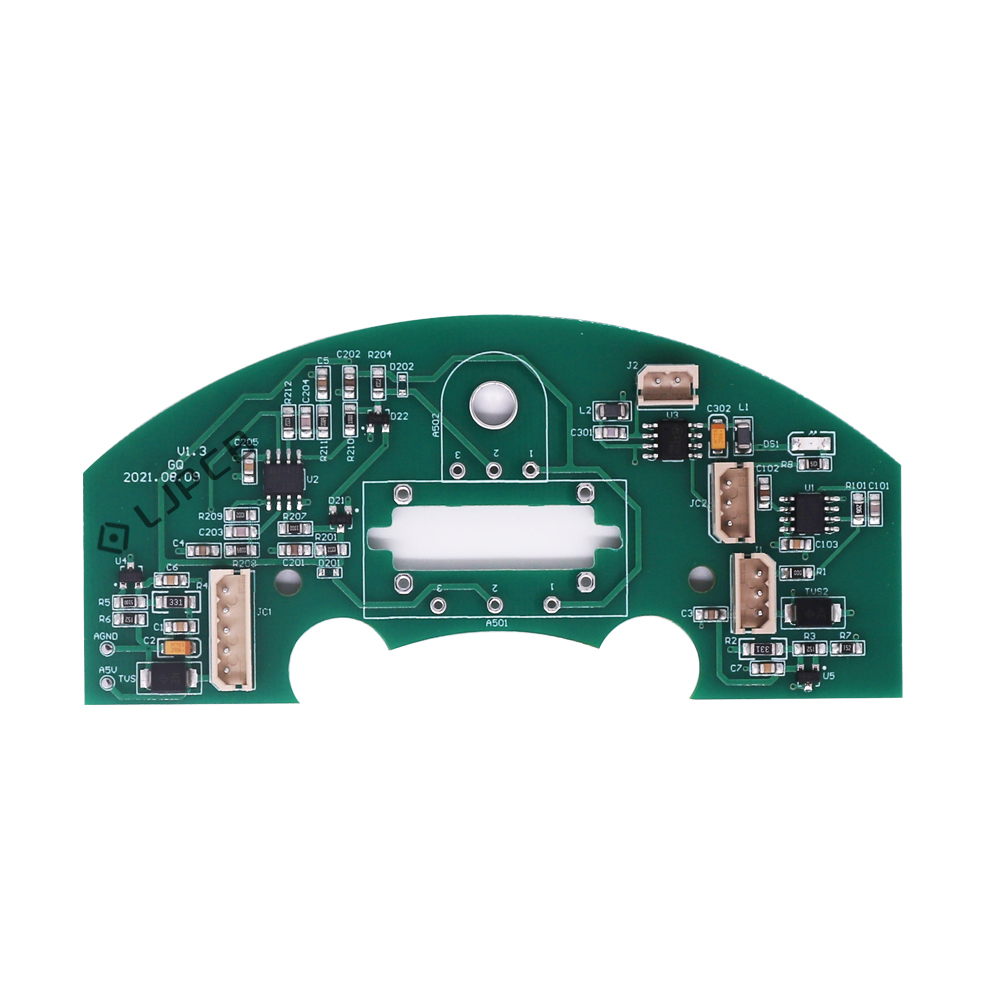

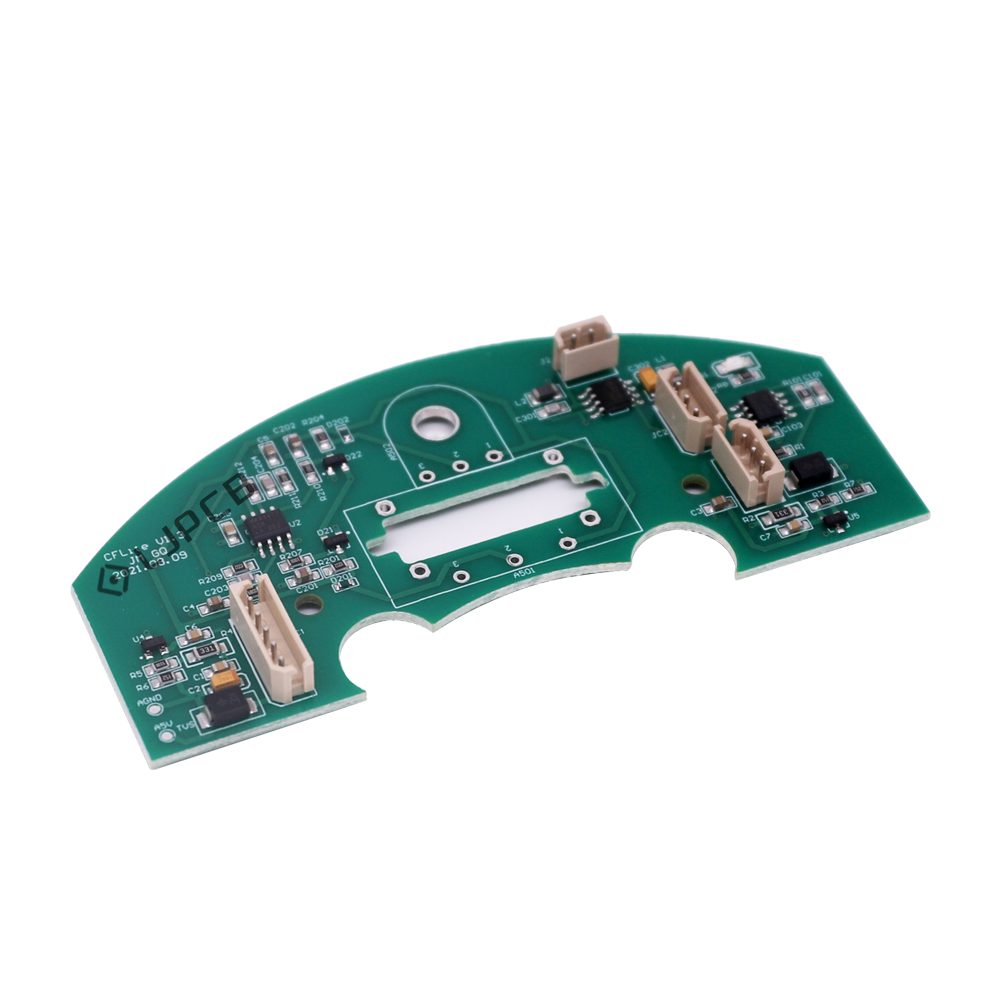

Description: This PCB assembly is designed for electric valve actuator systems and functions as an internal control interface board. It integrates power management, sensor signal processing, position feedback, and communication interfaces to support valve control, status monitoring, and automated operation in industrial fluid control systems.LJPCB provides one-stop
PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey electronics manufacturing solutions.
| Layer | 2L | Material Thickness | 1.6mm |
|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
|---|
| Solder Mask | Green | Legend Mark | White |
|---|
| Unit Size | 103.25*48.59mm | Test | Test-Flying Probe |
|---|
