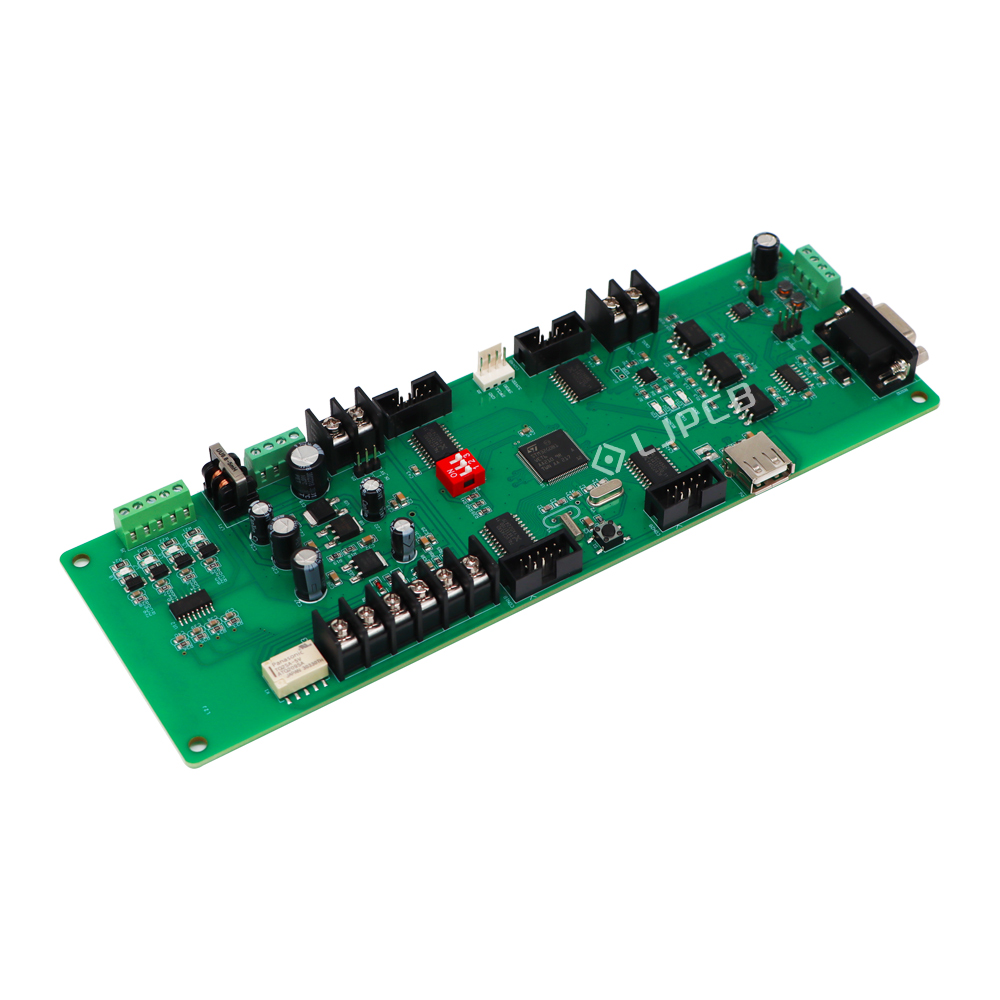

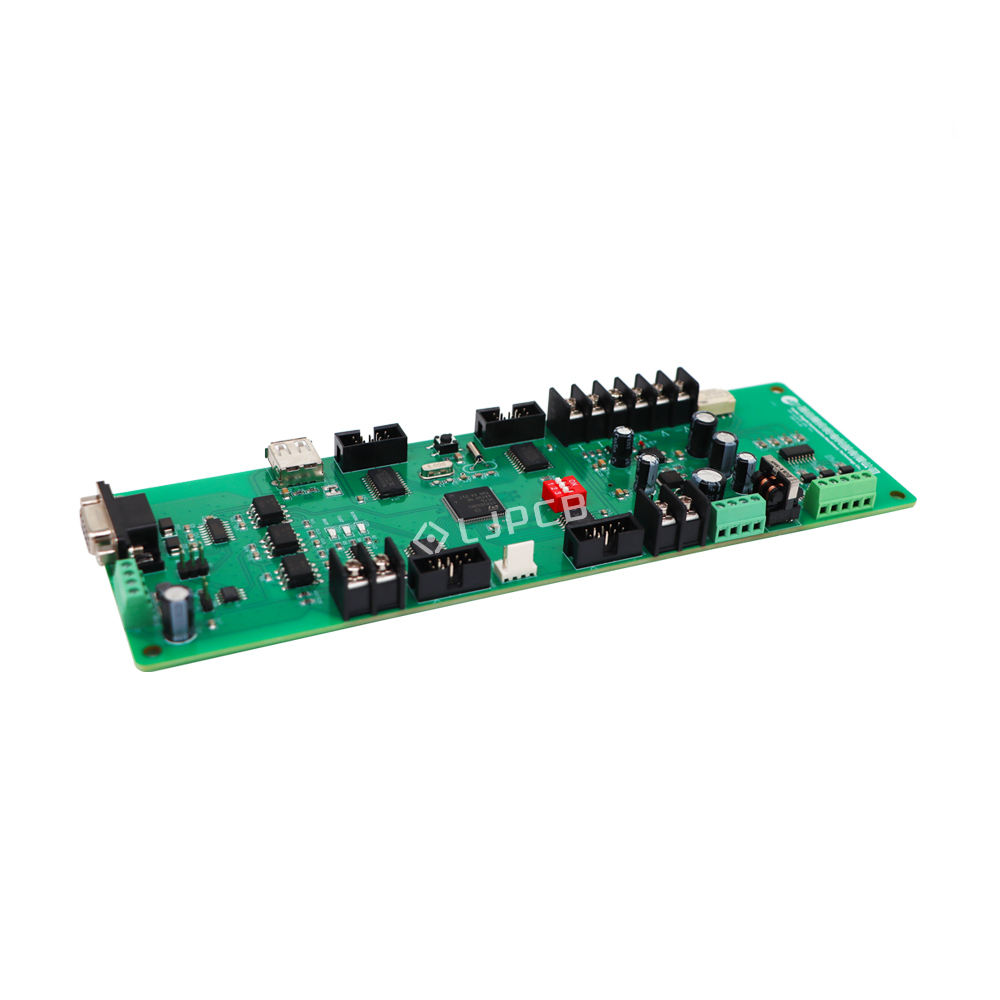

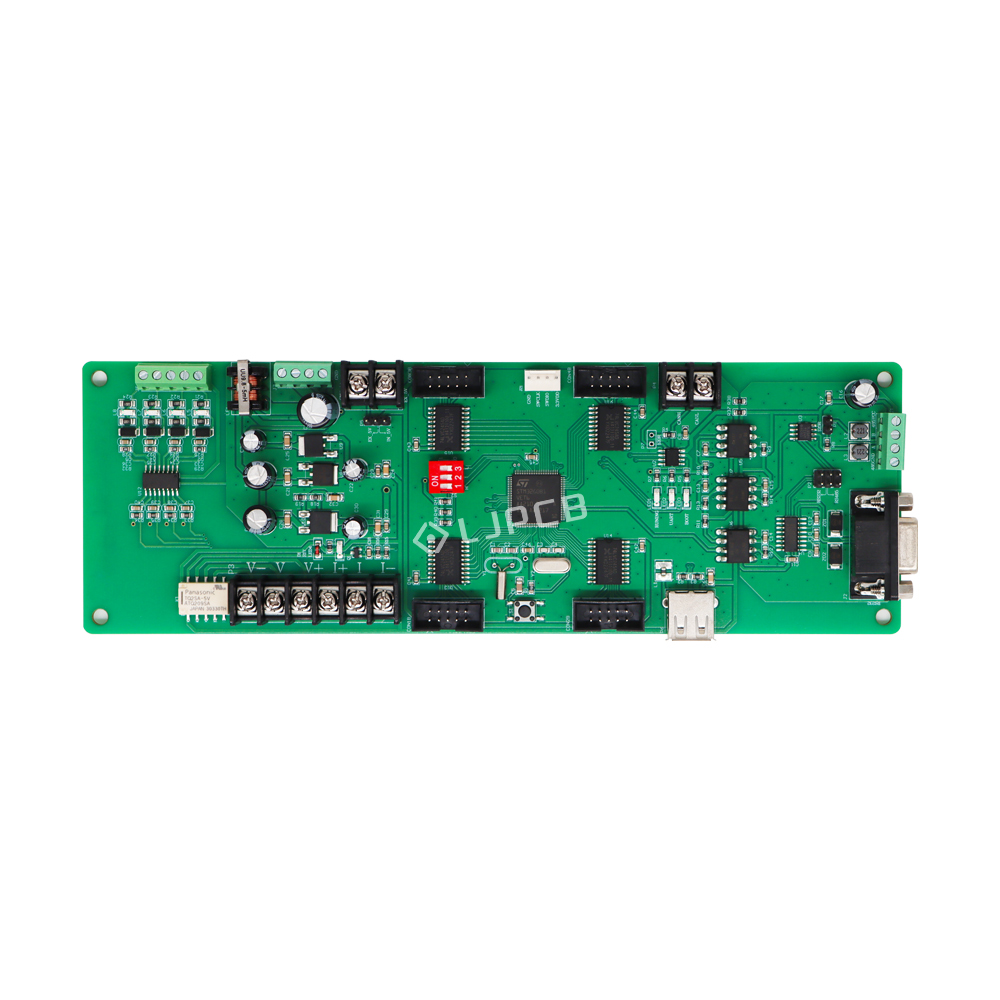

Description: This control board is designed for lithium battery charge and discharge testing equipment. It integrates power control, signal processing, data acquisition, and communication interfaces to manage charging and discharging operations, monitor battery voltage and current, and transmit test data to the main control system. The board supports reliable and precise operation for battery performance testing, capacity evaluation, and production testing applications. LJPCB provides one-stop PCB manufacturing and PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey PCBA solutions.

Layer	2L	Material Thickness	2.0mm
Surface Finishing	LF HASL	Finished Copper Thickness	1oz
Solder Mask	Green	Legend Mark	White
Material	FR4	Test	Flying Probe Test
Routed OutLine/Punching	CNC+V Cut
