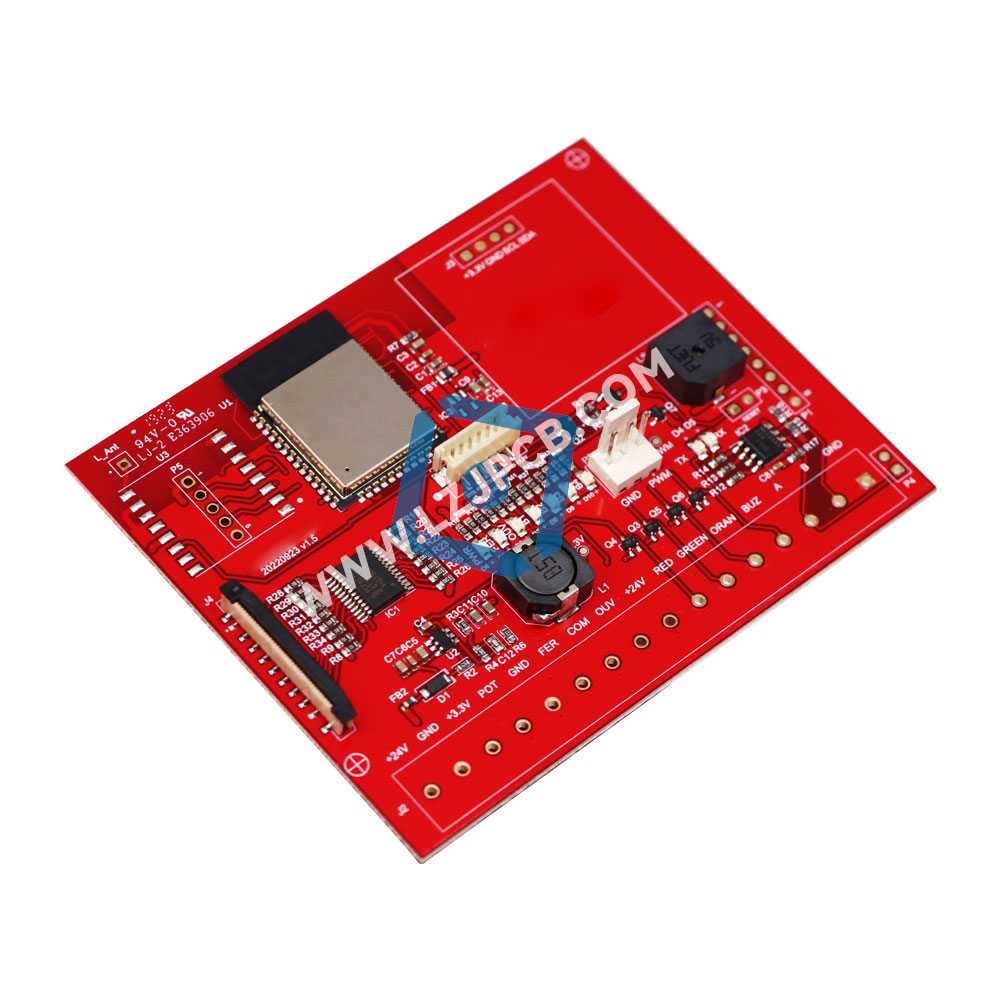

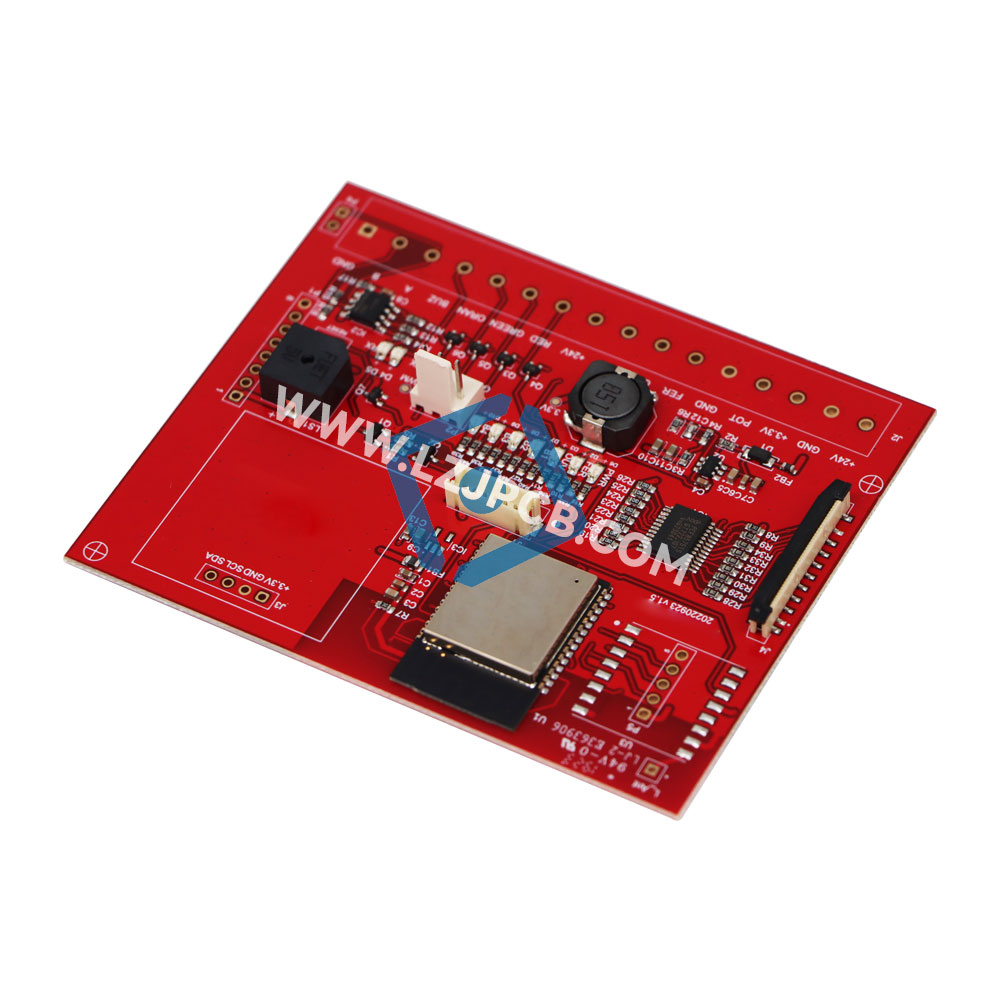

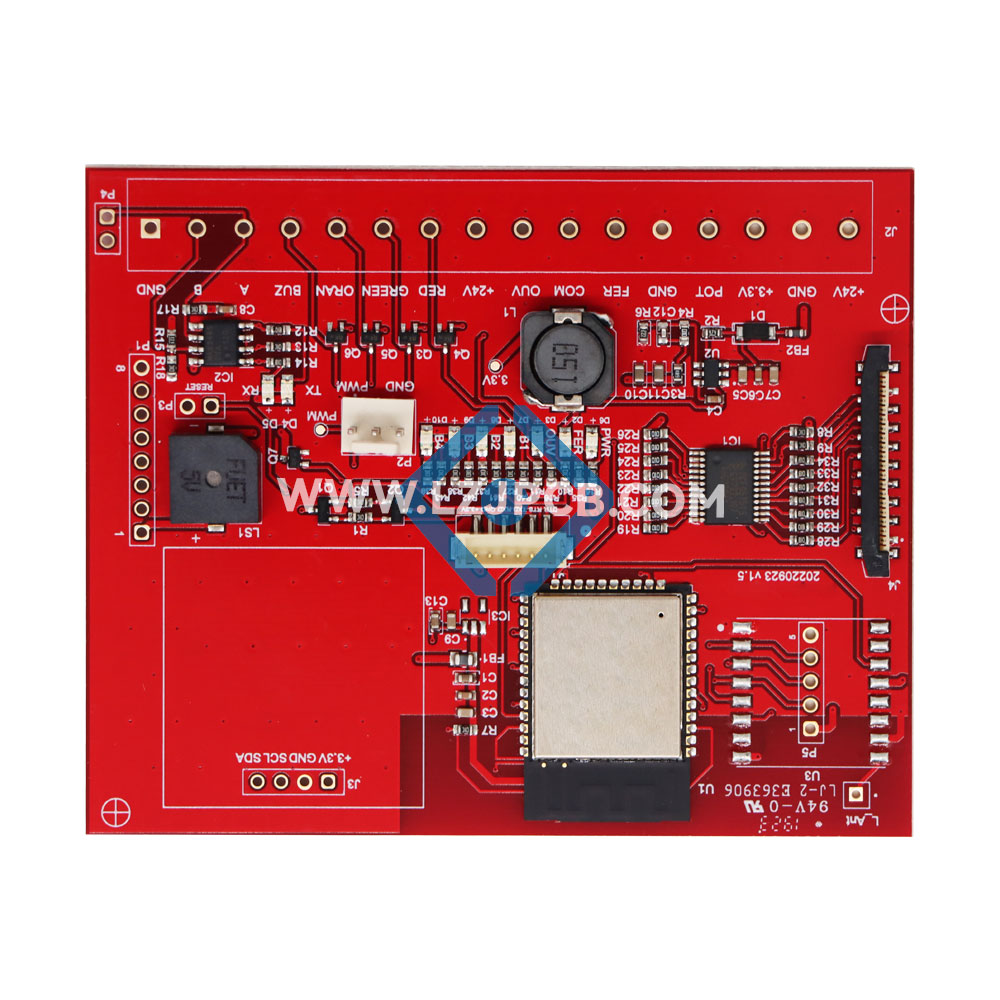

Description: This Smart Fan Control Board is designed for intelligent fan and ventilation systems, integrating power management, fan speed control, wireless communication, and peripheral interfaces on a compact PCB. The board supports 24V power input and PWM-based fan control, enabling precise regulation of fan speed and coordinated operation of connected modules. With reliable power conversion and signal management, it provides stable control for smart ventilation and air circulation equipment. LJPCB provides customized PCB and PCBA manufacturing services for smart fan control boards, supporting component sourcing, SMT assembly, functional testing, and customized production requirements.
| Material | 2L | Material Thickness | 2.0mm |
|---|---|---|---|
| Surface Finishing | HASL Free | Finished Copper Thickness | 2oz |
| Solder Mask | Red | Legend Mark | White |
| Material | FR-4 | Test | Flying Probe Test |
