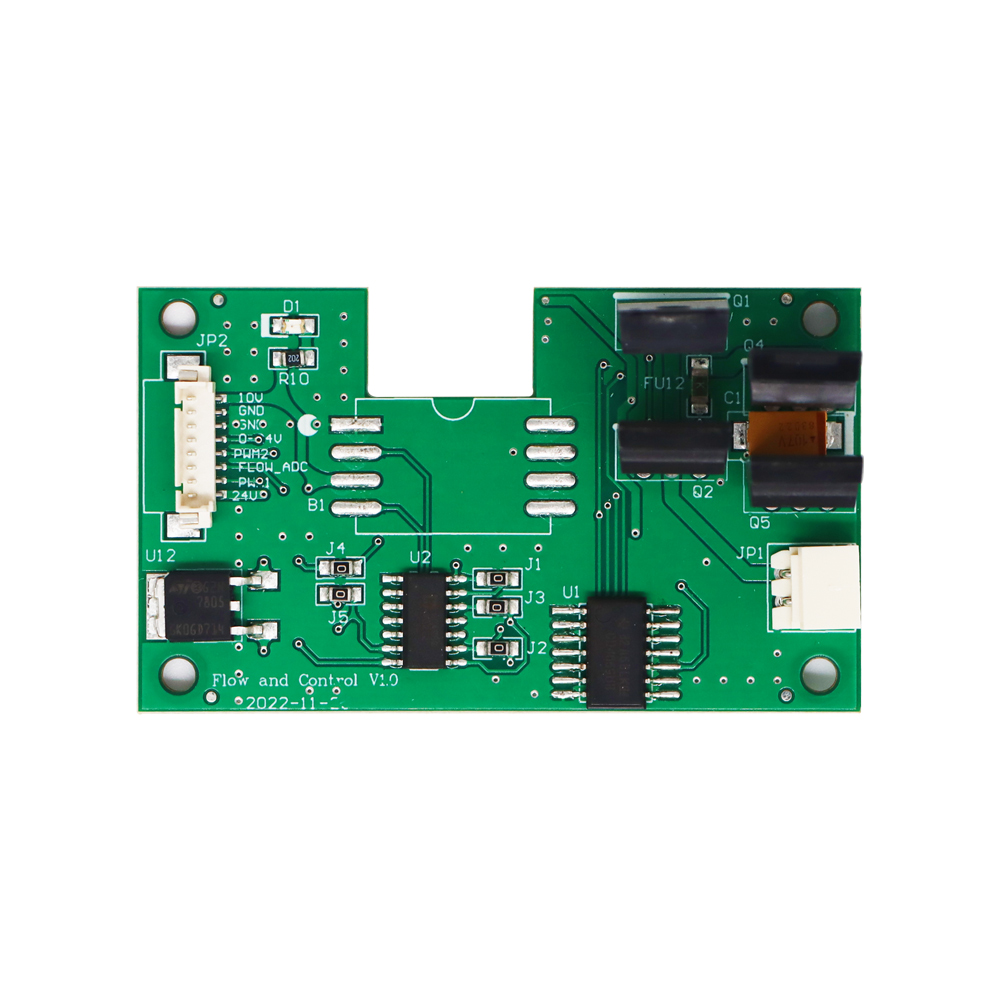

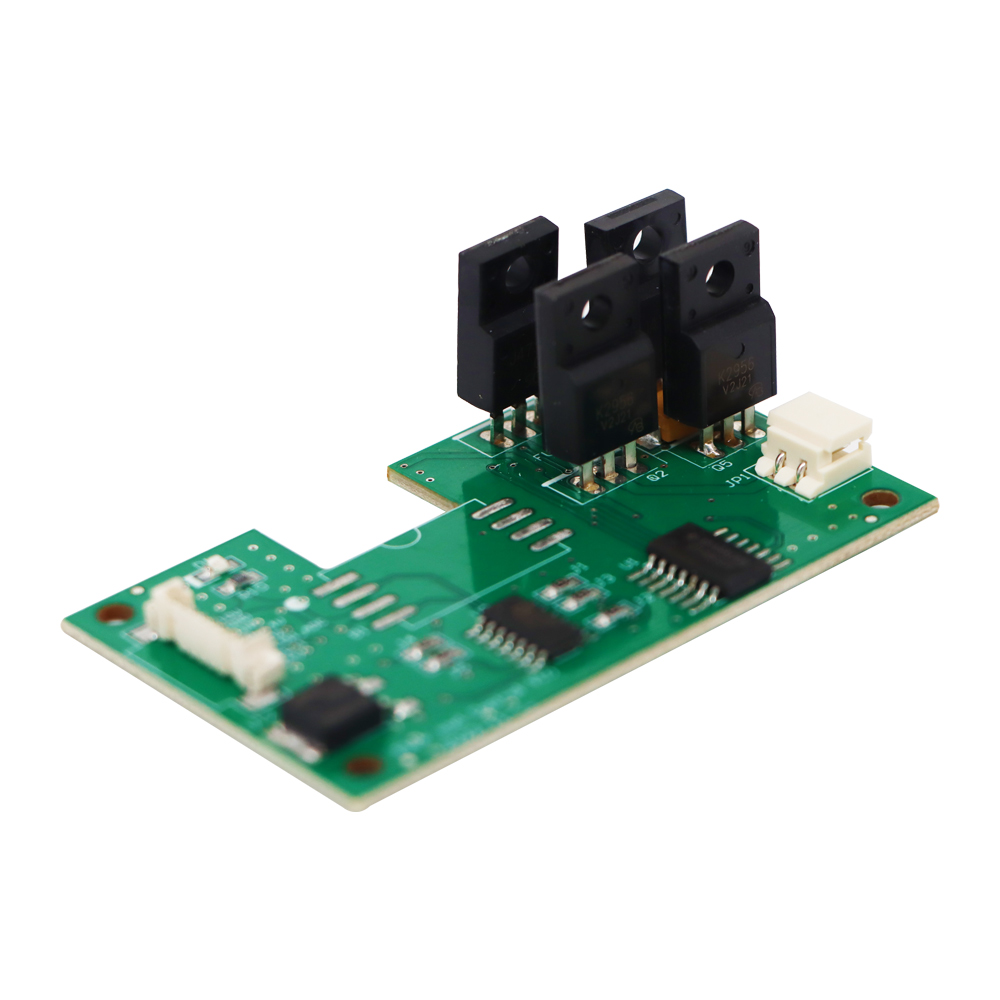

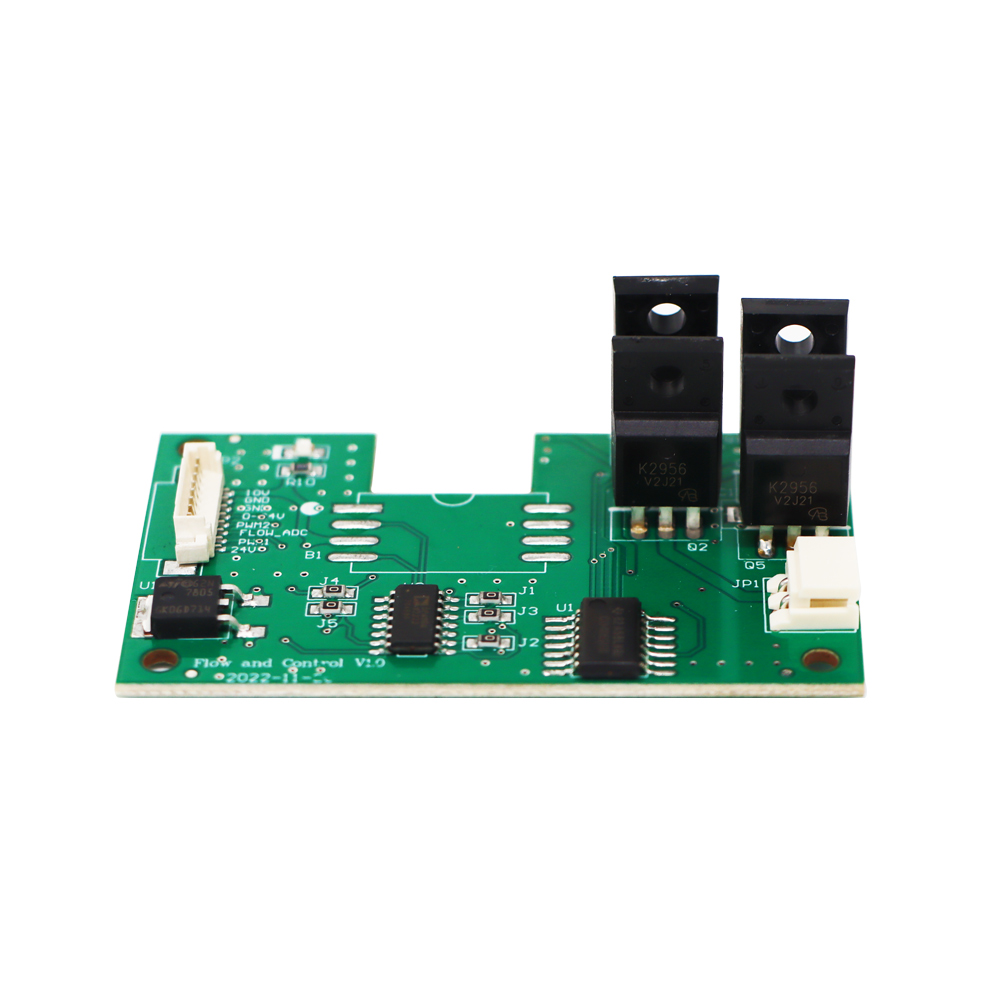

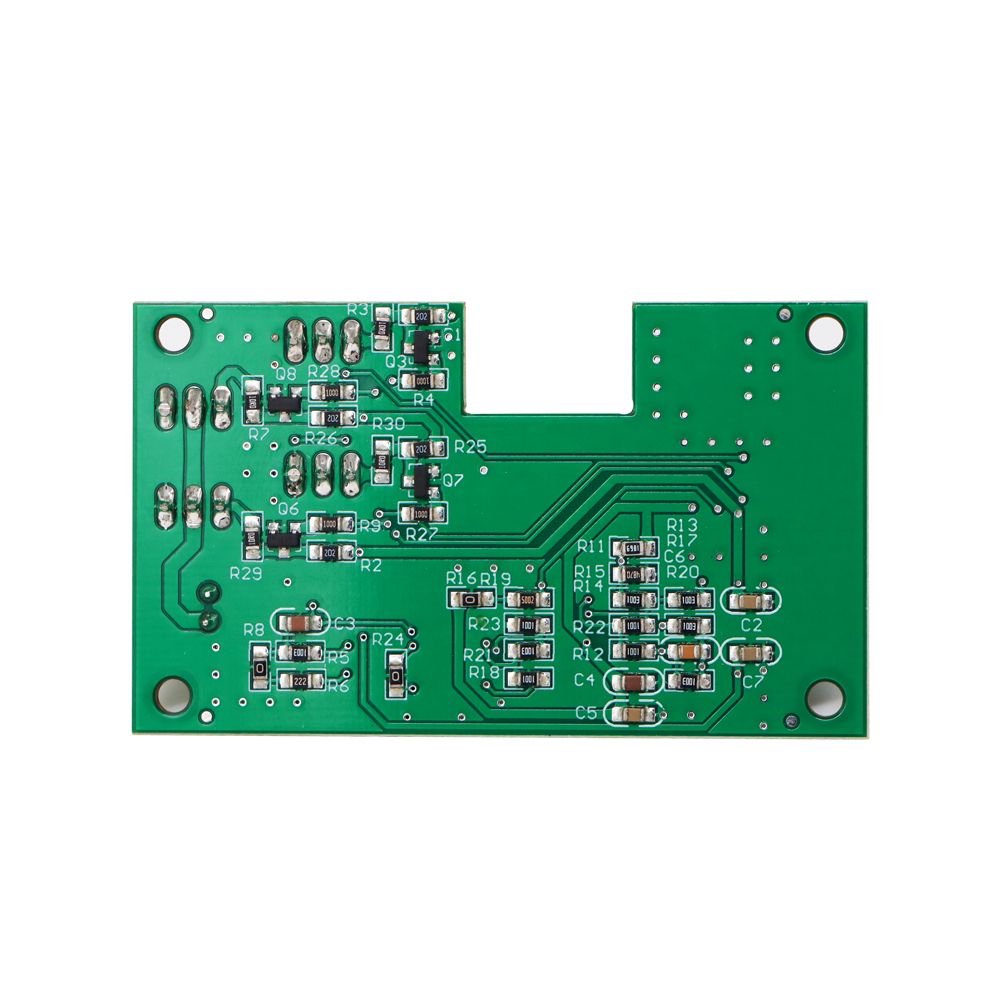

Description: This Flow Meter Control Board PCB Assembly is designed for flow measurement, signal processing, and fluid control applications. The board integrates sensor signal interfaces, PWM control, transistor or MOSFET drive circuits, and communication connections to support accurate flow monitoring and coordinated control of pumps, valves, or other fluid-handling components. It is suitable for flow meters, liquid dispensing systems, industrial fluid control equipment, dosing systems, and other measurement and automation applications. LJPCB provides professional PCB assembly manufacturing services for flow meter and industrial control boards, including SMT assembly, through-hole assembly, component sourcing, functional testing, and customized PCB assembly solutions.
| Material | 2L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | HASL Free | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR-4 TG130 | Test | Flying Probe Test |
| Routed OutLine/Punching | CNC+V-cut |
