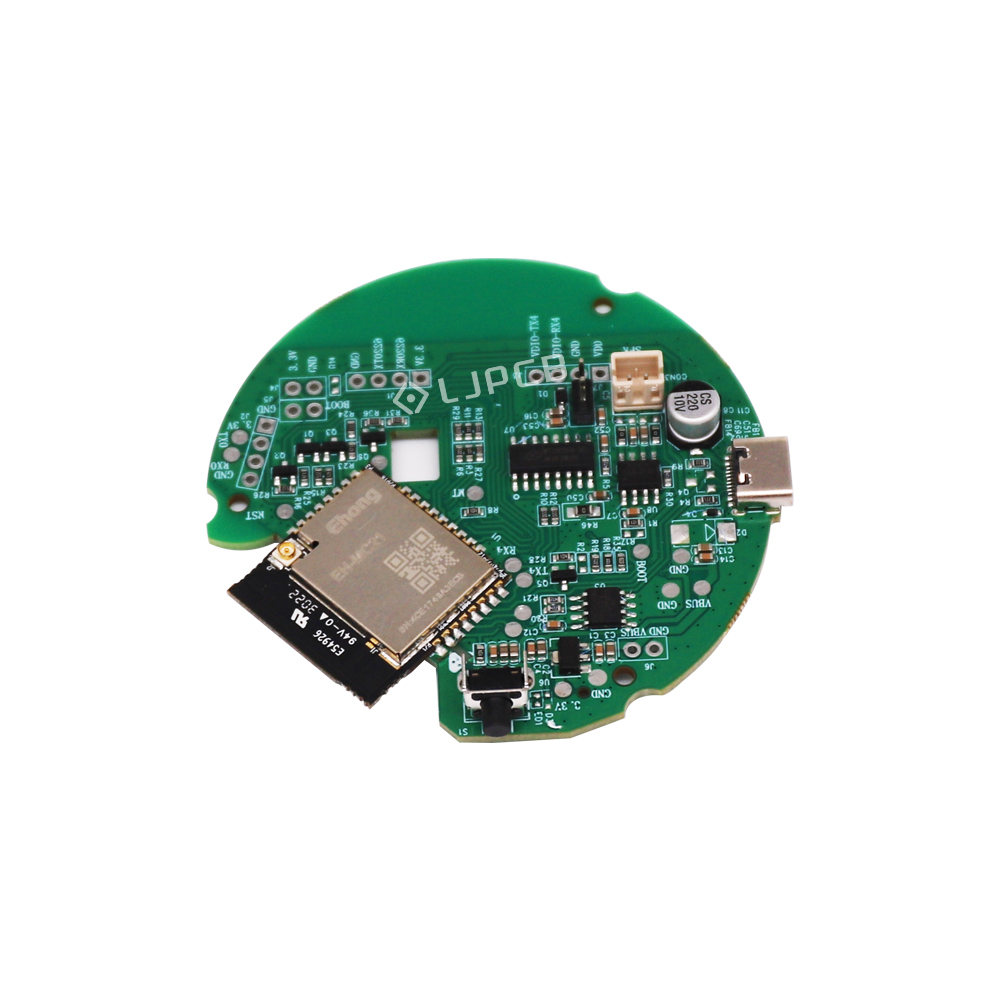

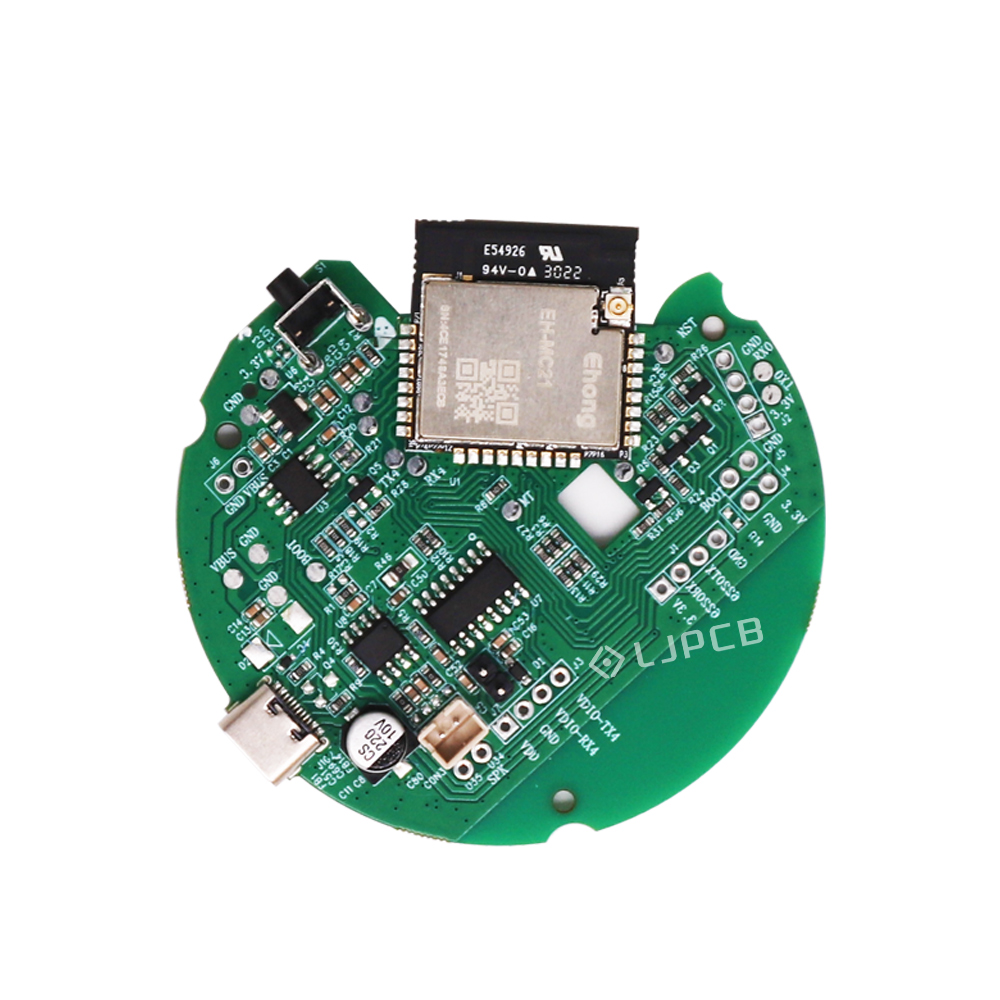

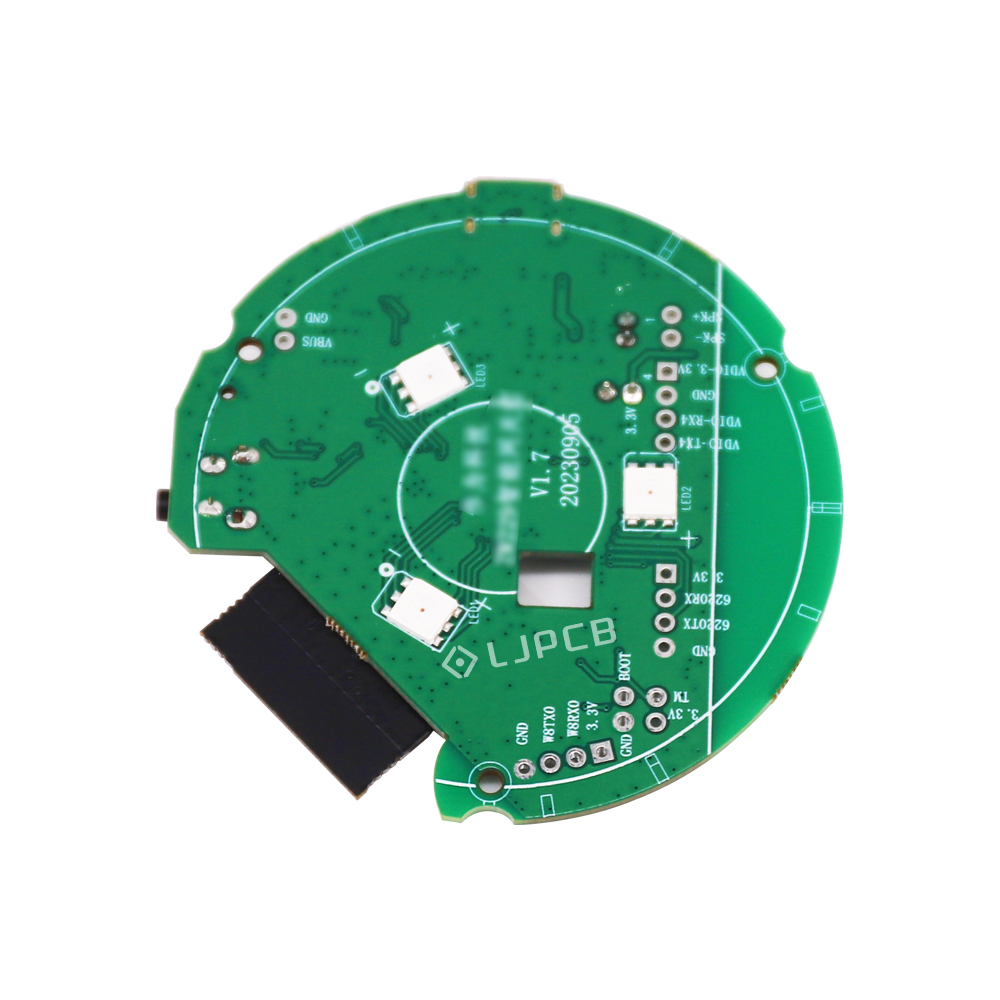

Description: This smart lighting gateway PCBA integrates lighting control and wireless gateway functions into a compact control unit for smart ceiling lights, LED fixtures, and other connected lighting products. The board features an integrated Wi-Fi and Bluetooth Mesh gateway module, enabling wireless connectivity, cloud communication, and Bluetooth Mesh networking with compatible smart lighting devices, sensors, switches, and other IoT peripherals.The PCBA incorporates power management, wireless communication, serial interfaces, speaker connectivity, reset and programming interfaces, and multiple expansion ports. It can support communication with LED driver boards and other peripheral modules, providing a flexible platform for smart lighting control and IoT applications. LJPCB provides one-stop PCB manufacturing and PCBA services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions for smart lighting and IoT devices.
| Layer | 2L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1OZ |
| Solder Mask | Green | Legend Mark | White |
| Routed OutLine/Punching | CNC | Test | Flying Probe Test |
