Description: This

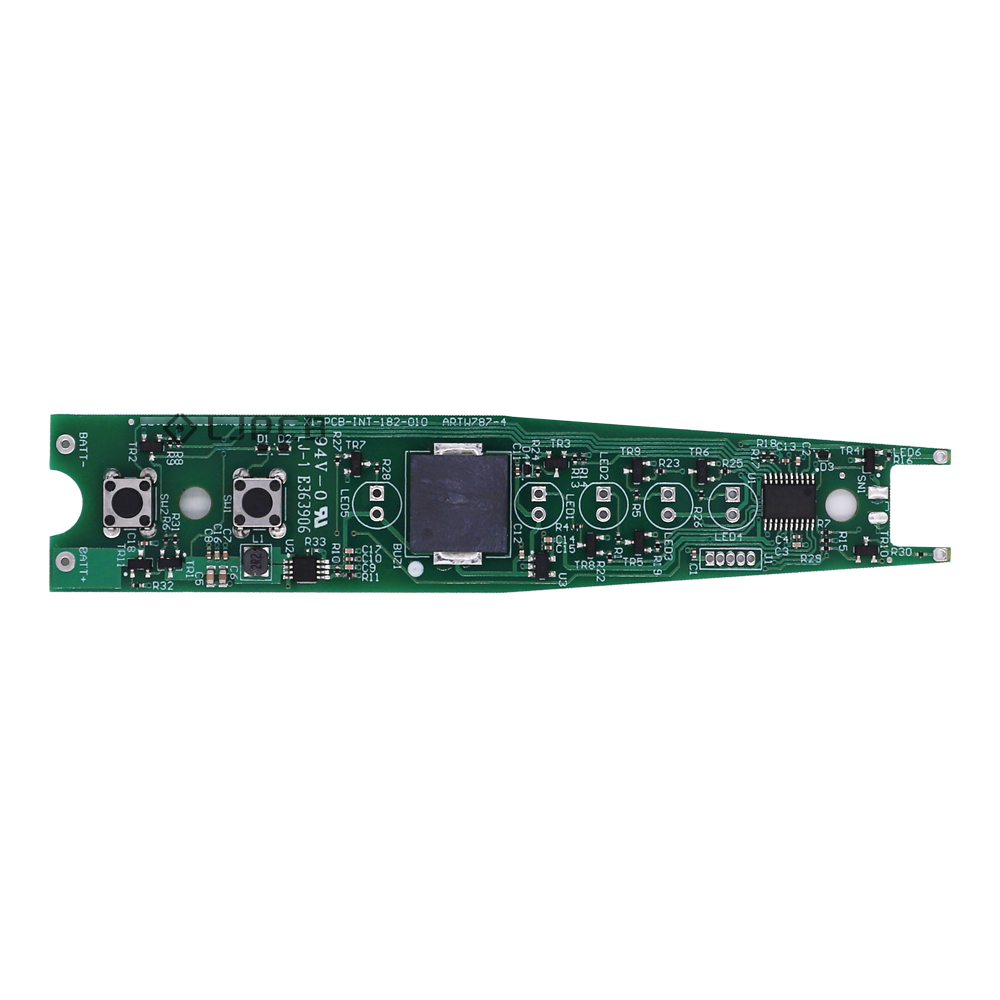

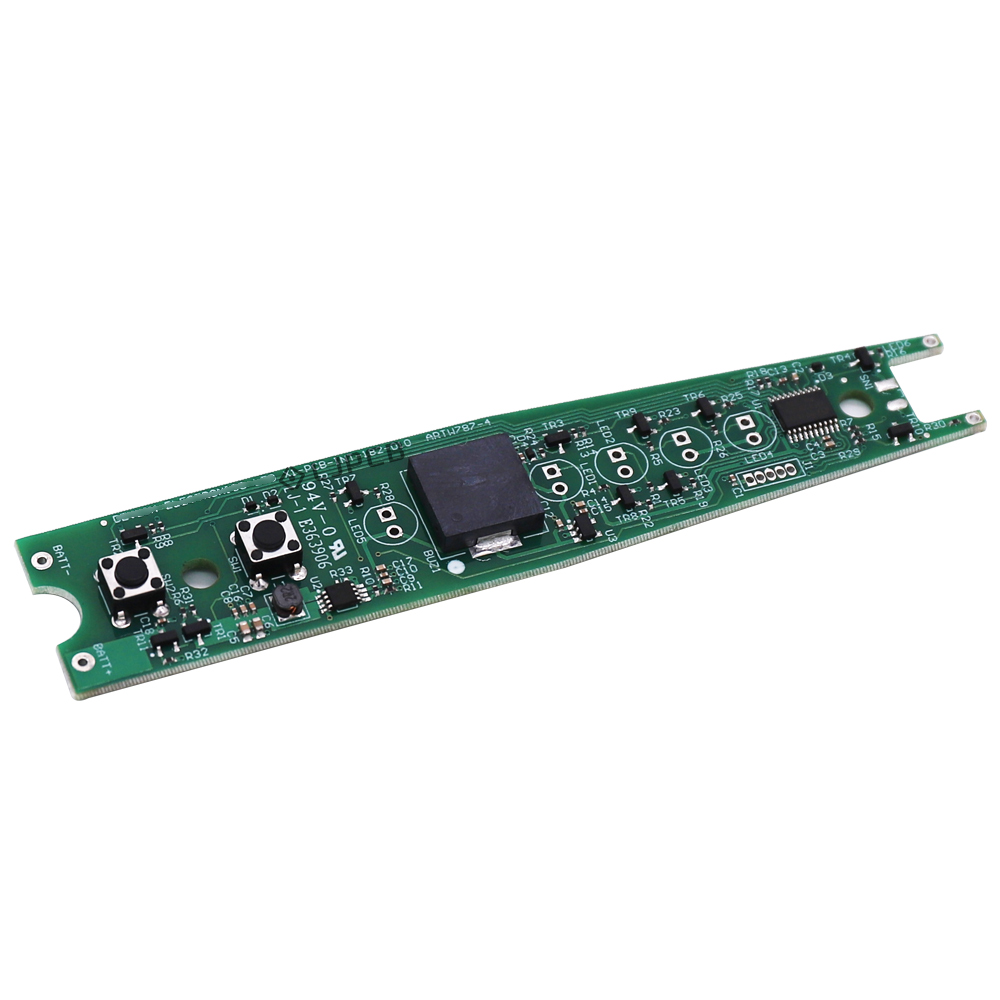

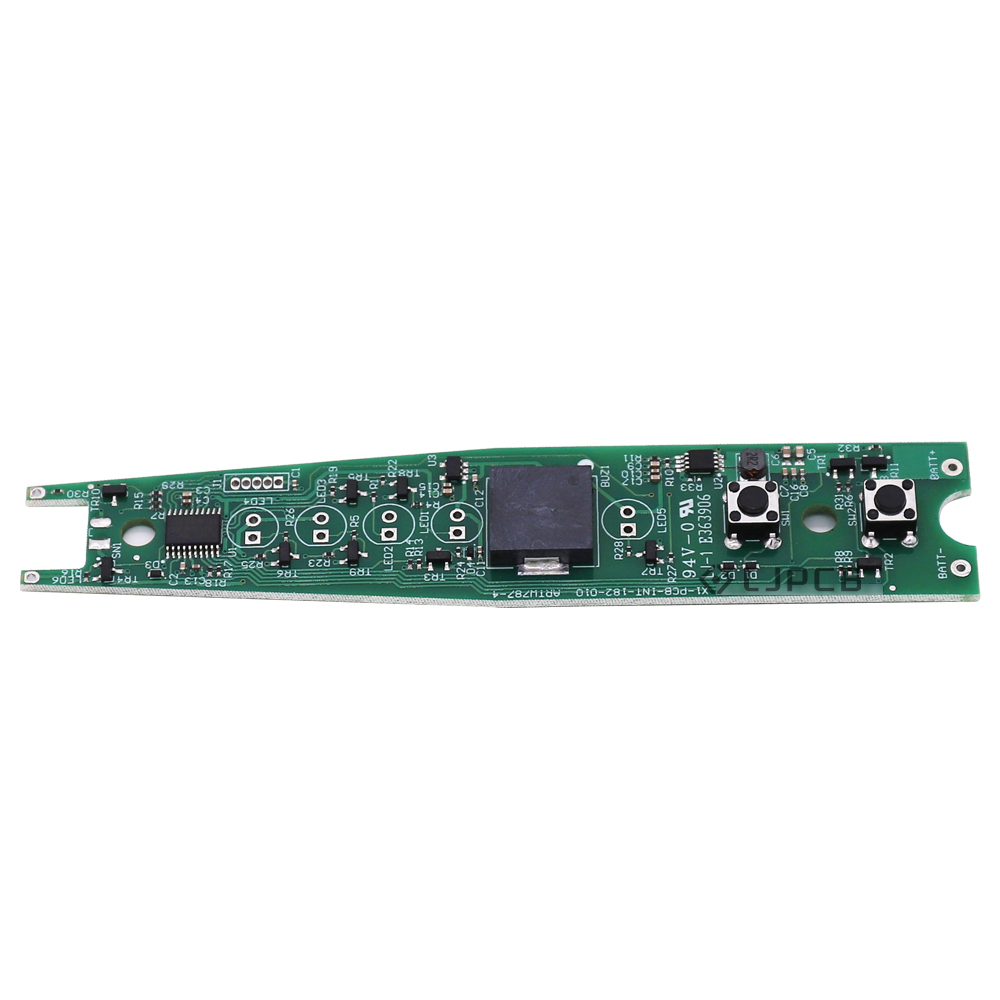

PCB assembly is designed for industrial equipment battery-powered systems. It integrates battery power input, DC-DC power conversion, MCU control, user buttons, and multi-channel LED indicators to provide battery status monitoring, device status display, and user interaction functions.LJPCB provides one-stop PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey electronics manufacturing solutions.
| Layer | 2L | Material Thickness | 1.6mm |
|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
|---|
| Solder Mask | Green | Legend Mark | White |
|---|
| Test | Flying Probe | | |
|---|
