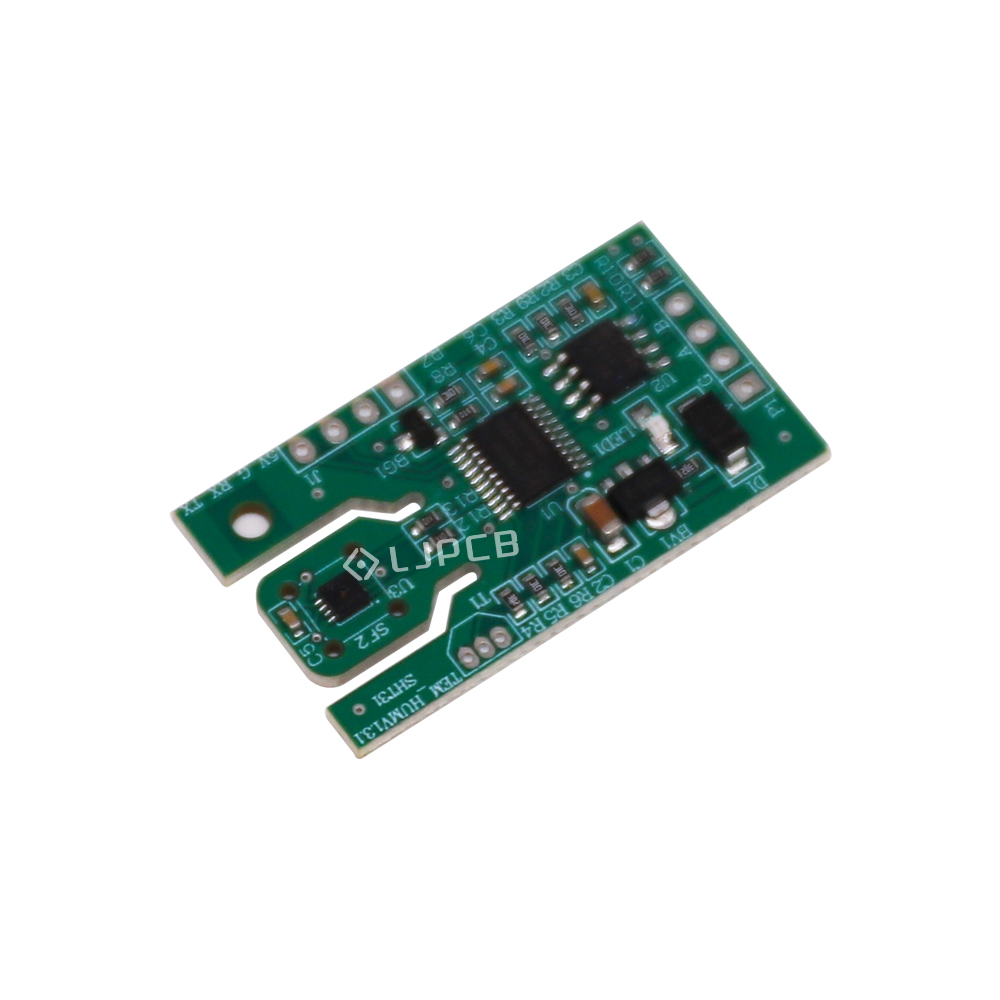

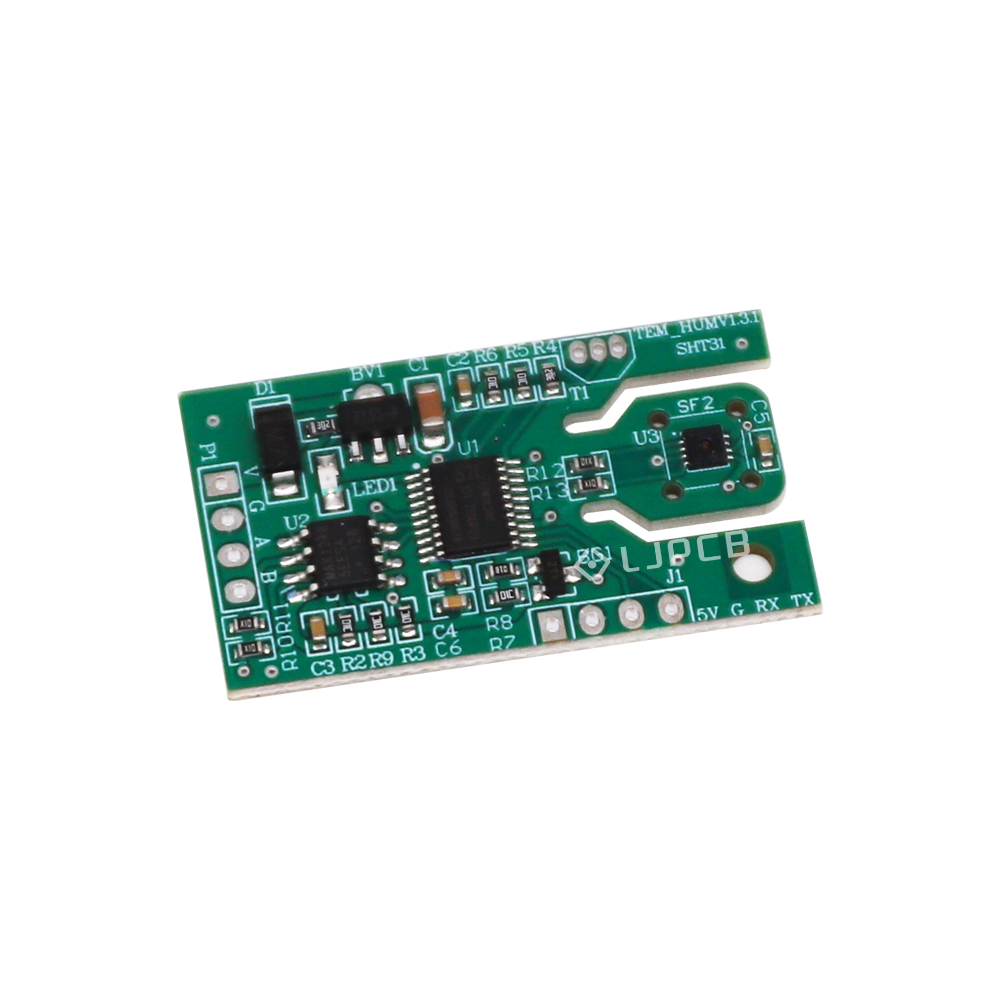

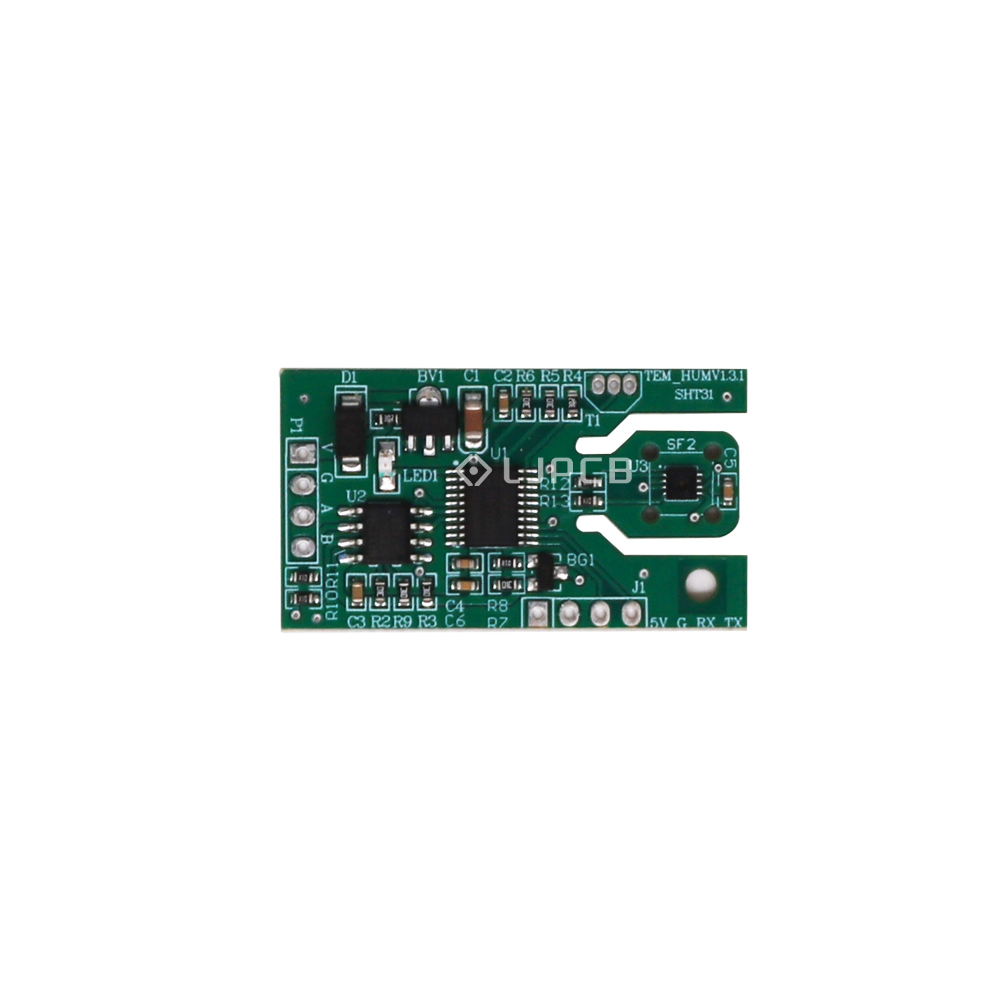

Description: This SHT31 temperature and humidity sensor module board is designed for accurate environmental temperature and humidity monitoring. It integrates an SHT31 digital sensor, microcontroller, RS485 communication interface, power management, and signal protection circuits for reliable data acquisition and transmission. The module supports stable communication with industrial control systems and is suitable for environmental monitoring, smart equipment, HVAC systems, and other temperature and humidity sensing applications. LJPCB provides one-stop PCB manufacturing and PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey PCBA solutions.
| Layer | 2L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Routed OutLIne/Punching | CNC+V-cut | Test Method | E-test |
| Unit Size | 38.1*21.6mm | Panel Size | 158.4*118/20 |
