Description: This

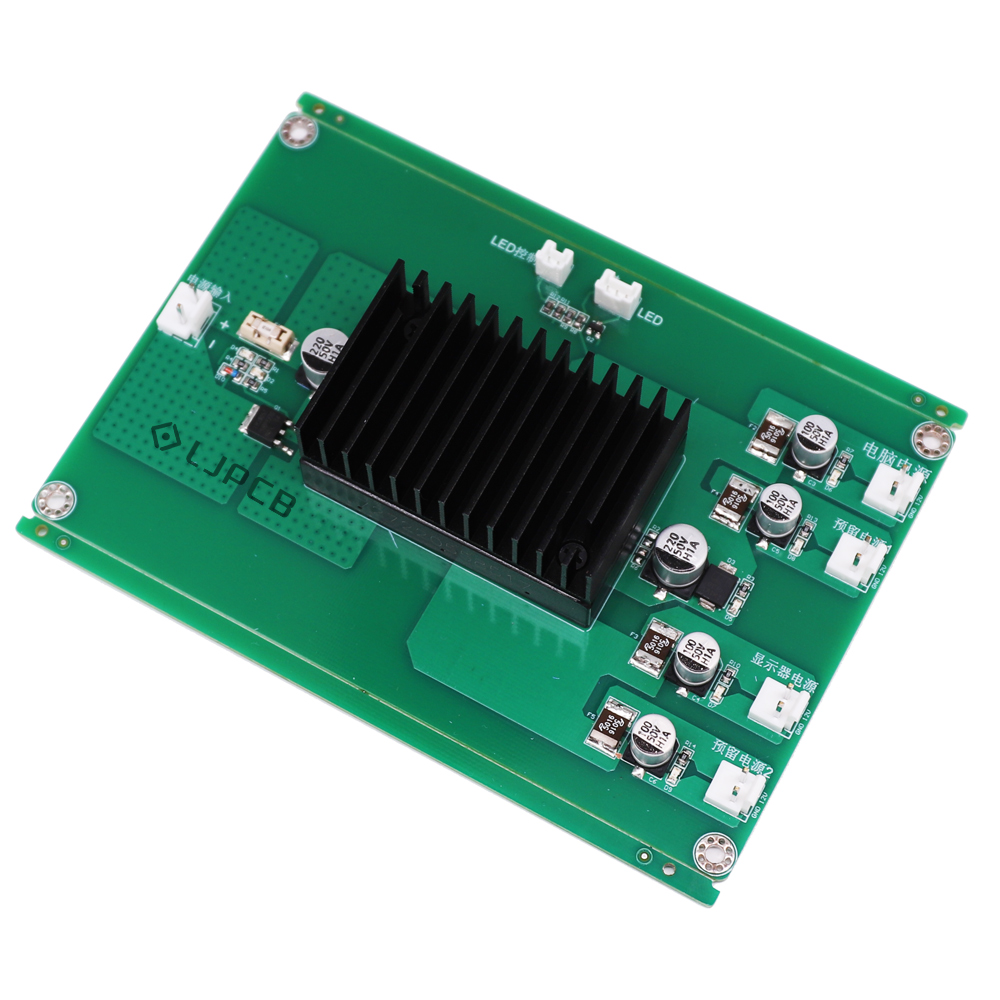

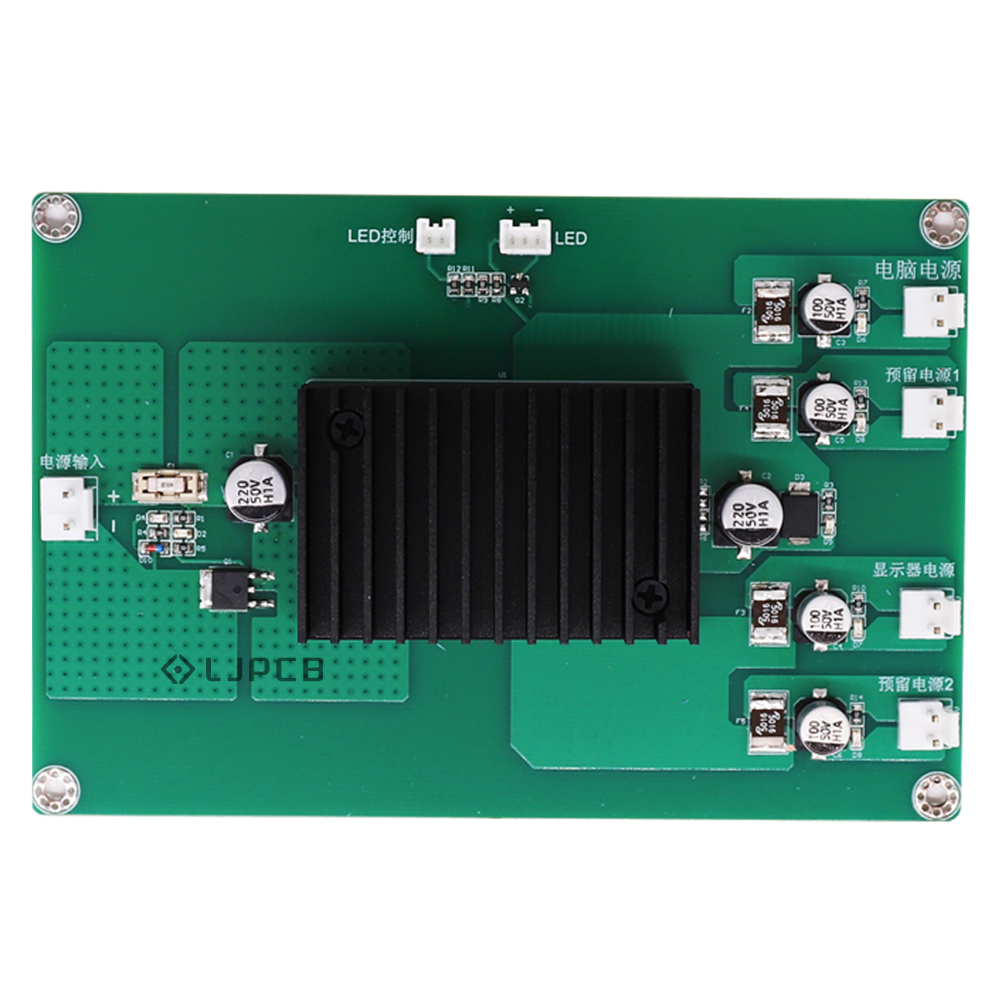

PCB assembly is designed for industrial all-in-one equipment and functions as a multi-channel power conversion and distribution board. It integrates power regulation, voltage conversion, and power distribution circuits to provide stable and reliable power supply for various modules within the system. LJPCB provides one-stop PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey electronics manufacturing solutions.
| Layer | Double-Sides | Material Thickness | 2.0mm |
|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 2oz |
|---|
| Solder Mask | Green(Double Sides) | Legend Mark | White(Single Side) |
|---|
| Test | Flying Probe | Routed OutLine/Punching | CNC+V-CUT |
|---|
| Vias | Plug in Vias | Unit Size | 150*100mm |
|---|
