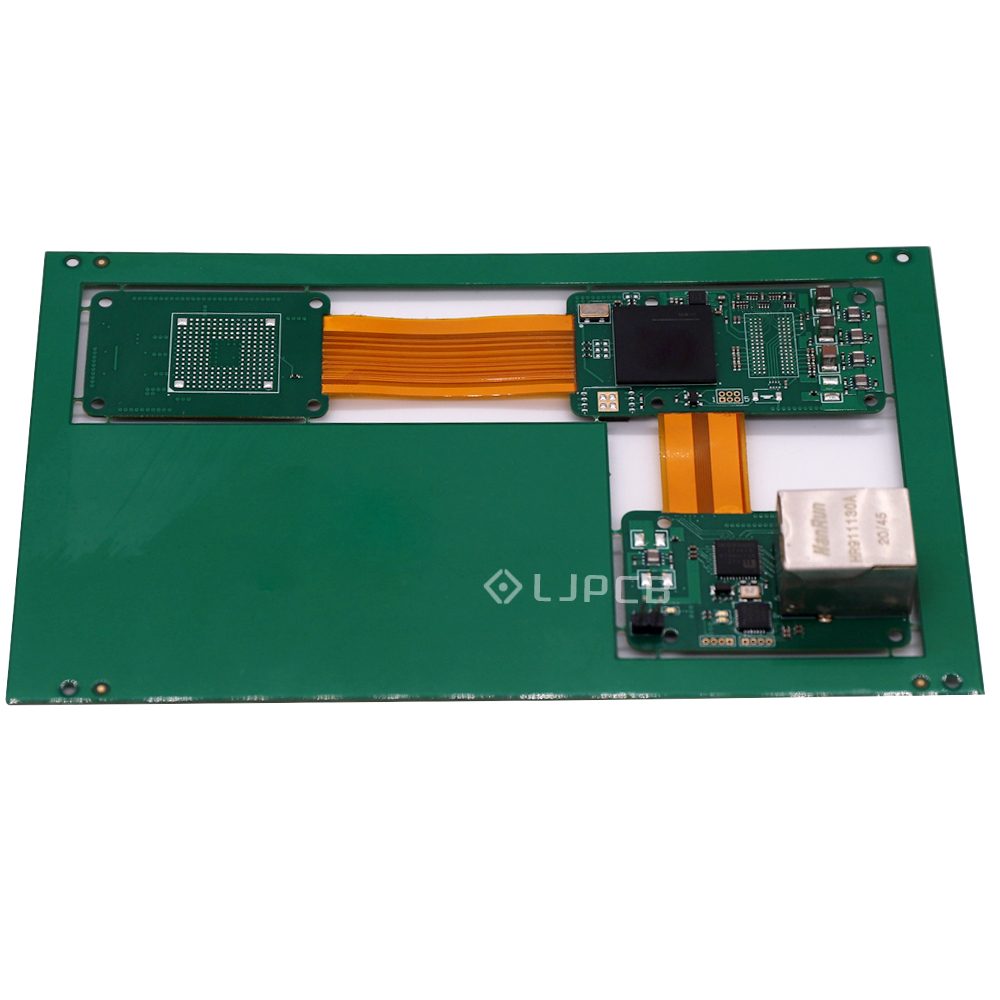

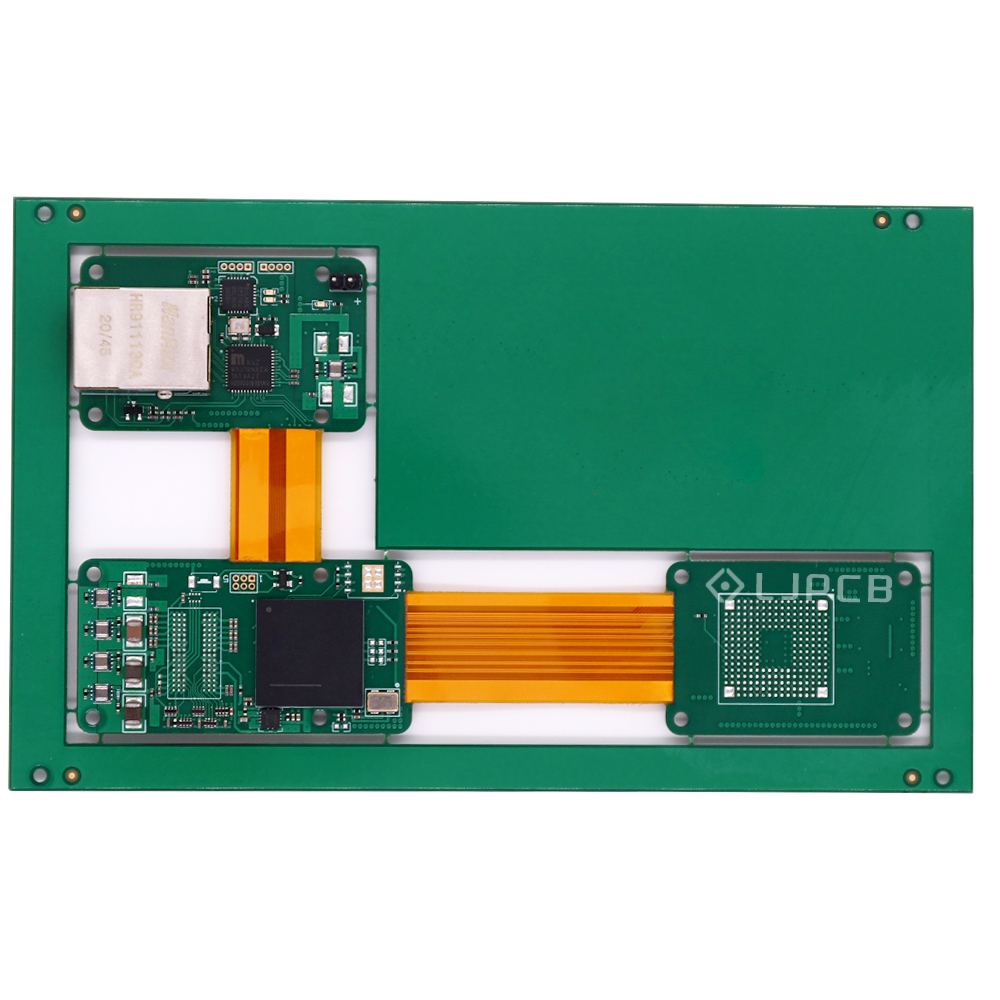

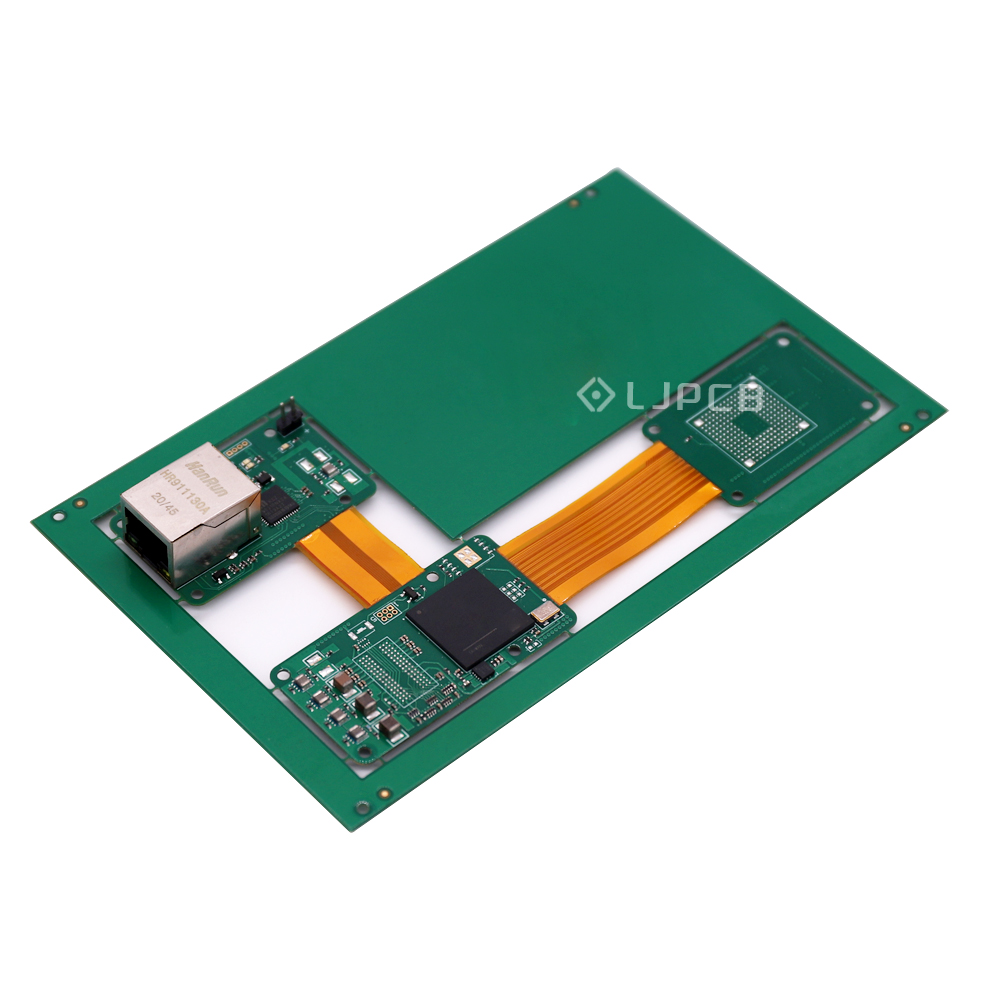

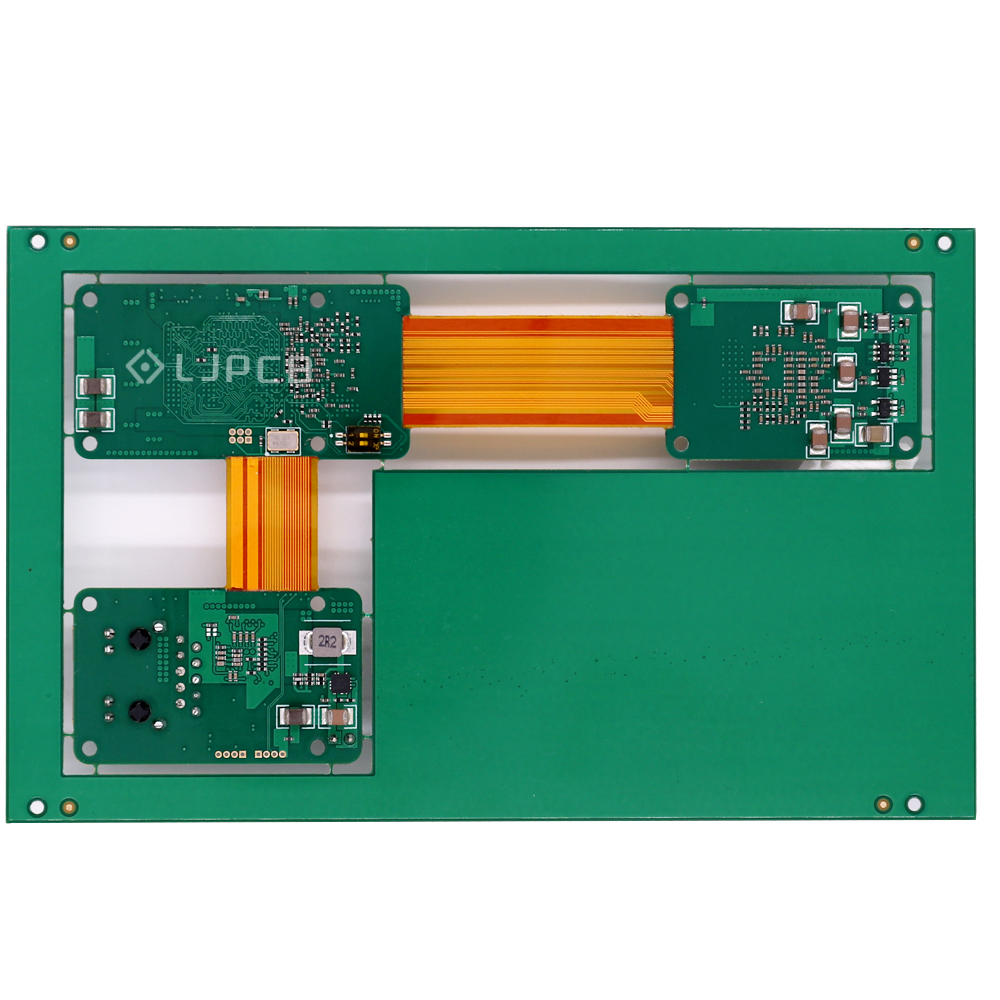

Description:This rigid-flex PCB is used as the module control board of a GigE area scan camera for Automated Optical Inspection (AOI) equipment. It is designed to manage image acquisition, data processing, and Gigabit Ethernet communication, enabling high-speed image transmission and stable operation during automated optical inspection. The rigid-flex design improves interconnection reliability, reduces assembly complexity, and optimizes space utilization within the camera module. The board integrates image processing circuits, communication interfaces, power management, and peripheral control functions to deliver reliable performance in industrial AOI systems. LJPCB provides one-stop turnkey rigid-flex PCB assembly services, including rigid-flex PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for industrial imaging equipment, machine vision systems, and AOI inspection equipment.

Layer	4L	Material Thickness	1.6mm
Surface Finishing	ENIG 1U"	Finished Copper Thickness	1oz
Solder Mask Type/Color	Green	Legend Mark	White
