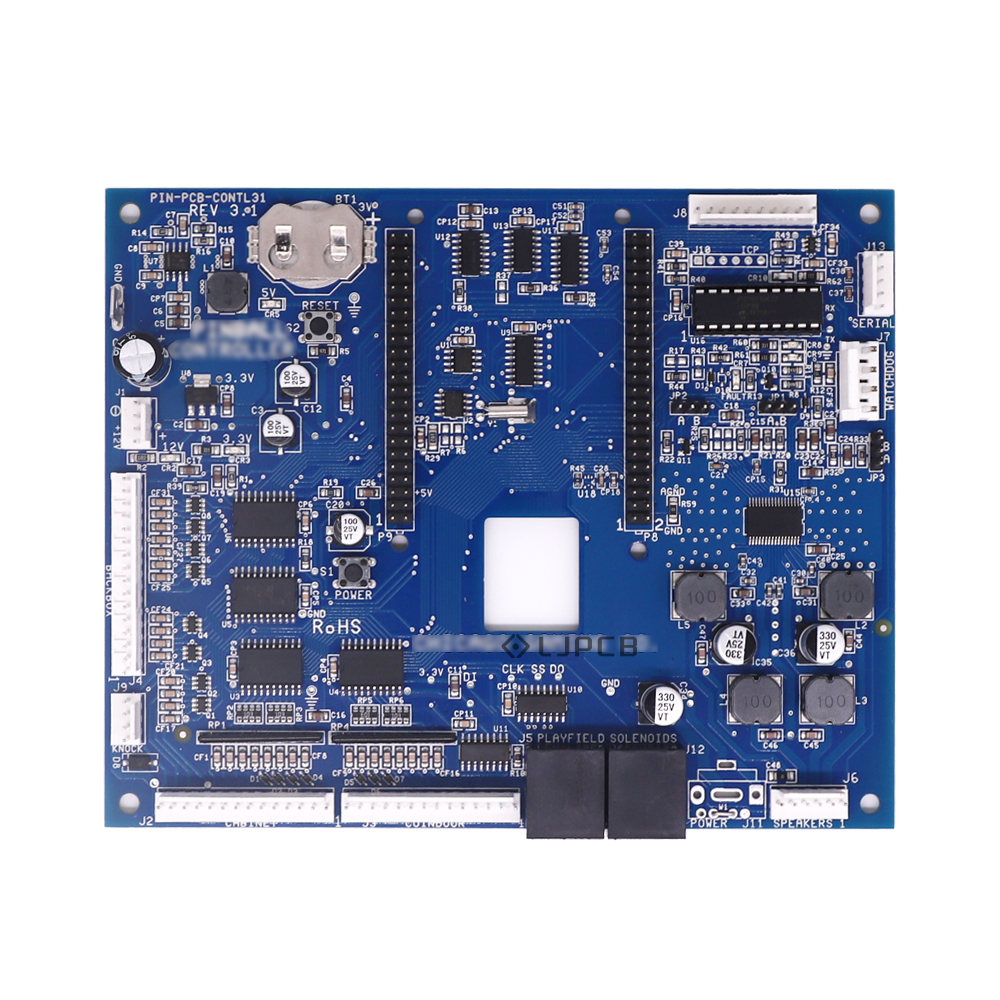

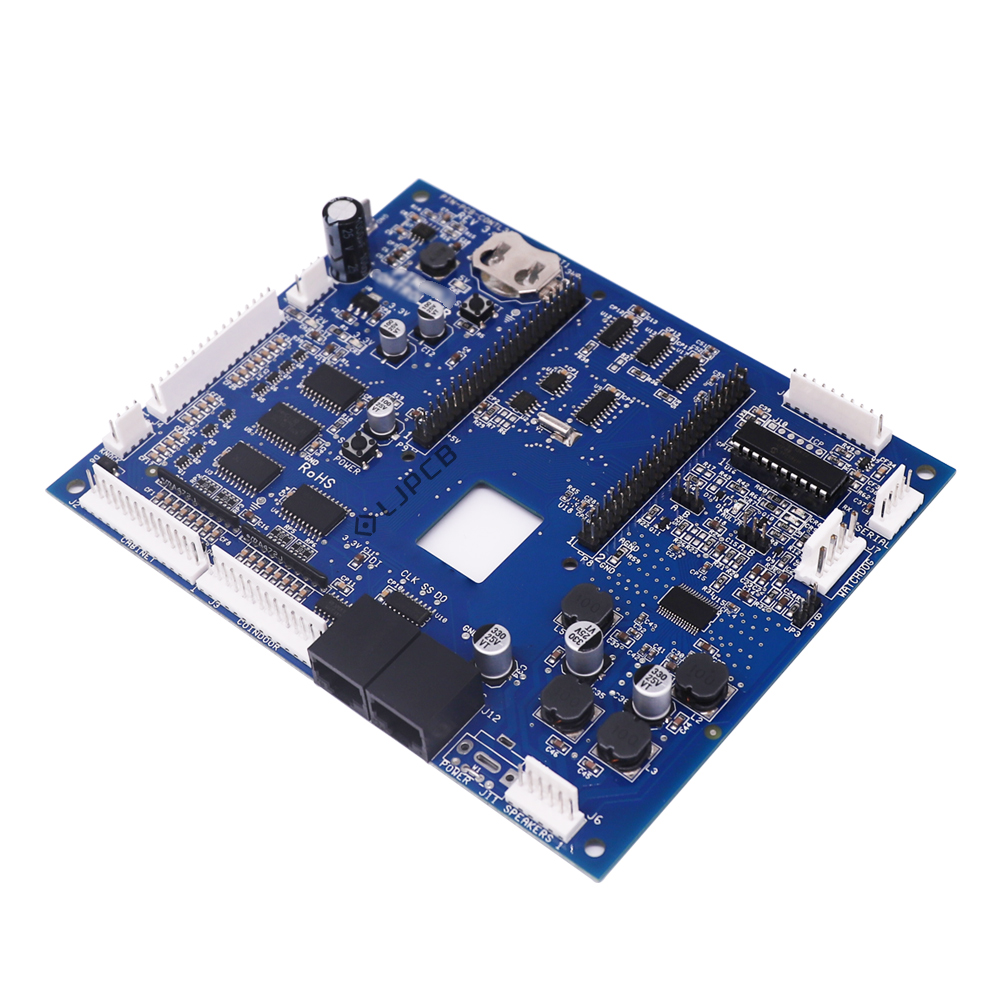

Description: This PCB assembly is designed for coin-operated pinball machines and arcade entertainment systems. As the main control board of the machine, it integrates power management, MCU control, communication interfaces, solenoid drivers, switch matrix scanning, LED lighting control, audio interfaces, and cabinet peripheral connections.The board manages core game functions, including playfield solenoid control, flipper and ball launcher operation, lighting effects, user input processing, coin door interfaces, and audio output, ensuring reliable operation and interactive gameplay for commercial arcade equipment.LJPCB provides one-stop PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey electronics manufacturing solutions.

Layer	2L	Material Thickness	1.6mm
Surface Finishing	LF HASL	Finished Copper Thickness	2oz
Solder Mask	Green	Legend Mark	White
Tolerance	0.05mm	Test	E-Test
