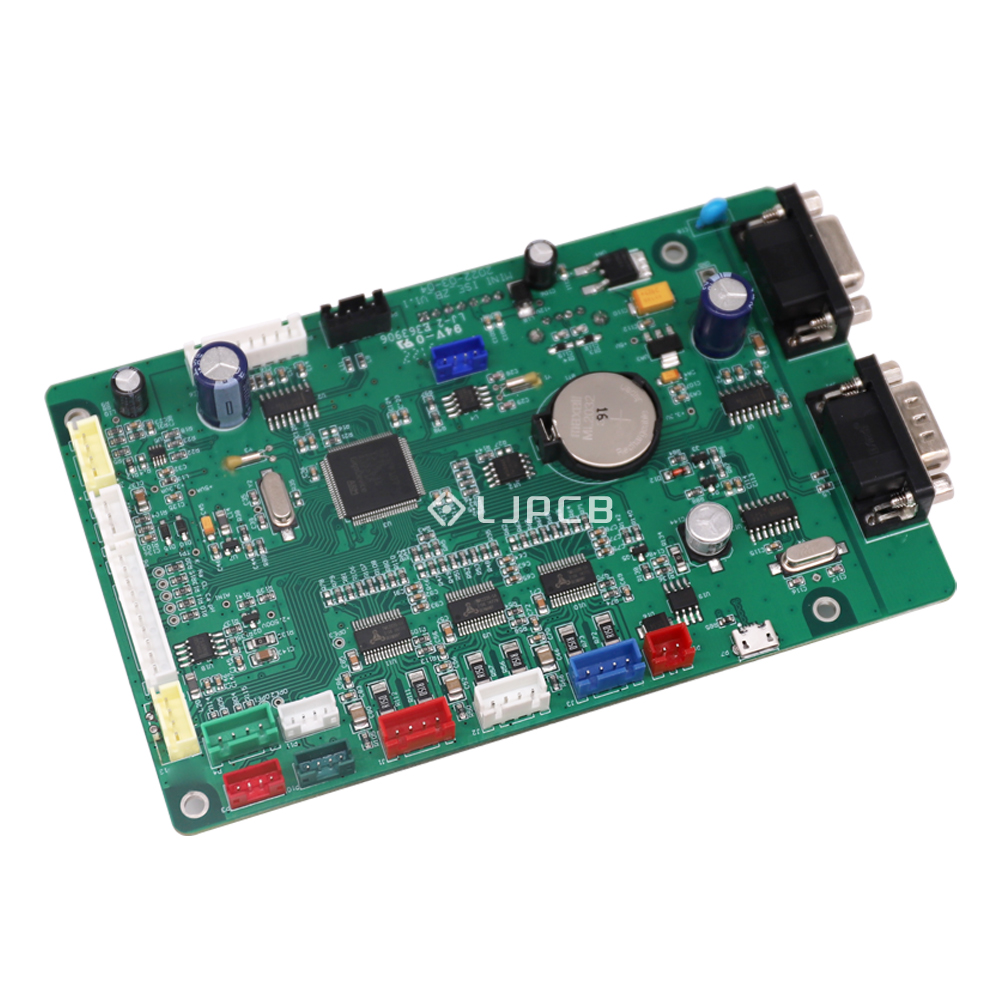

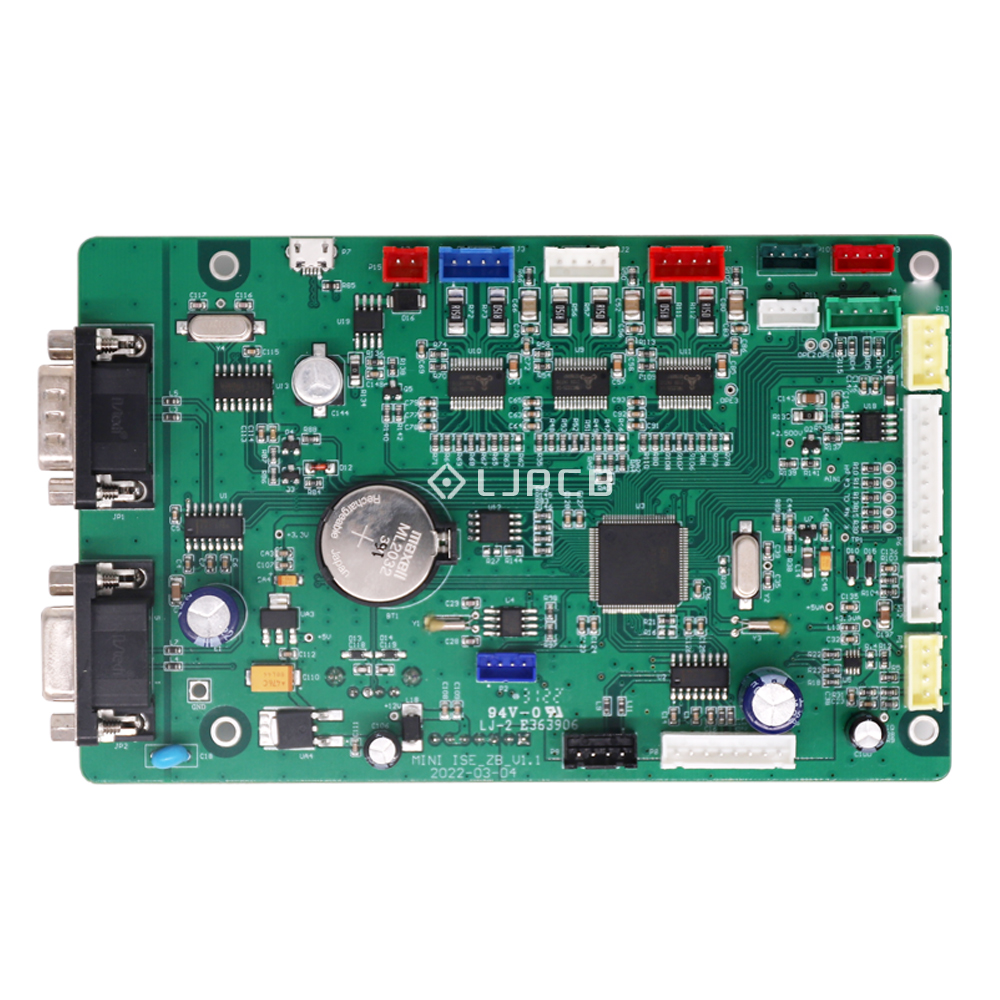

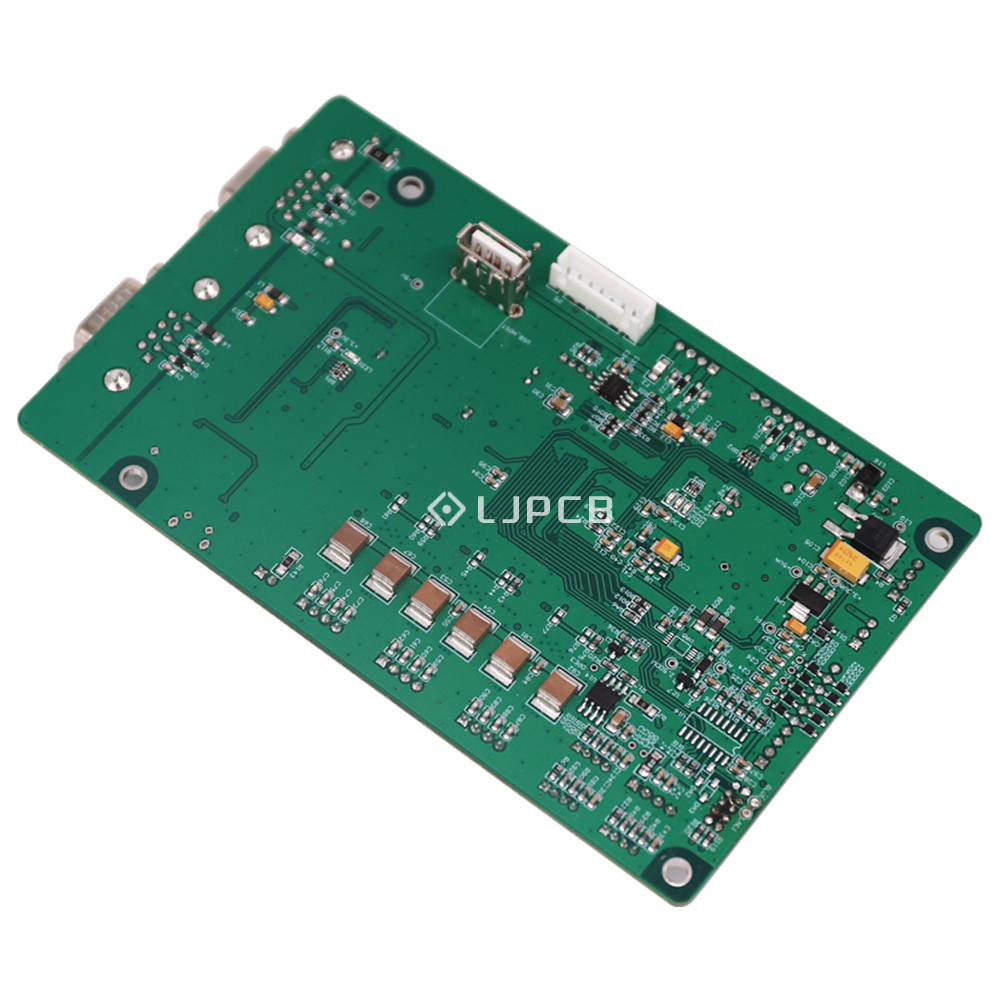

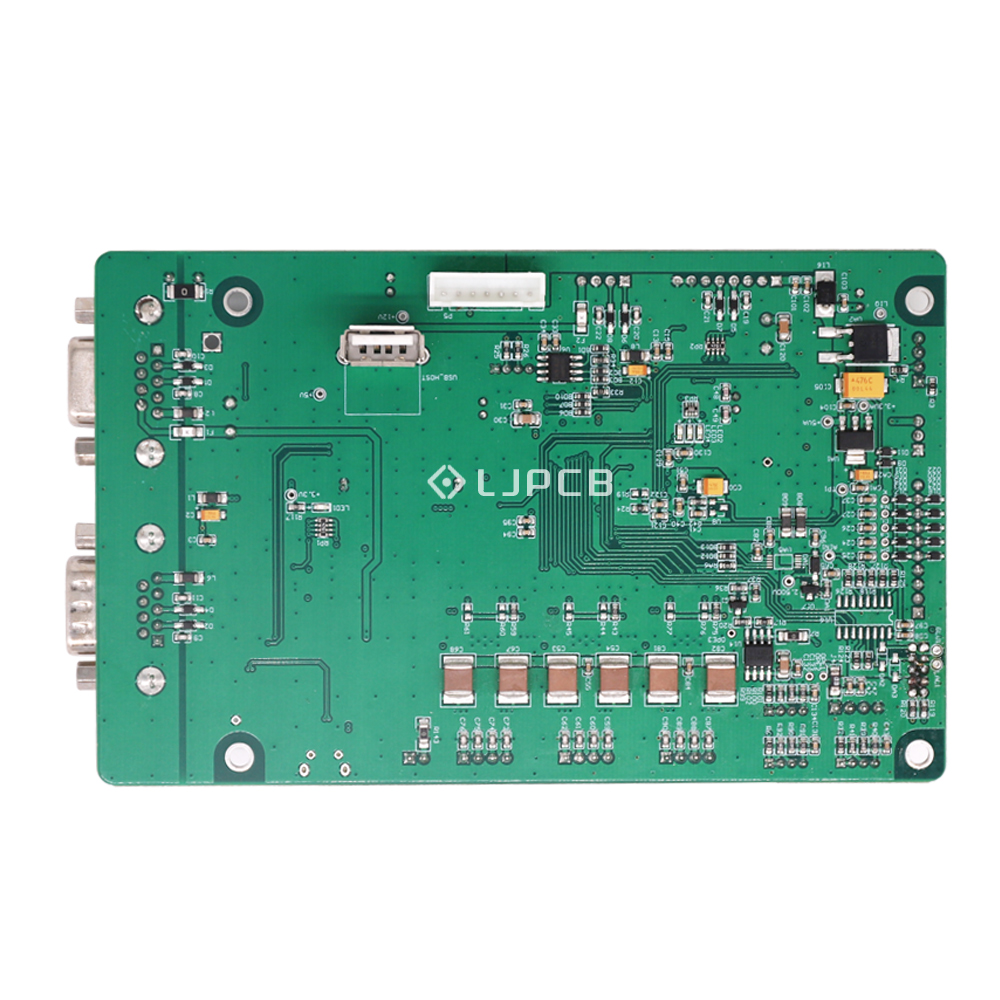

Description: This PCB is used in medical electrolyte analyzers as an ion electrode detection control board. It is designed to process signals from ion-selective electrodes (ISE), perform high-precision detection and measurement of electrolyte concentrations, and ensure accurate and reliable analysis results. The board integrates signal acquisition, amplification, processing, and communication functions to support stable operation of the electrolyte analyzer. LJPCB provides one-stop turnkey PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for medical devices and high-precision analytical instruments.

Layer	4L	Material Thickness	2.0mm
Surface Finishing	LF HASL	Finished Copper Thickness	1oz
Solder Mask	Green	Legend Mask	White
Test	Flying-Probe	Vias	Plug in Via
Routed OutLine/Punching	CNC+V-CUT
