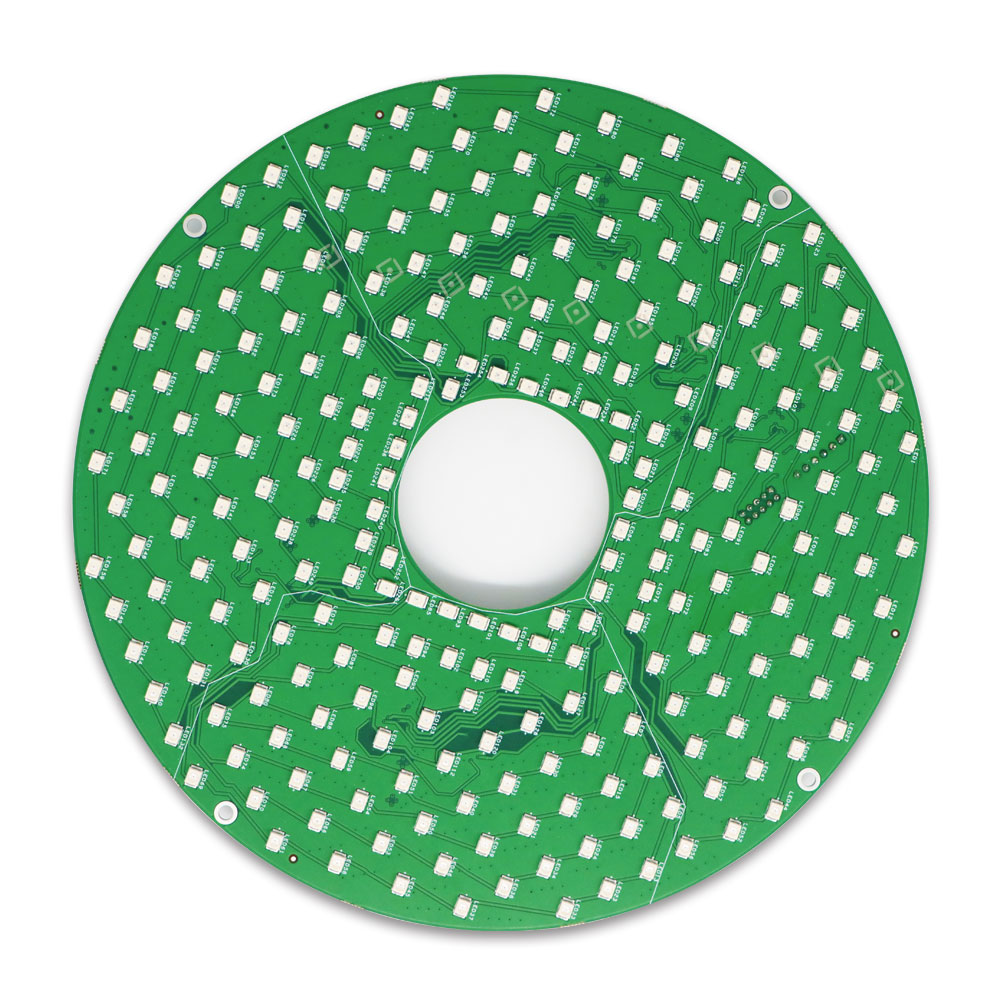

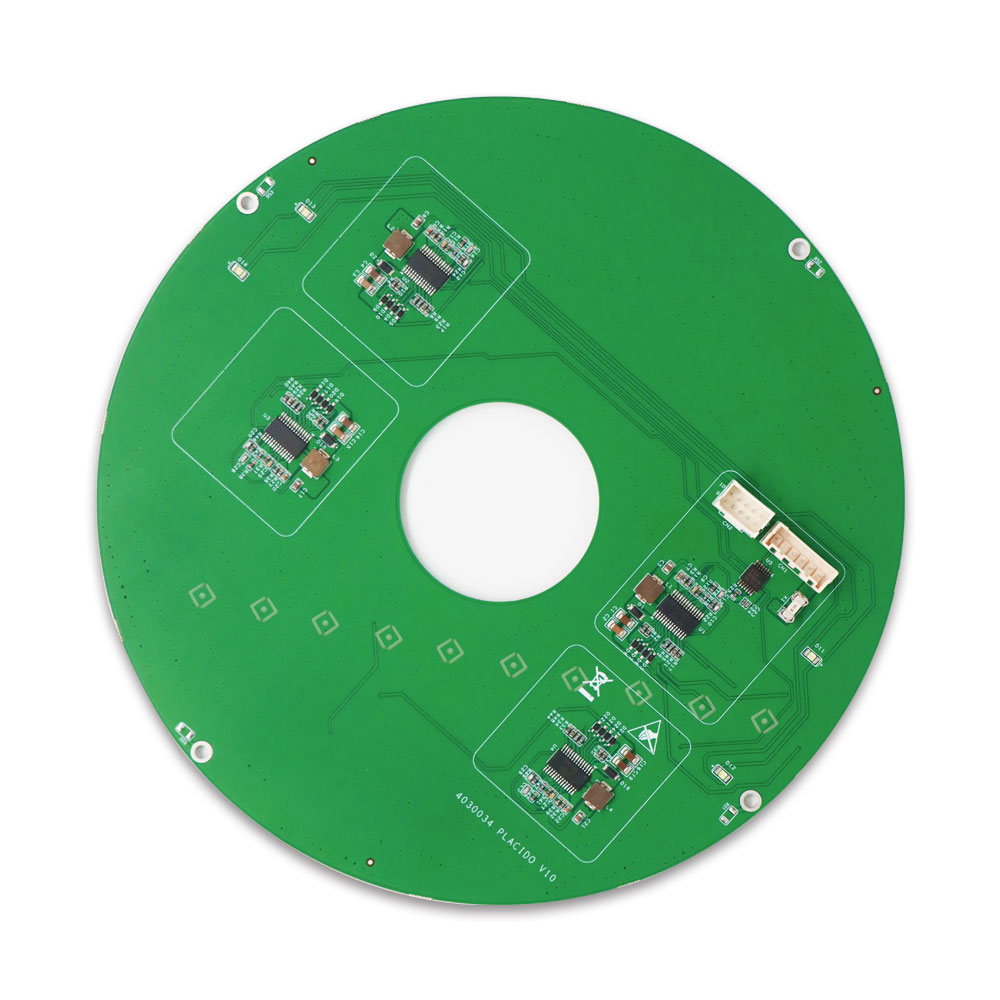

Description: This Corneal Wavefront Aberration Analyzer PCB Assembly is designed for ophthalmic diagnostic equipment used in corneal wavefront analysis and optical measurement applications. The circular PCBA features a central opening, a densely arranged array of surface-mounted components, multiple integrated circuits, and signal control interfaces. Its specialized layout supports the integration of optical measurement and electronic control systems, providing reliable electrical connections and stable operation for precision ophthalmic instruments. LJPCB provides professional PCB manufacturing and PCBA assembly services for medical and optical electronic equipment. Our capabilities include customized PCB fabrication, precision SMT assembly, component sourcing, and quality inspection. We deliver reliable and cost-effective PCB and PCBA solutions to meet the specific requirements of ophthalmic diagnostic devices and other advanced medical instruments.

Layer	4L	Material Thickness	1.6mm
Surface Finishing	Immersion Tin;	Finished Copper Thickness	Inner/Outer: 1oz
Solder Mask	Green	Legend Mark	white
Material	FR-4 TG150	Test	Flying Probe Test
