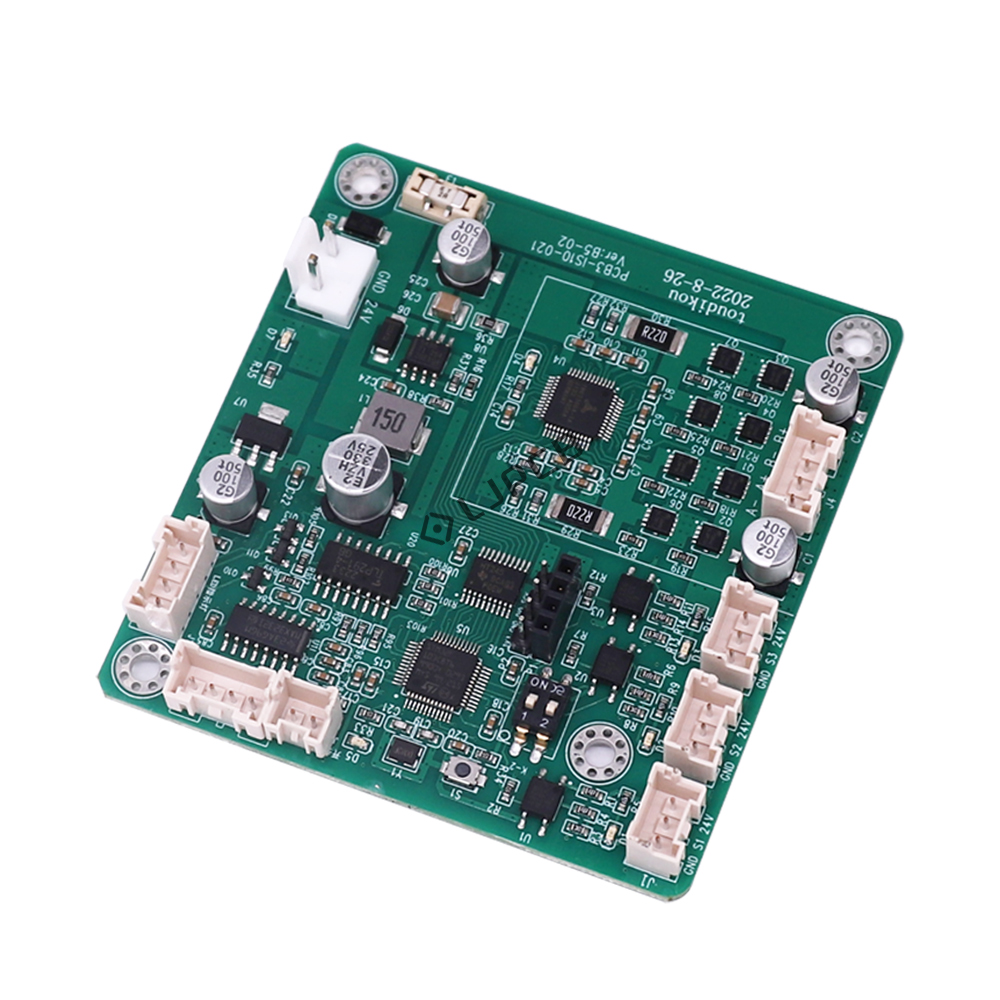

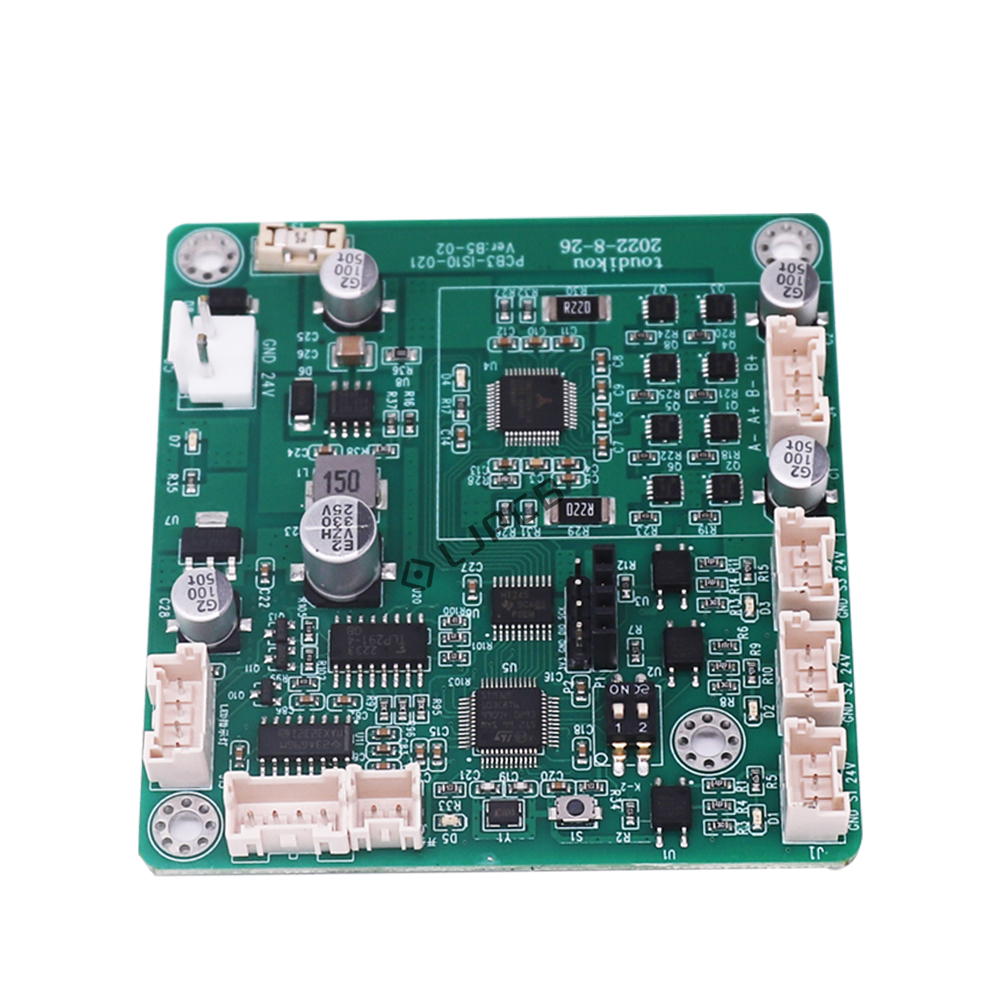

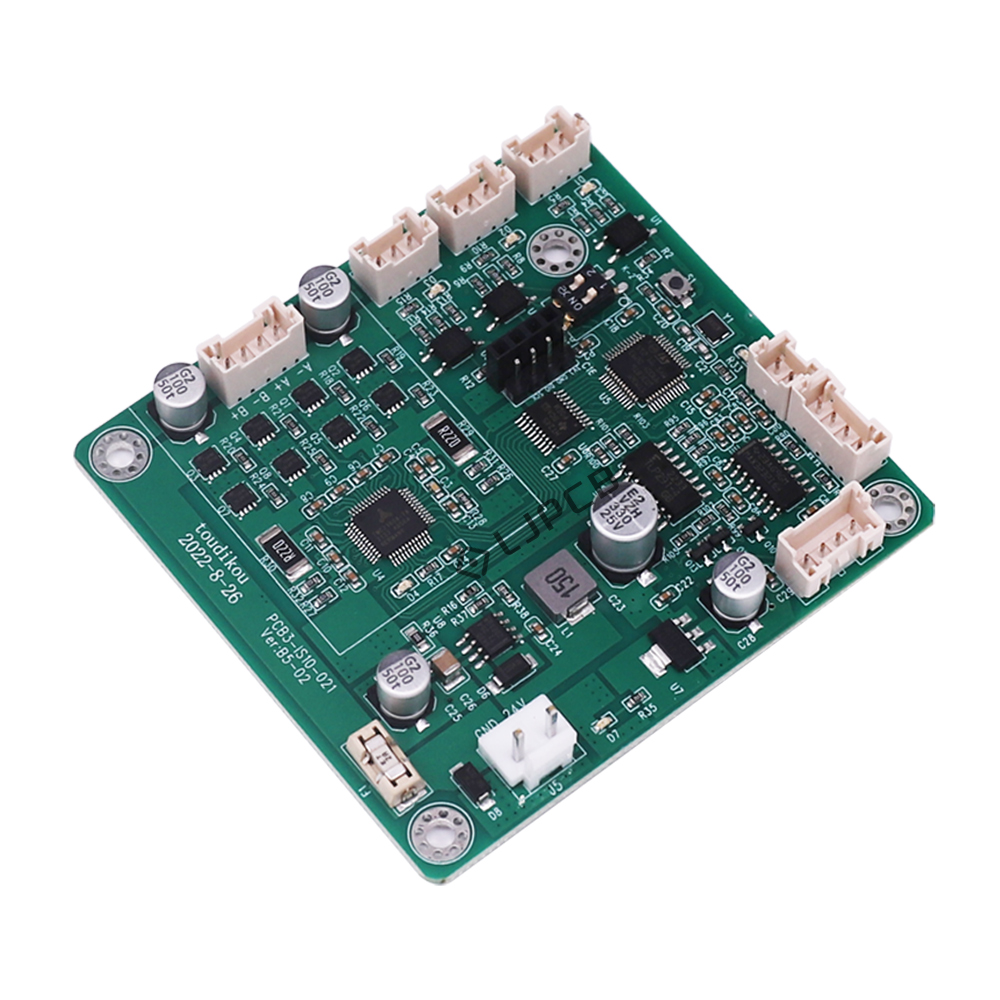

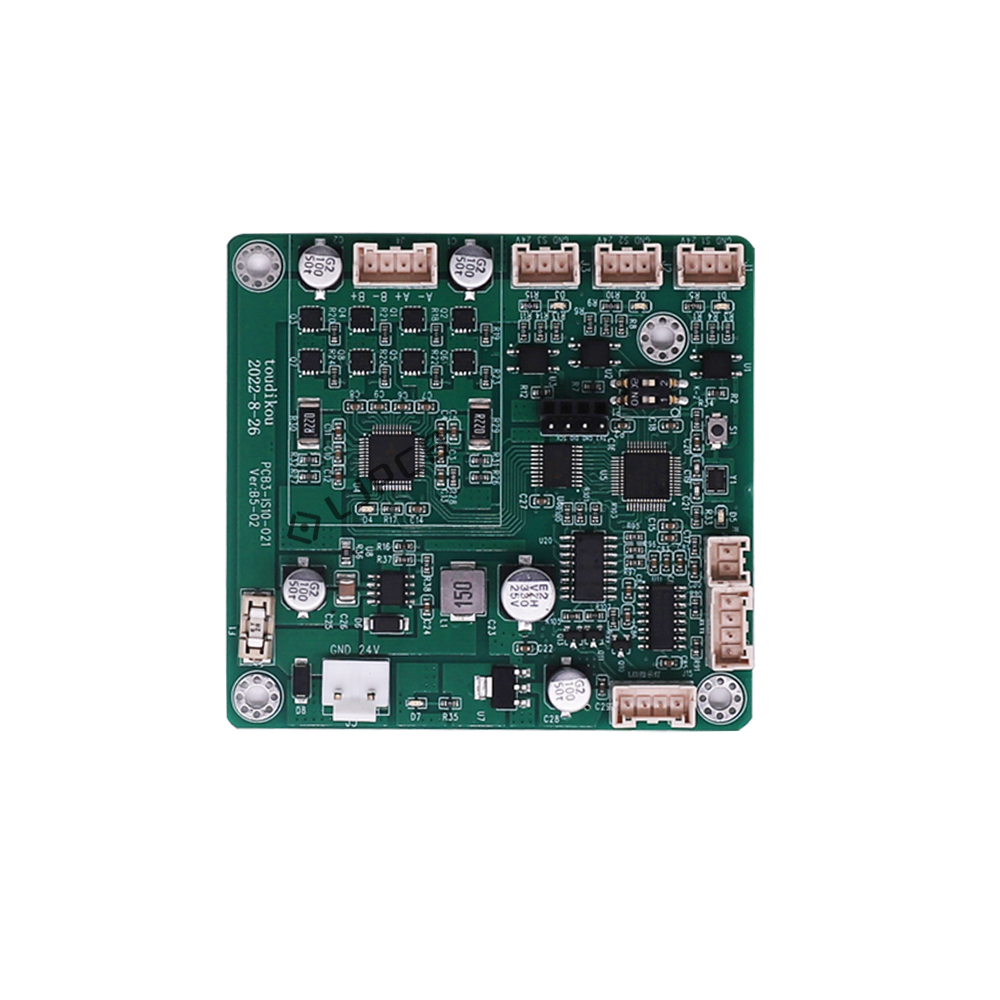

Description: This PCB is used in medical biochemical analyzers as a sample delivery module control board. It is designed to control the sample transfer mechanism, ensuring accurate and stable sample positioning and transportation during the automated analysis process. The board integrates control circuits, communication interfaces, and driver functions to support reliable operation of the biochemical analyzer. LJPCB provides one-stop turnkey PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for medical devices and high-precision analytical instruments.
| Layer | 2L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | LF HASL | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Routed OutLine/Punching | CNC+V-cut | Test | Test-Flying Probe |
