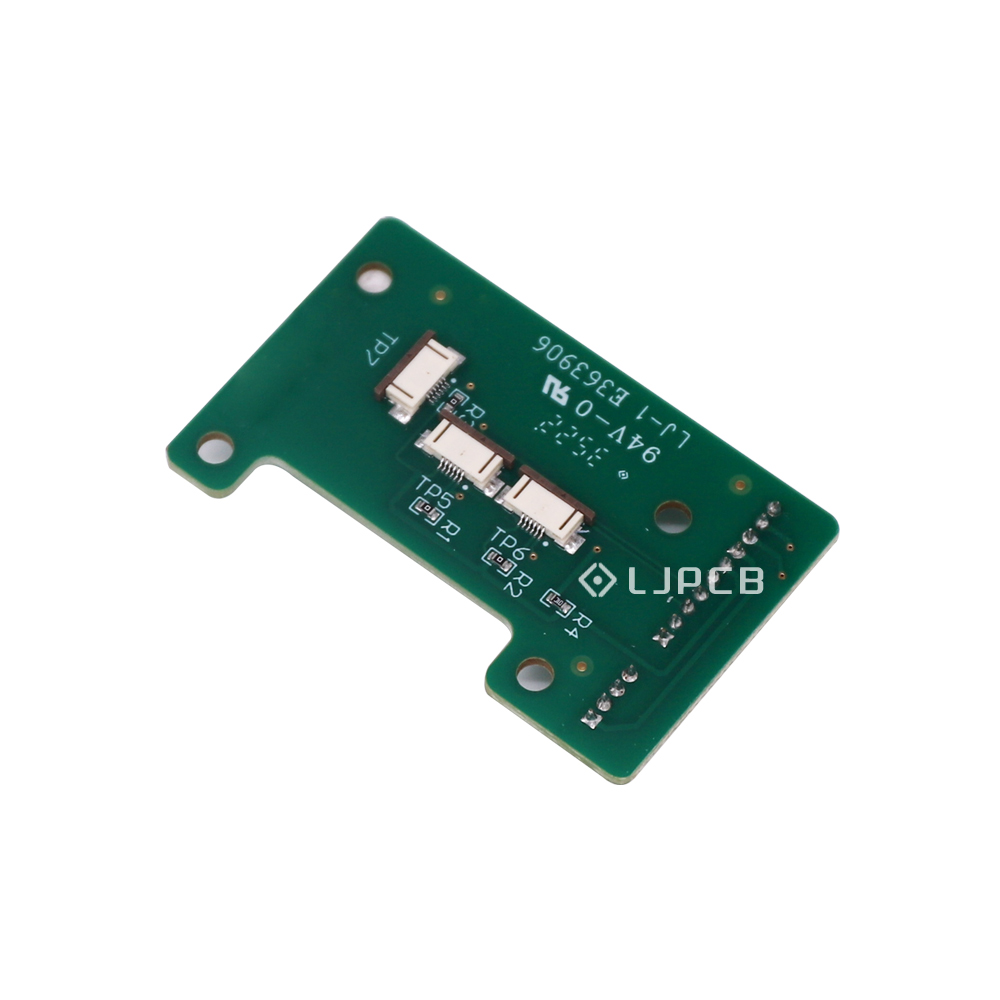

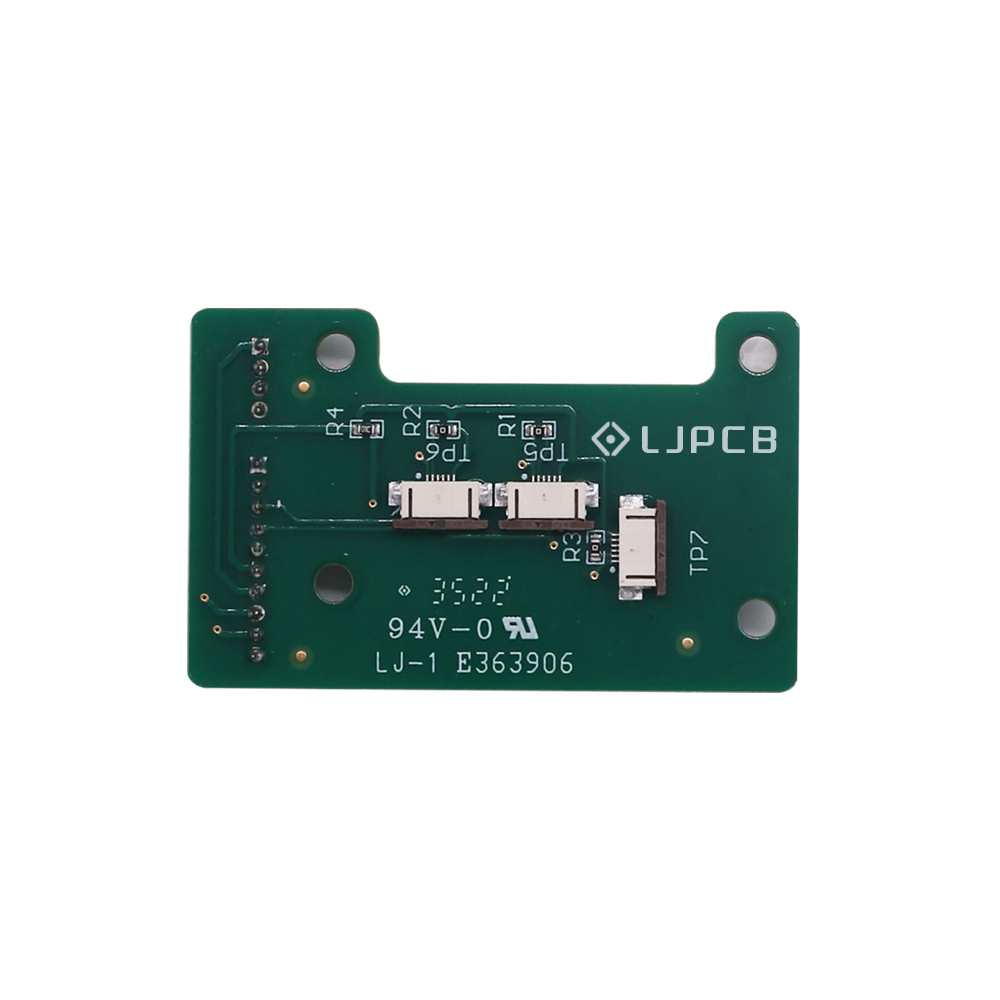

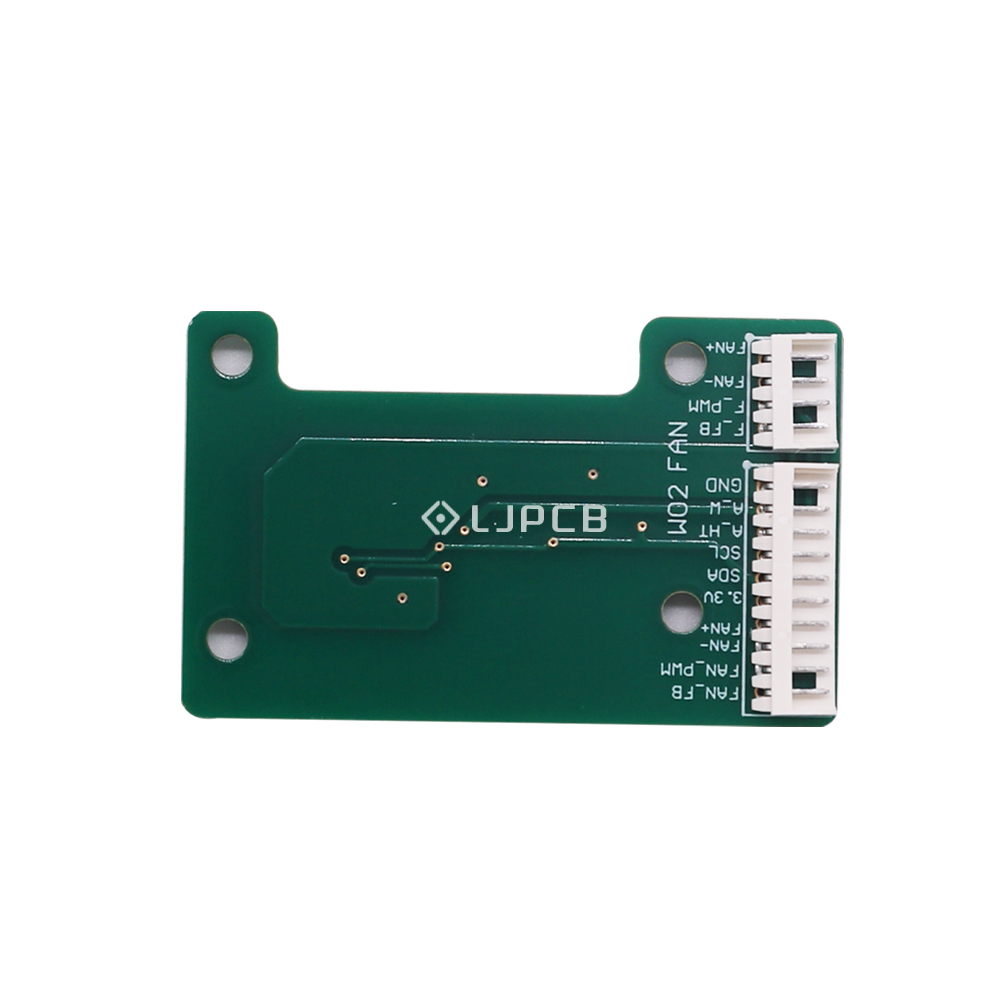

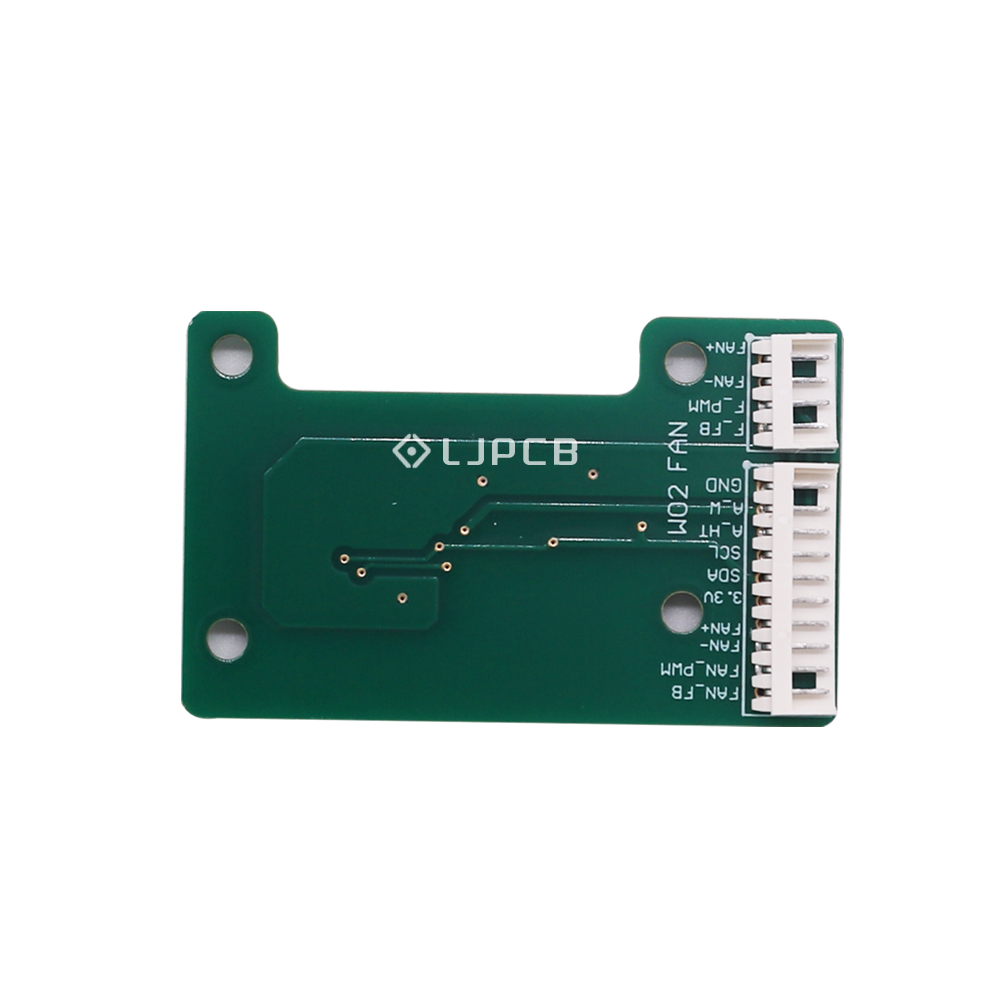

Description: This PCB is used in automatic nucleic acid analyzers as a sensor interface board. It is designed to connect sensors with the main control system, enabling reliable signal transmission, interface conversion, and stable communication between detection modules. The board integrates signal routing, interface circuitry, and protection functions to ensure accurate and dependable operation of the analyzer. LJPCB provides one-stop turnkey
PCB assembly services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and complete PCBA manufacturing solutions for medical devices and molecular diagnostic equipment.
| Layer | Double Sides | Material Thickness | 1.6mm |
|---|
| Surface Finishing | ENIG 1U" | Finished Copper Thickness | 1oz |
|---|
| Solder Mask | 2*Green | Legend Mark | White(Double Sides) |
|---|
| Test | Flying Probe | Copper Vias | 25UM |
|---|
| Routed OutLine/Punching | CNC+V-cut | Unit Size | 36*58mm |
|---|
