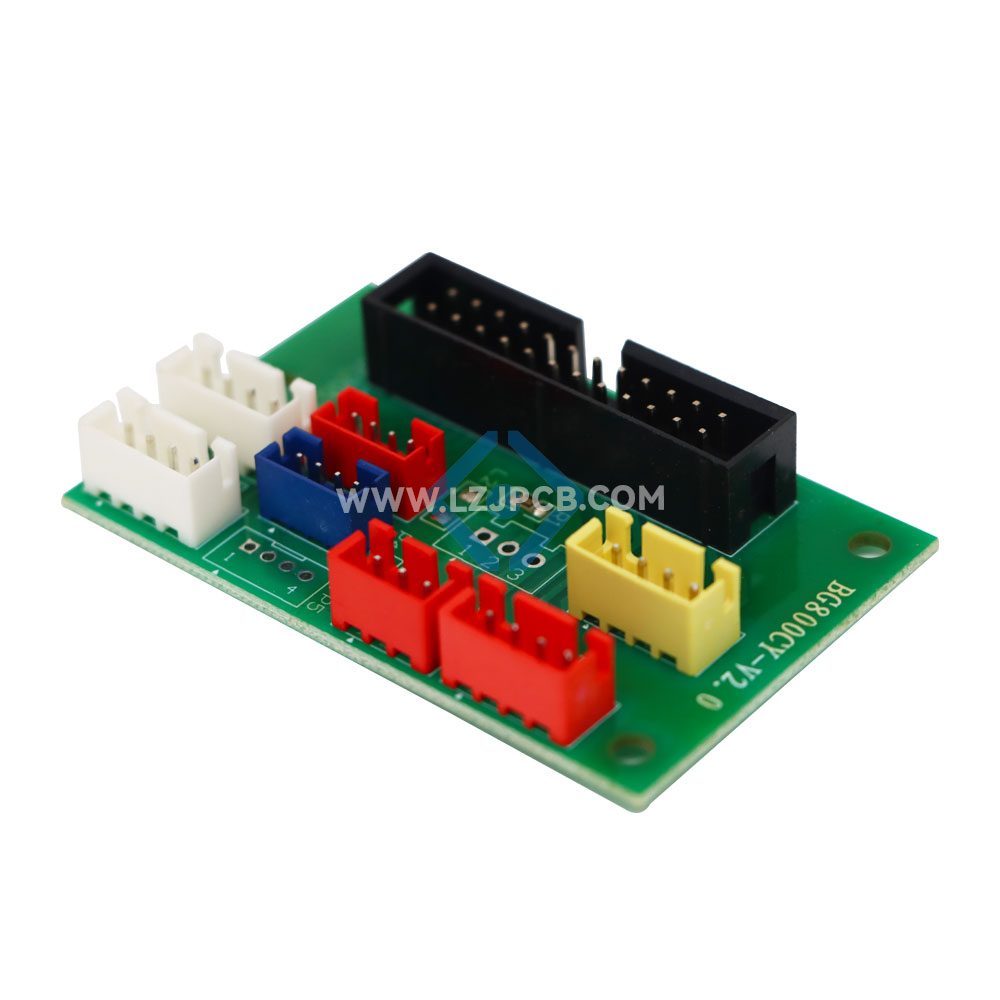

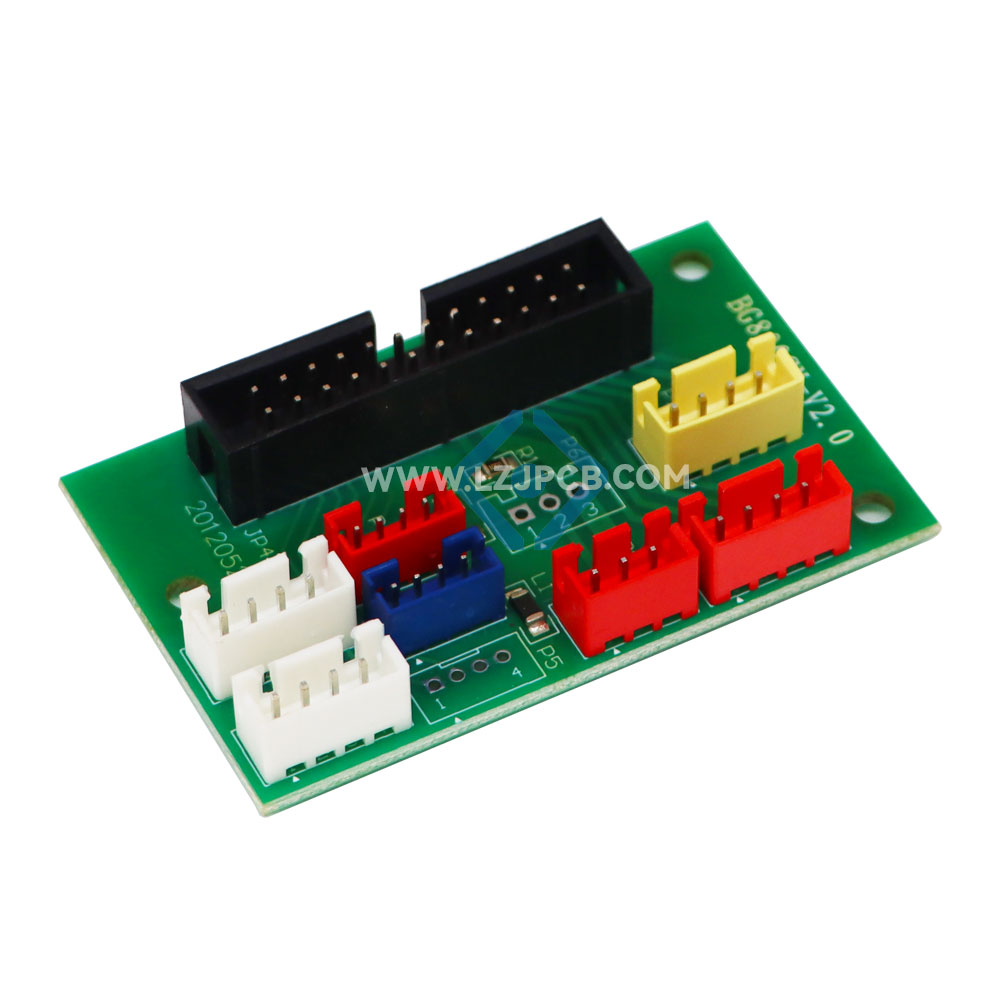

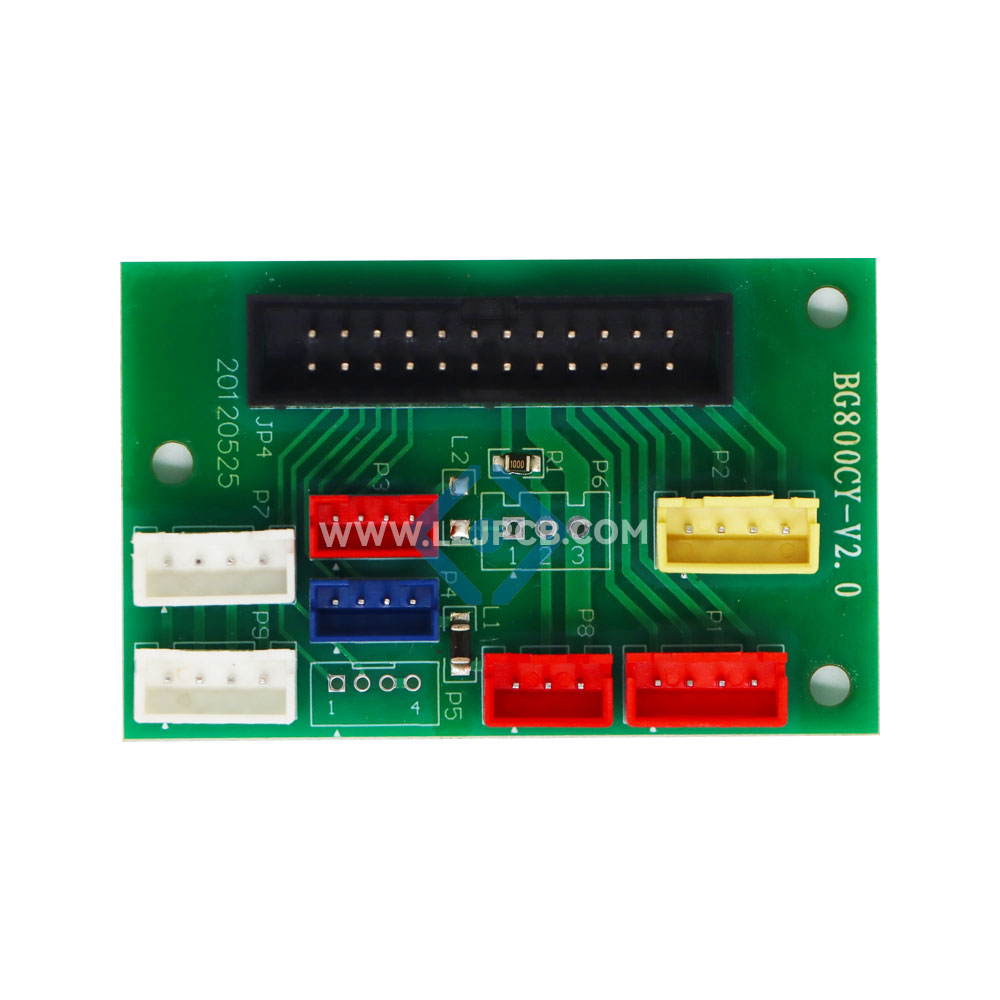

Description: This Blood Gas Analyzer Sampling Rack Interface Board is designed for medical blood gas analysis equipment, providing reliable electrical connections and signal interfacing for the sampling rack assembly. The board integrates multiple connectors for organized connection of sensors, actuators, power and control signals, helping ensure stable communication between the sampling rack and the analyzer's main control system. Its customized PCB layout and connector configuration can be adapted to the specific mechanical and electrical requirements of different blood gas analyzer platforms.
| Material | 2L | Material Thickness | 1.6mm |
|---|---|---|---|
| Surface Finishing | HASL Free | Finished Copper Thickness | 1oz |
| Solder Mask | Green | Legend Mark | White |
| Material | FR-4 | Test | Flying Probe Test |
| Routed OutLine/Punching | CNC+v-cut |
