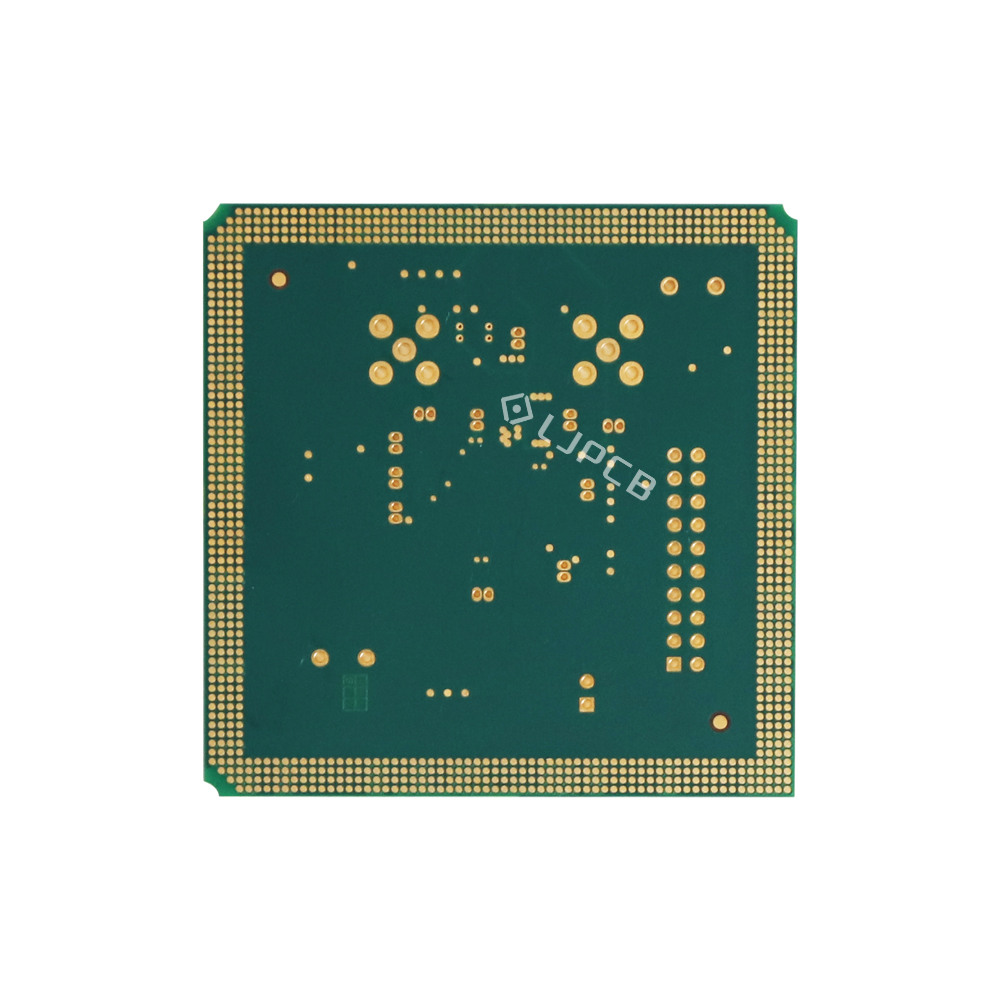

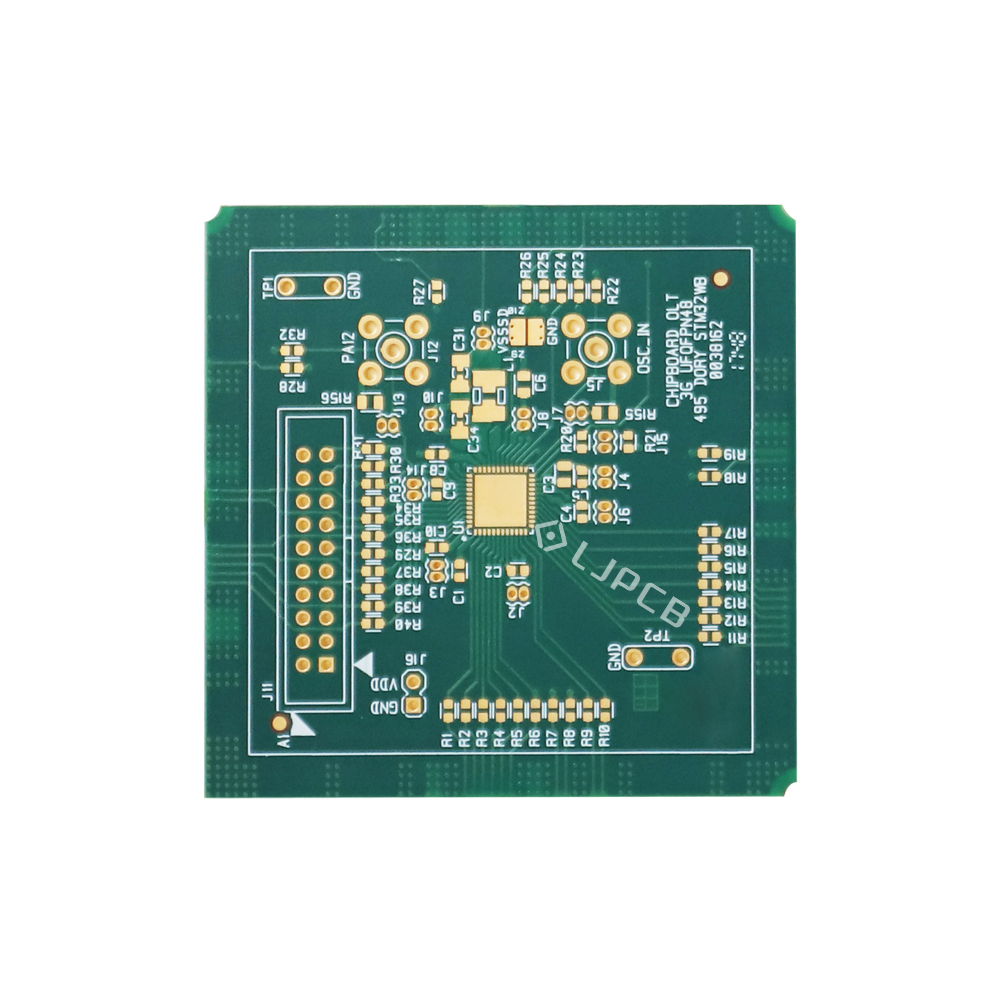

Description: This PCB is designed for MCU evaluation, testing and debugging. It provides the necessary interfaces and test circuits for MCU programming, functional verification, signal measurement and hardware validation. The board can be customized for different MCU devices and test requirements. LJPCB provides professional bare
PCB manufacturing services, including multilayer PCB fabrication, surface finishing, impedance control and customized PCB solutions.
| Layer | 6L | Material Thickness | 1.8mm |
|---|
| Surface Finishing | ENIG 2u" | Finished Copper Thickness | 1oz |
|---|
| Solder Mask | Green | Legend Mark | White |
|---|
| Vias | Resin Plug Hole | Test | Flying Probe |
|---|
