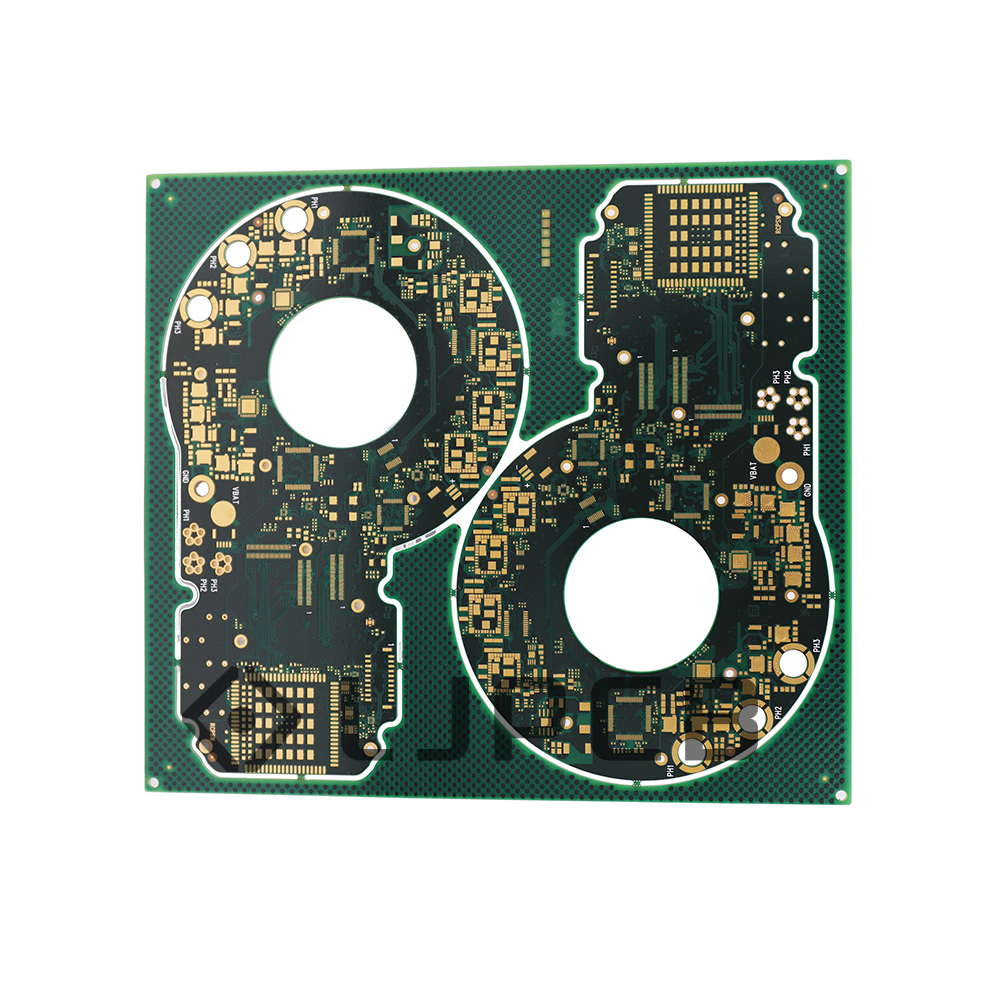

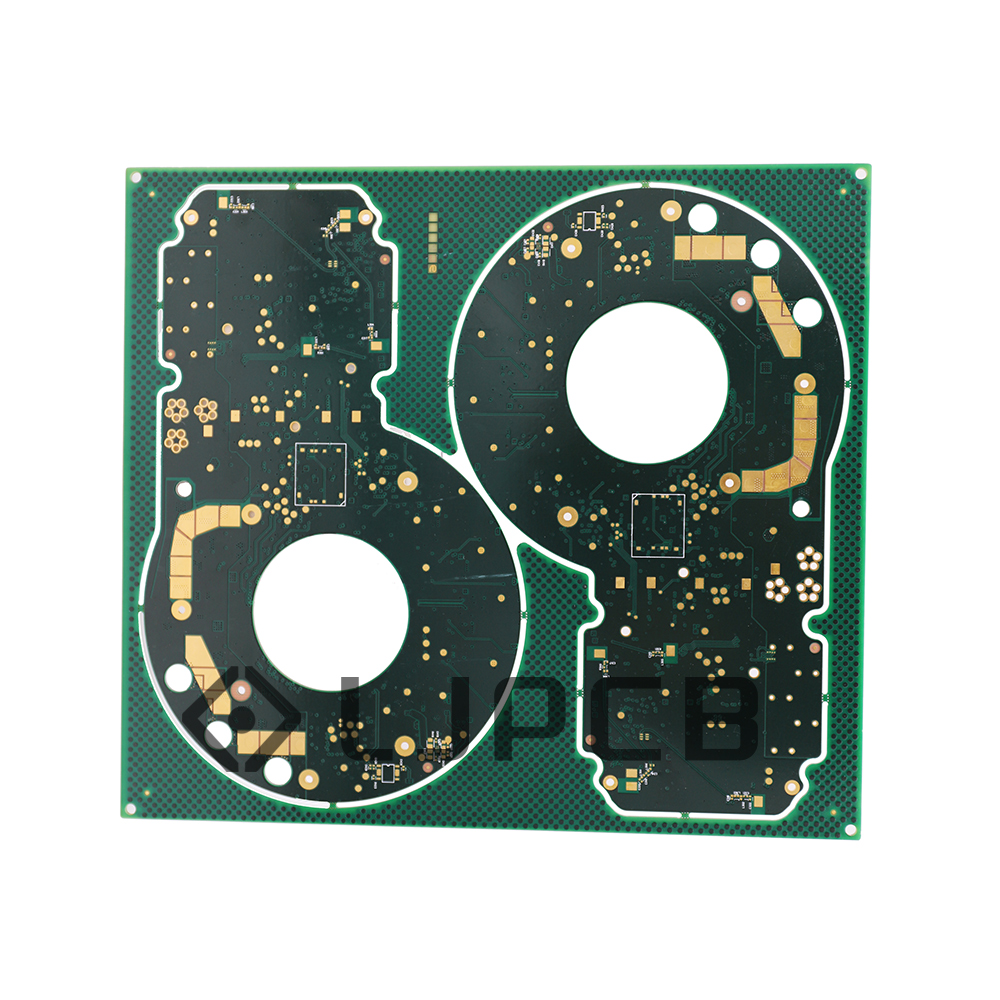

Description: This PCB is used as the motor controller board for electric bicycles. It is designed to control motor speed, torque, and power output while ensuring efficient power management and reliable communication with the vehicle's control system. The board integrates motor control circuits, power management, protection functions, and communication interfaces to deliver stable and efficient performance. LJPCB provides custom PCB manufacturing services, including rapid prototyping and volume production for electric vehicle and intelligent mobility applications.

Layer	6L	Material	FR-4 TG170
Material Thickness	1.6mm	Finished Copper Thickness	1/1/1/1/1/1oz
Solder Mask Type/Color	Green	Legend Mark	White
Special Item	Copper Block in Pad	Surface Finishing	ENIG 2U"
Min Via	0.25mm	Min Line/Track Space	8/8mil
