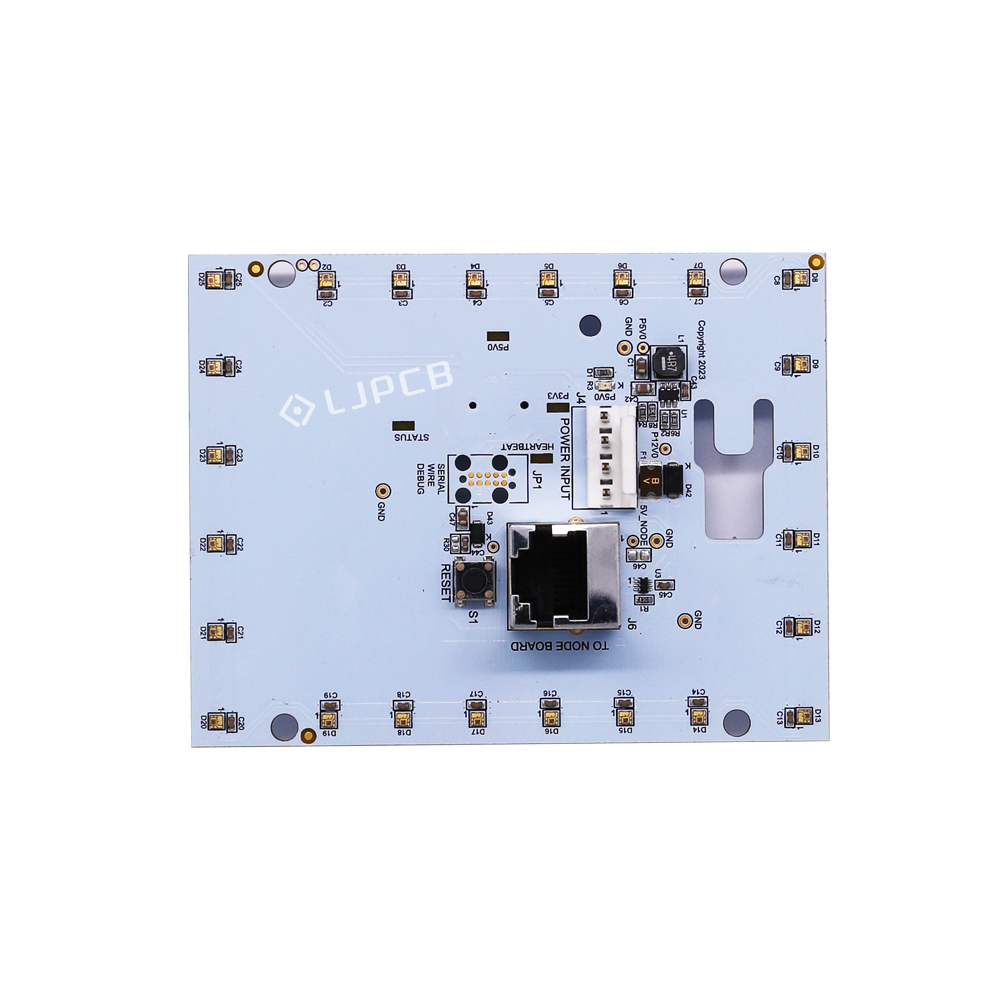

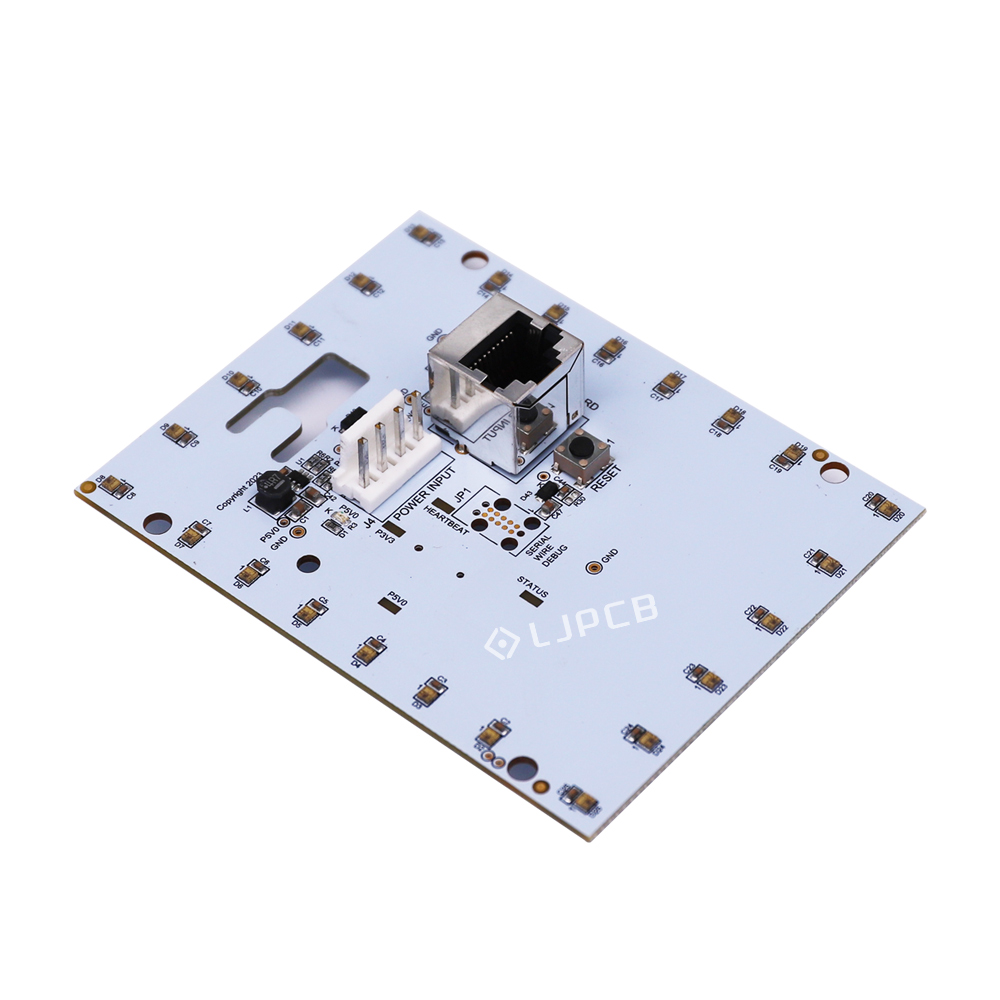

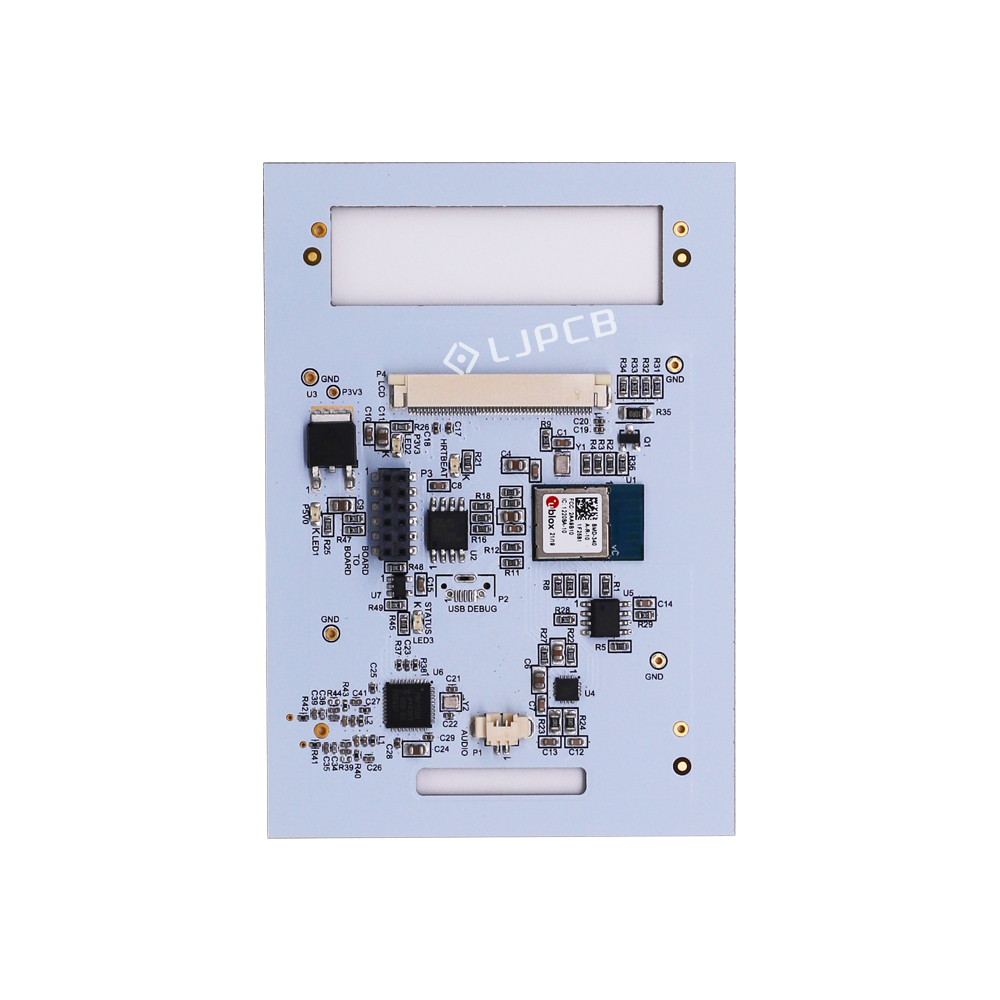

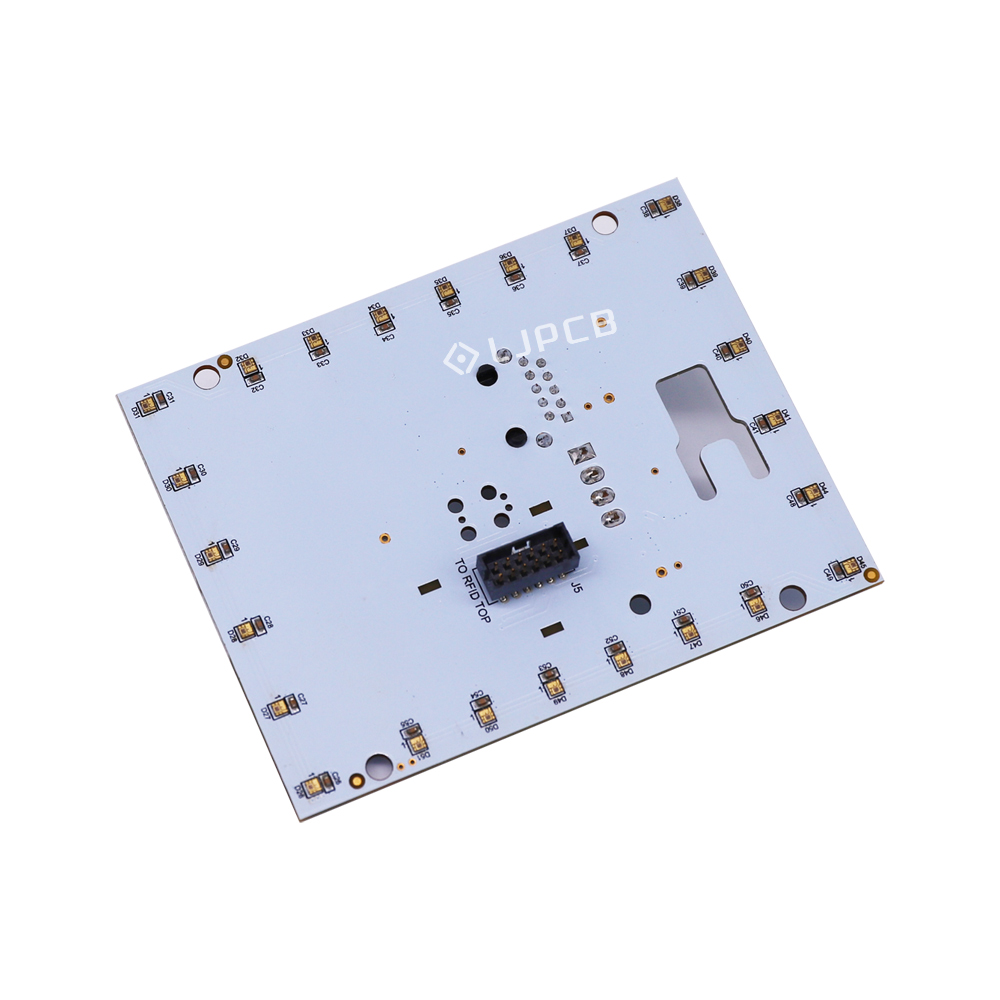

Description:  This Arcade Game RFID Reader Control Board is designed for RFID identification, communication, and status management in modern arcade gaming systems. Developed for Play Mechanix arcade equipment, the board integrates RFID-related circuitry, LED indicators, communication interfaces, power management, and debugging interfaces to support reliable interaction between player cards, RFID devices, and the main arcade game controller. It can be used for player identification, game access, cashless gaming, card-based functions, status indication, and data communication within arcade cabinets and amusement systems. The board is designed for stable operation in demanding commercial arcade environments. LJPCB provides one-stop PCB and PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, and turnkey PCBA solutions.

Layer	4L	Material Thickness	1.6mm
Surface Finishing	ENIG 2u	Finished Copper Thickness	1oz
Solder Mask	White	Legend Mark	black
Material	FR4-TG180	Test	Flying-Probe Test
Routed OutLine/Punching	CNC+V Cut	Quality Control	IPC-600G class II and IPC-6013B class II
