Description: This

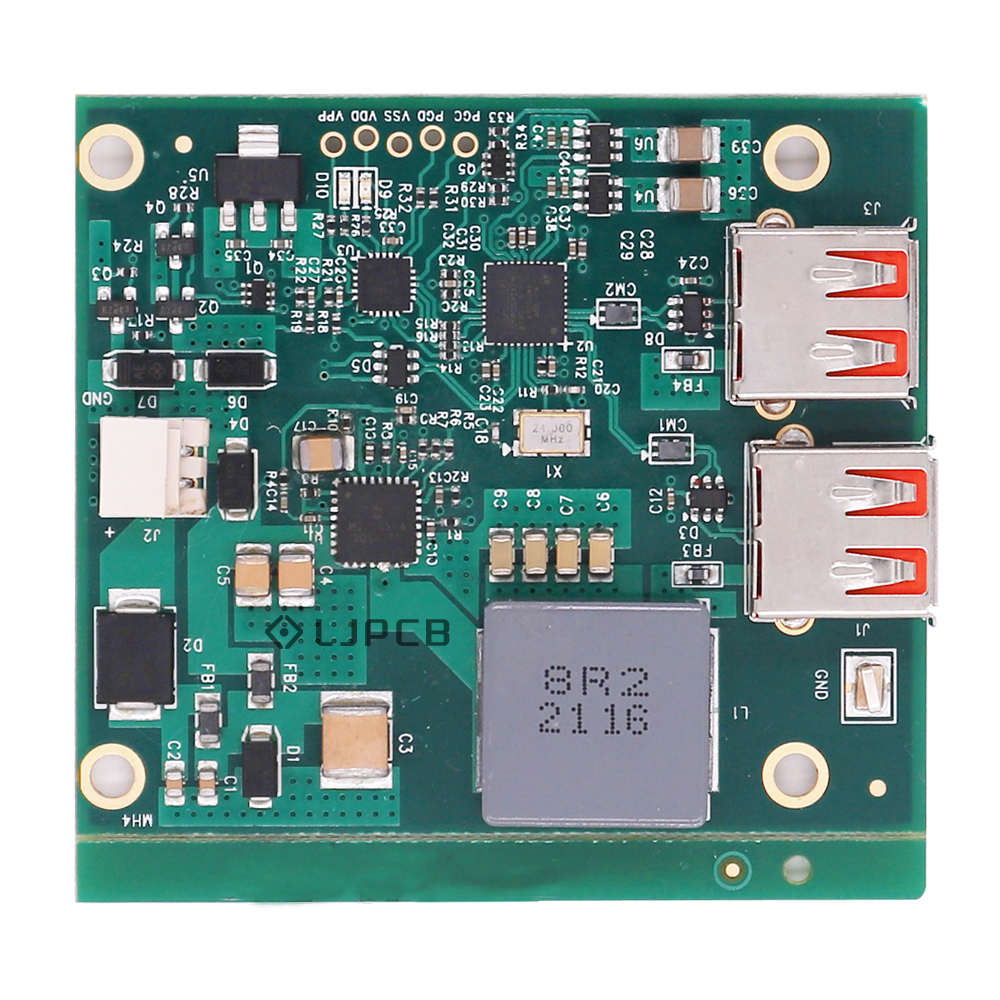

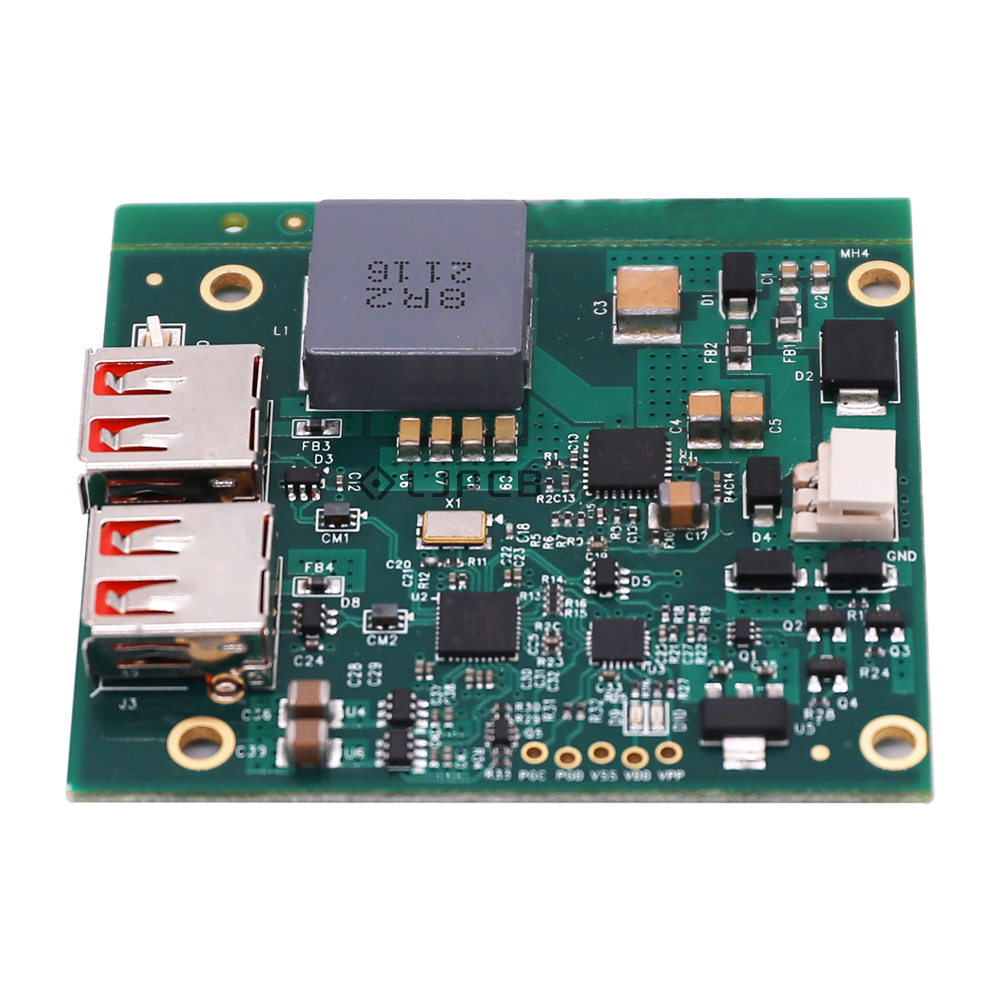

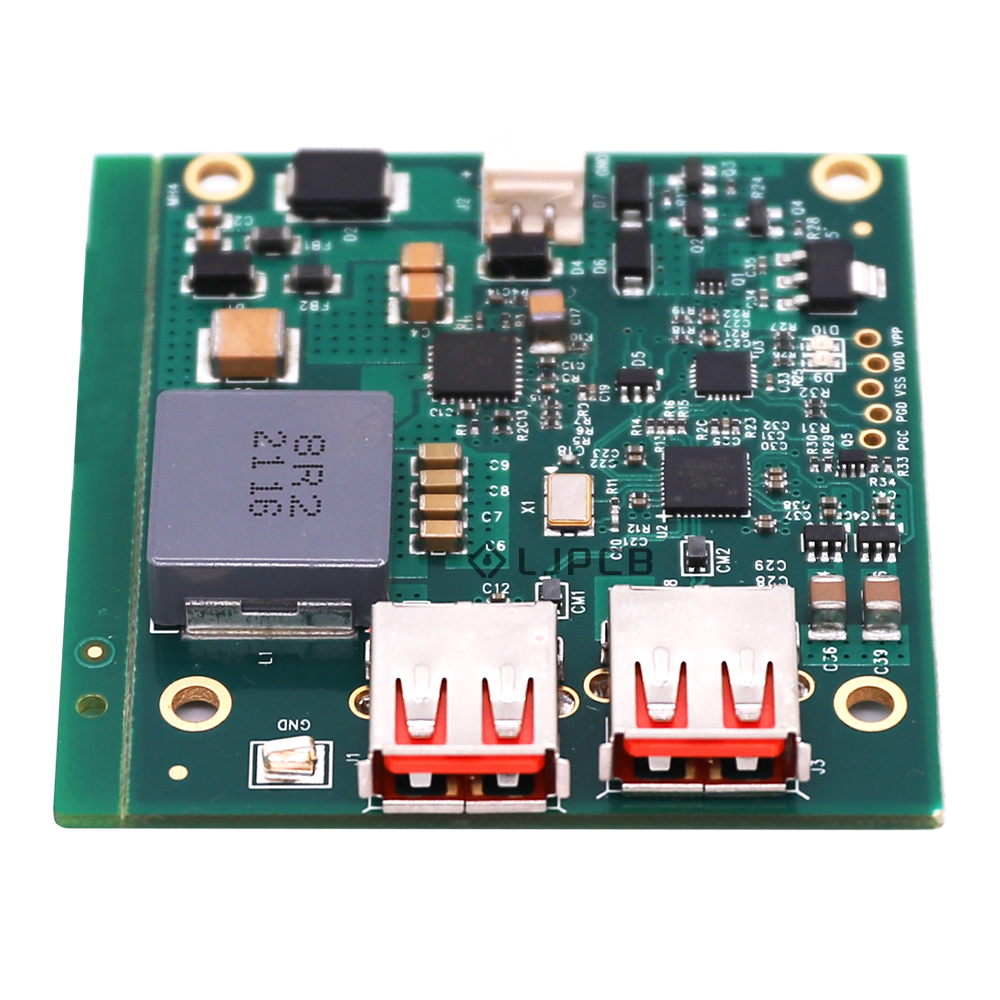

PCB assembly is designed for automotive display terminals and serves as the main control unit for vehicle display systems. It integrates power management, data processing, USB interfaces, communication functions, and display control circuits to support reliable operation in automotive electronic applications.LJPCB provides one-stop PCB and PCBA manufacturing services, including PCB fabrication, component sourcing, SMT assembly, functional testing, and turnkey electronics manufacturing solutions for automotive, industrial, and intelligent electronic devices.
| Layer | 4L | Material Thickness | 1.57mm |
|---|
| Surface Finishing | ENIG 1U" | Finished Copper Thickness | 1/1/1/1oz |
|---|
| Solder Mask | Green | Legend Mark | White |
|---|
| Special Item | Impedance Control with required stackup | Min Via | 0.38mm |
|---|
| Outer Min. Line/Track Space | 0.2/0.15mm | Inner Min. Line/Track Space | 0.2/0.2mm |
|---|
| Total Vias | 79783㎡ | | |
|---|
